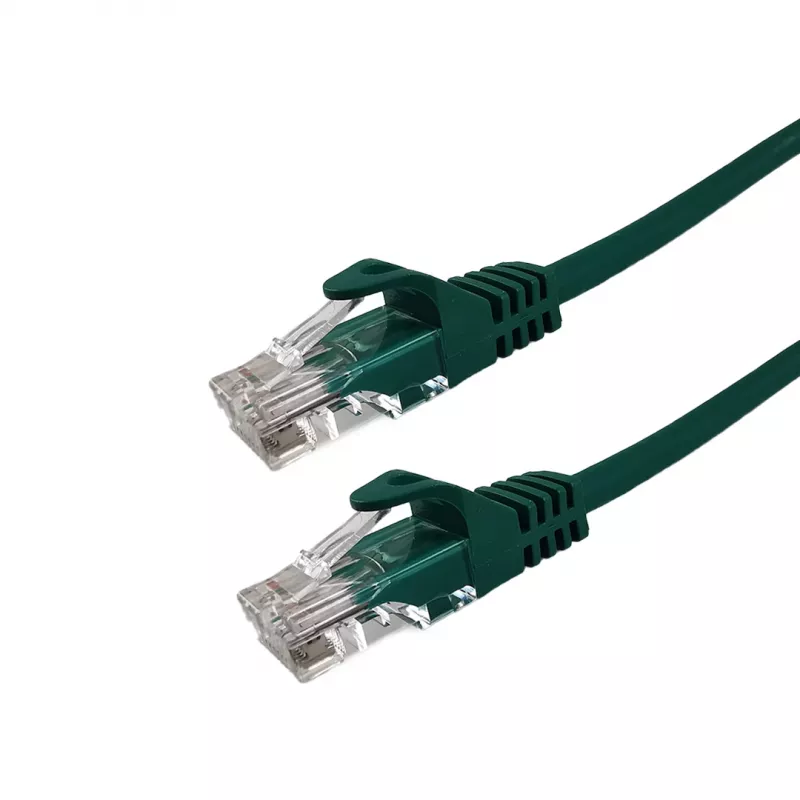

Grafenthal CAT6 U/UTP LSZH patchkabel 1,5m groen

The Grafenthal CAT6 U/UTP LSZH Patch Cable is a high-performance network cable designed for reliable Gigabit Ethernet connectivity. With a length of 1.5 meters and a vibrant green color, this cable is ideal for structured cabling in data centers, offices, and home networks. It features pure copper conductors and a low smoke zero halogen (LSZH) jacket, ensuring safety and compliance with fire standards.

Advantages

This patch cable offers excellent signal integrity and minimal crosstalk thanks to its U/UTP (unshielded twisted pair) design and 24 AWG stranded conductors. The gold-plated RJ45 connectors provide corrosion resistance and reliable contact. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for public and enclosed spaces.

Suitable for

• Connecting computers, switches, routers, and patch panels
• Gigabit Ethernet (1000BASE-T) networks
• LAN and Ethernet applications requiring CAT6 performance
• Environments where fire safety is critical (LSZH)

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: U/UTP (Unshielded)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 1.5 meters
• Color: Green
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Wiring Standard: TIA/EIA-568B
• Max Bandwidth: 250 MHz
• Data Transfer Rate: 1 Gbps
• Conductor Gauge: 24 AWG
• Construction: Stranded
• Number of Pairs: 4 Twisted Pairs
• Fire Safety Standard: IEC 60332-1
• Compliance: RoHS
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use this cable with CAT6-compatible devices and avoid sharp bends or kinks. Ensure proper cable management to maintain signal quality.
