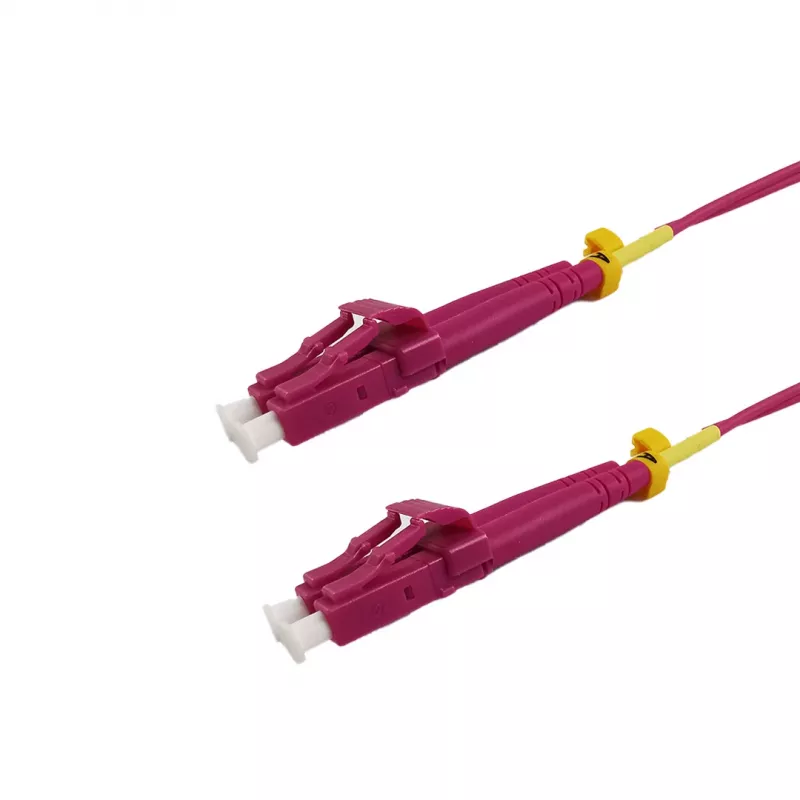

Grafenthal Glasvezelkabel OM4 LC/UPC-LC/UPC LSZH 1,00m Violet

The Grafenthal Optical Fibre Cable OM4 is a high-performance multimode patch cable designed for reliable data transmission in demanding network environments. Featuring LC/UPC connectors on both ends, a 1.00-meter length, and a violet LSZH jacket, this duplex cable ensures low insertion loss and high return loss, making it ideal for data centers, LANs, SANs, and FTTx applications.

Advantages

OM4 fibre provides superior bandwidth and distance support for 10 Gbps and 40 Gbps Ethernet, with a typical insertion loss of less than 0.3 dB and return loss greater than 30 dB. The LSZH jacket reduces toxic smoke and halogen emissions in case of fire, enhancing safety in confined spaces. The violet colour aids in easy identification and cable management.

Suitable for

• Data centers requiring high-speed interconnects
• Local Area Networks (LANs) with multimode fibre infrastructure
• Storage Area Networks (SANs) for reliable data transfer
• FTTx deployments for broadband access

Key specifications

• Cable Type: Optical Fibre Patch Cable
• Fibre Mode: Multimode
• Fibre Class: OM4
• Connector A: LC/UPC
• Connector B: LC/UPC
• Number of Fibres: 2 (Duplex)
• Cable Length: 1.0 meter
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Violet
• Core/Cladding Diameter: 50/125 µm
• Connector Polish: UPC
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 30 dB
• Attenuation at 850nm: ≤ 3.0 dB/km
• Attenuation at 1300nm: ≤ 1.0 dB/km
• Bandwidth (850nm OFL): 4700 MHz·km
• Bandwidth (1300nm OFL): 500 MHz·km
• Operating Temperature: -20°C to +70°C
• Standards Compliance: TIA/EIA-568-C.3, IEC 60793-2-10 Type A1a.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/UPC interfaces and supports 10 Gbps and 40 Gbps Ethernet applications.
