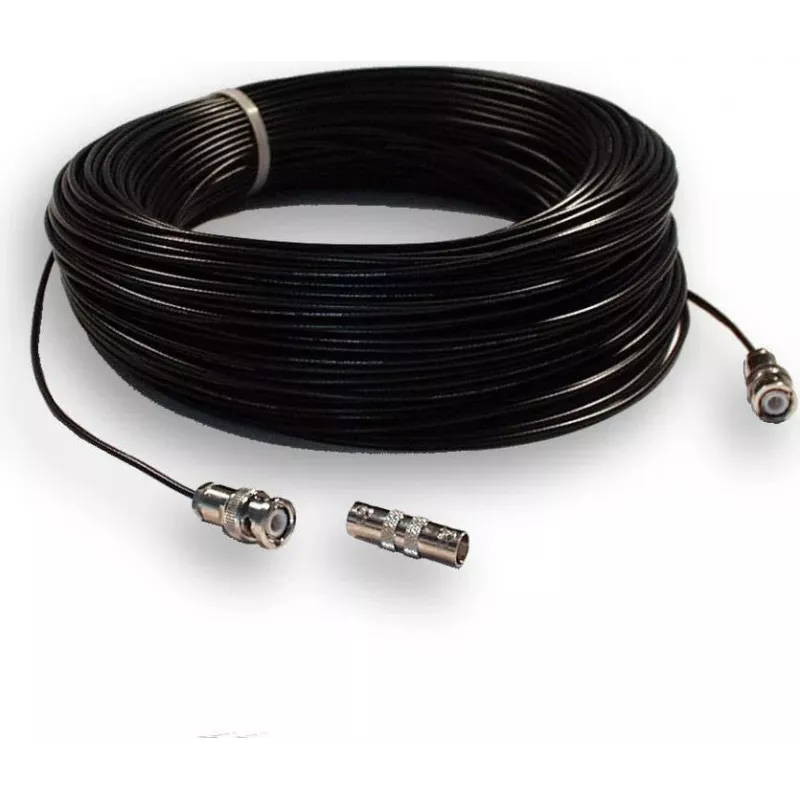

Güde 0134-10 coaxkabel 10 m BNC zwart

The Güde 0134-10 is a high-quality coaxial cable with BNC male connectors on both ends, designed for reliable signal transmission in test and measurement, RF, and video applications. With a length of 10 meters and 50 Ohm impedance, this RG-58 equivalent cable ensures minimal signal loss and excellent shielding performance.

Advantages

This cable offers superior signal integrity thanks to its copper conductor, braided shielding, and nickel-plated BNC connectors. The PVC jacket provides durability and flexibility, making it easy to route in tight spaces. Suitable for frequencies up to 1 GHz, it meets the demands of professional environments.

Suitable for

• Test and measurement equipment
• RF and radio communication systems
• Video surveillance and CCTV installations
• Laboratory and educational setups

Key specifications

• Cable length: 10 m
• Connector type: BNC male to BNC male
• Impedance: 50 Ohm
• Cable type: Coaxial, RG-58 equivalent
• Conductor material: Copper
• Shielding: Braided
• Jacket material: PVC
• Connector plating: Nickel
• Dielectric material: PE
• Outer diameter: Approx. 5 mm
• Max frequency: 1 GHz
• Operating temperature: -20°C to +70°C
• Voltage rating: 30V AC / 60V DC

Recommendations

For optimal performance, ensure connectors are properly tightened and avoid sharp bends. This cable is ideal for extending antenna connections or interconnecting RF devices.
