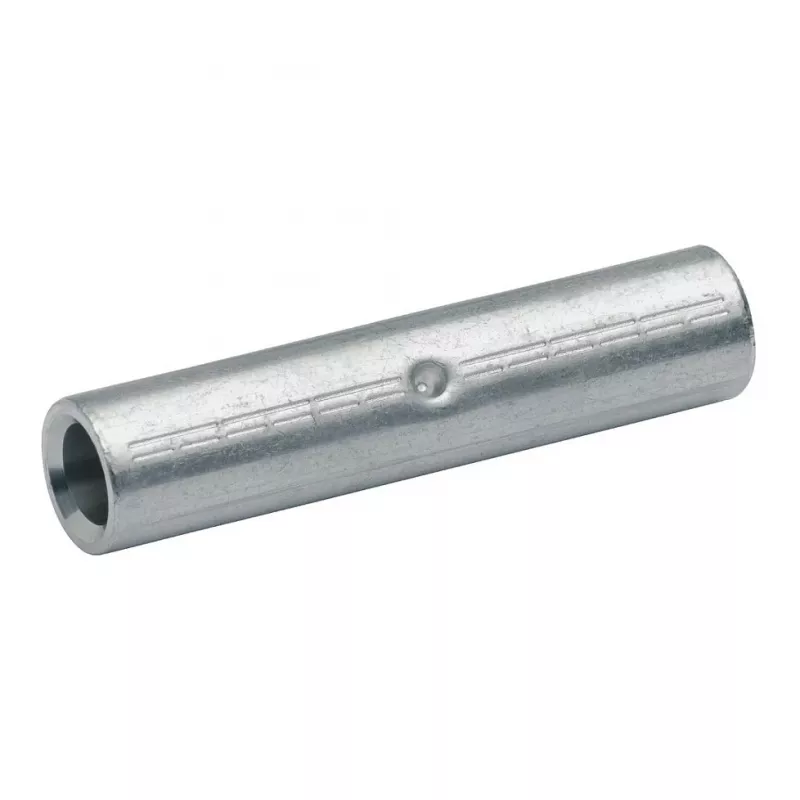

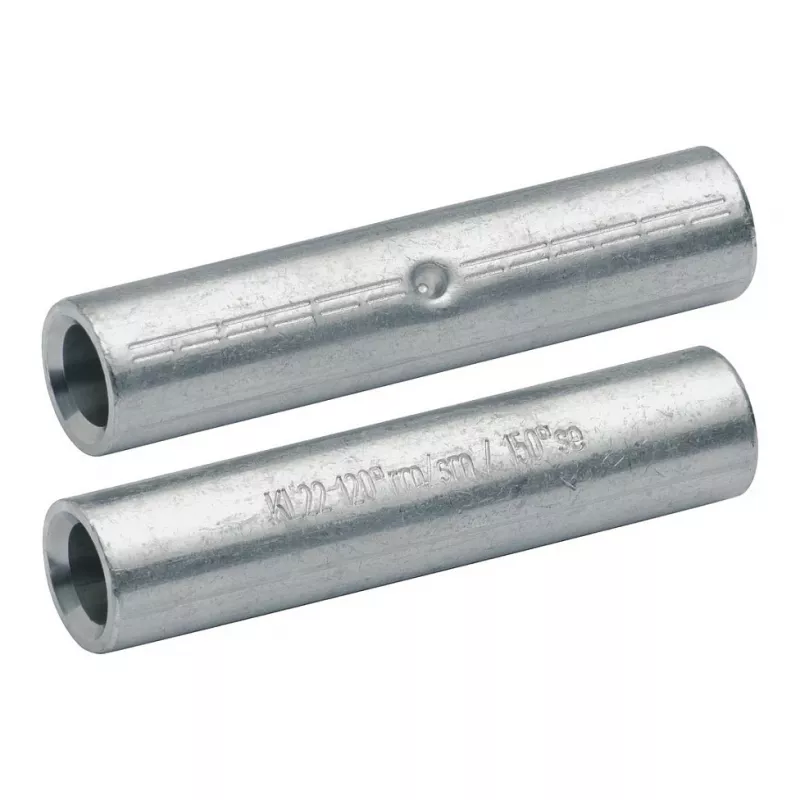

Klauke 228R aluminium persverbinder 95 mm² crimpverbinder

Aluminum compression joint for creating secure, low-resistance connections on 95 mm² aluminum conductors. Its internal ridge design (Kerbverbinder) ensures a gas-tight crimp, making it ideal for power distribution and industrial wiring up to 1 kV.

Advantages

Precision-formed from electrolytic aluminum (E-Al) for excellent conductivity and corrosion resistance. The 3-crimp-per-side pattern provides high pull-out strength and vibration resistance, while the blank surface allows direct contact without additional plating. Compatible with round stranded (rm), sector stranded (sm), and sector solid (se) conductors per DIN EN 60228.

Suitable for

• Aluminum cable connections in low-voltage networks
• Industrial power distribution and switchgear
• Building installation with aluminum conductors
• Utilities and renewable energy systems

Key specifications

• Connector type: Compression joint (crimp)
• Material: Electrolytic aluminum (E-Al)
• Nominal cross-section: 95 mm²
• Conductor types: rm, sm, se
• Voltage rating: up to 1 kV
• Number of crimps per side: 3

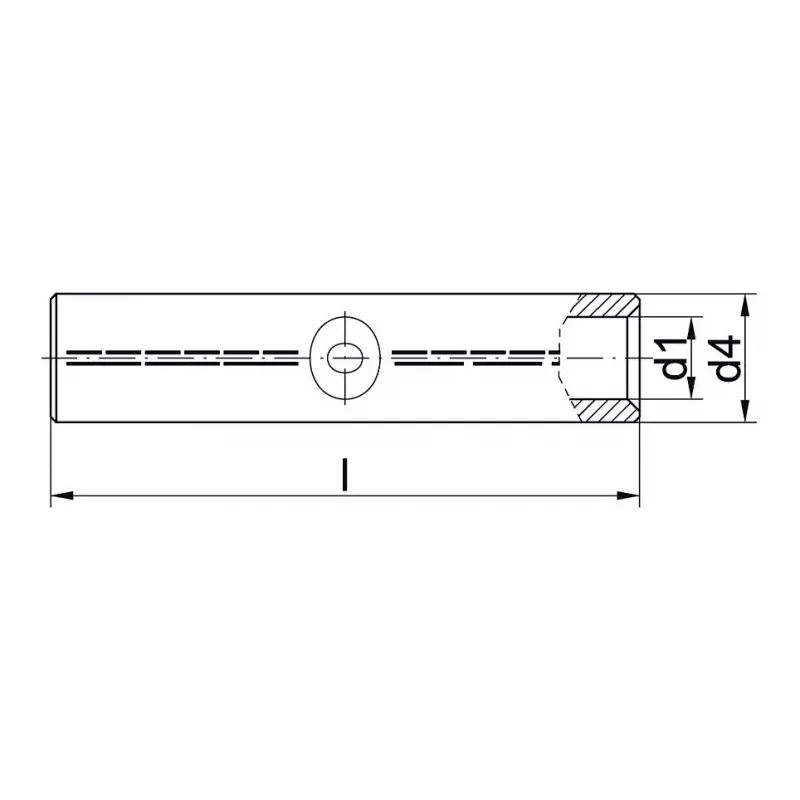

• Overall length: 100 mm
• Outer diameter: 21.5 mm
• Inner diameter: 14.5 mm
• Standard: DIN EN 60228

Recommendations

Use with Klauke hydraulic crimping tools and appropriate dies for reliable, code-compliant connections. Always follow manufacturer crimping instructions and verify conductor preparation.
