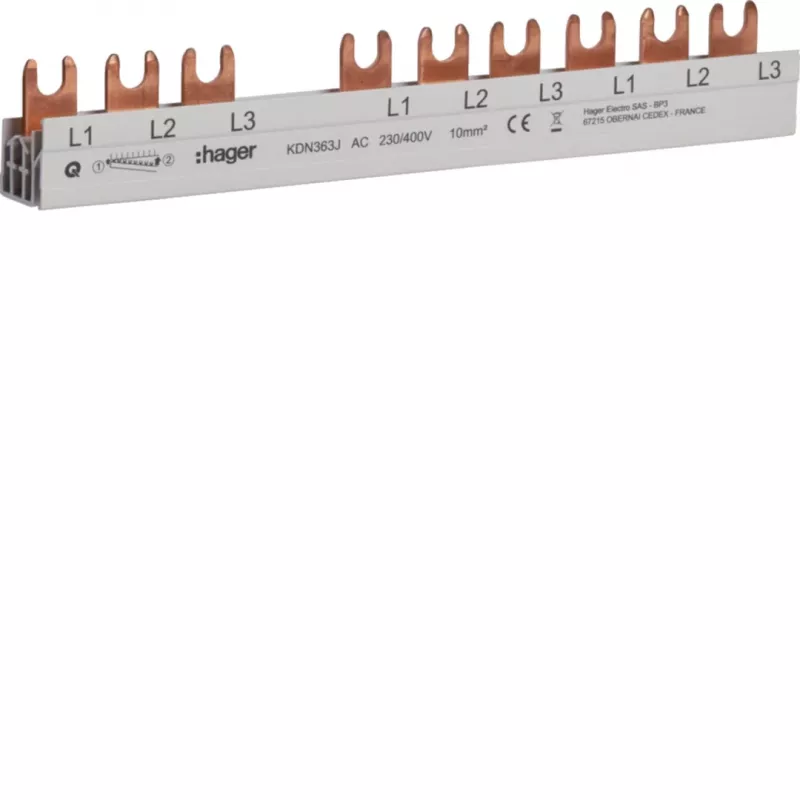

Hager KDN363J 3-polige faseverzamelrail met vorkaansluiting 10mm² 63A 10 modules

The Hager KDN363J is a high-quality 3-pole phase busbar designed for modular electrical distribution systems. It features fork-type connections, a conductor cross-section of 10 mm², and a rated current of 63 A, making it ideal for use in distribution boards and industrial control panels. This busbar is fully insulated for safety and complies with EN 61439-1/2 standards.

Advantages

Reliable and robust construction ensures long-lasting performance. The fork connection allows for quick and secure wiring, reducing installation time. Fully insulated design minimizes the risk of accidental contact. Suitable for a wide range of modular devices with 17.5 mm pitch.

Suitable for

• Distribution boards and sub-distribution boards
• Industrial control panels
• Commercial and residential electrical installations
• Modular DIN rail mounted devices

Key specifications

• Product Type: Phase Busbar
• Number of Poles: 3-pole
• Connection Type: Fork (Gabelanschluss)
• Conductor Cross-section: 10 mm²
• Rated Current (In): 63 A
• Number of Modules: 10
• Rated Operational Voltage (Ue): 400 V AC
• Insulation: Fully insulated
• Conductor Material: Copper
• Insulation Material: Plastic
• Module Spacing (Pitch): 17.5 mm
• Mounting: For DIN rail modular devices
• Degree of Protection (IP): IP20 (when installed in an enclosure)
• Operating Temperature Range: -25 to +70 °C
• Standards: Complies with EN 61439-1/2
• Color: Grey
• Length: 178 mm

Recommendations

For optimal performance, ensure that the busbar is installed in a suitable enclosure and that all connections are tightened to the manufacturer's specifications. Always follow local electrical codes and regulations.
