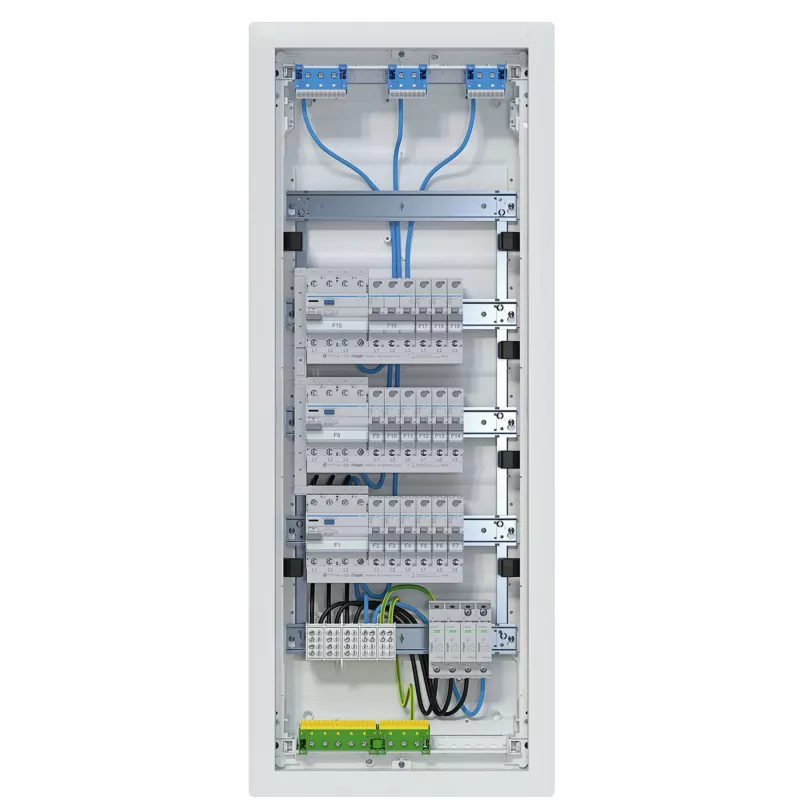

Hager Volta VU60BV1 inbouwverdeler 5x12PLE 3x RCD-kringen 60 modules IP31 wit

The Hager Volta VU60BV1 is a high-quality flush-mounted distribution board designed for residential and light commercial applications. With 5 rows of 12 PLE modules each, it offers a total capacity of 60 modules and supports up to 3 RCD circuits. The enclosure is made of durable plastic with a steel door in white (RAL 9010), providing IP31 protection. This unit includes N and PE terminal blocks and complies with DIN VDE 0603-1 and DIN 43871 standards.

Advantages

Easy installation with reversible door hinge (left/right). Compact design saves space while offering ample module capacity. Double insulated (protection class II) for enhanced safety. Suitable for 400 V AC systems with a rated current of 63 A.

Suitable for

• Residential electrical distribution
• Light commercial buildings
• Flush-mounted installations

Key specifications

• Mounting Type: Flush-mounted (UP)
• Number of Rows: 5
• Modules per Row (PLE): 12
• Total Modules (PLE): 60
• RCD Circuit Capacity: 3
• Degree of Protection: IP31 (with door)
• Protection Class: II (double insulated)
• Enclosure Material: Plastic
• Door Material: Steel
• Door Color: White (RAL 9010)
• Door Hinge: Reversible (left/right)
• Rated Voltage: 400 V AC
• Rated Current: 63 A
• Installation Depth: 90 mm
• Terminal Blocks: N and PE terminals included
• Standards: DIN VDE 0603-1, DIN 43871
• Product Line: Hager Volta

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This distribution board is ideal for new constructions or renovations requiring a reliable and expandable electrical system.
