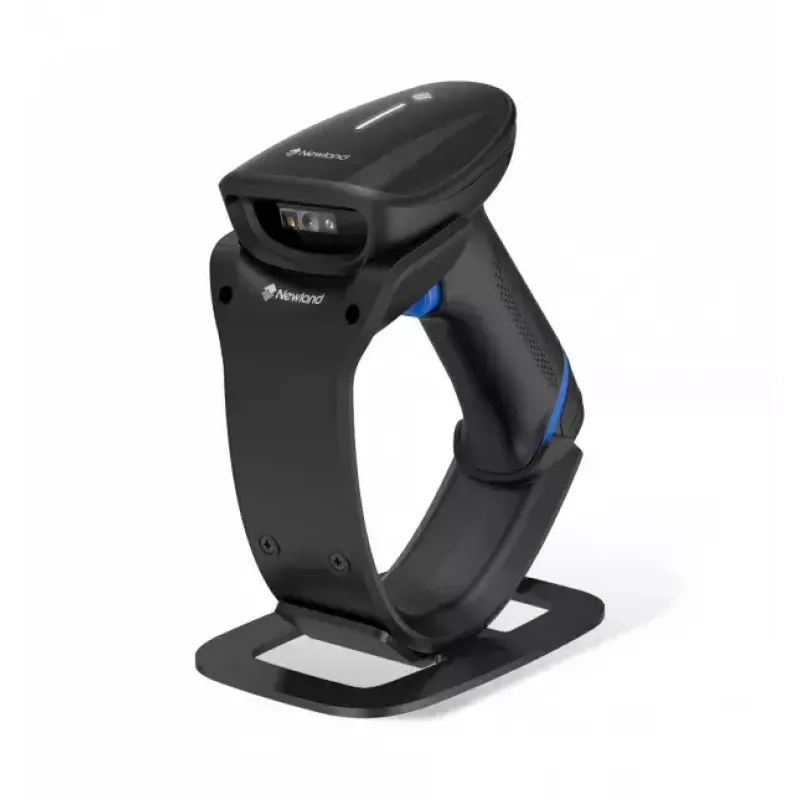

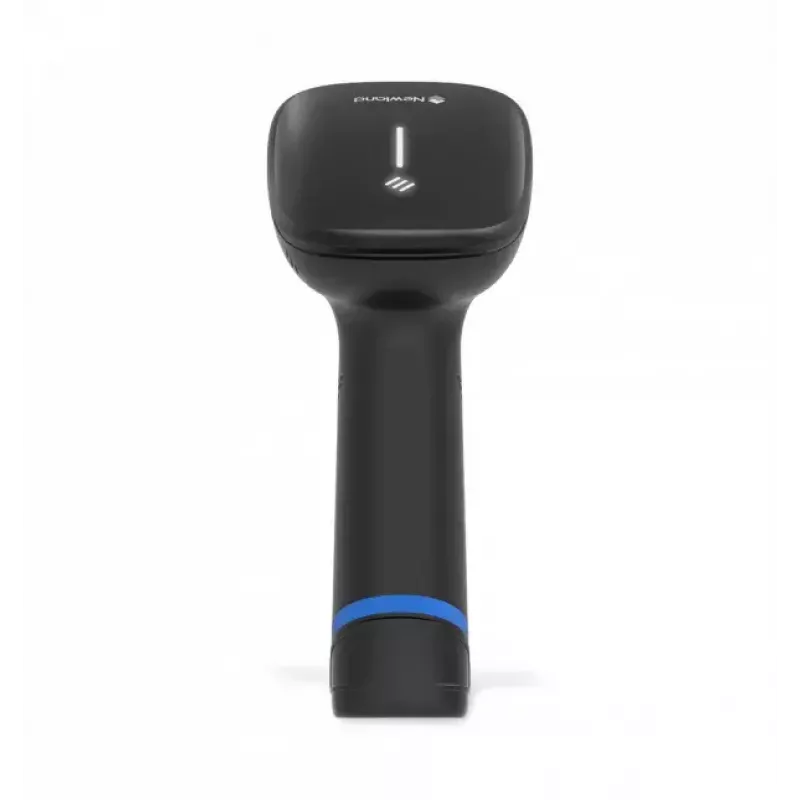

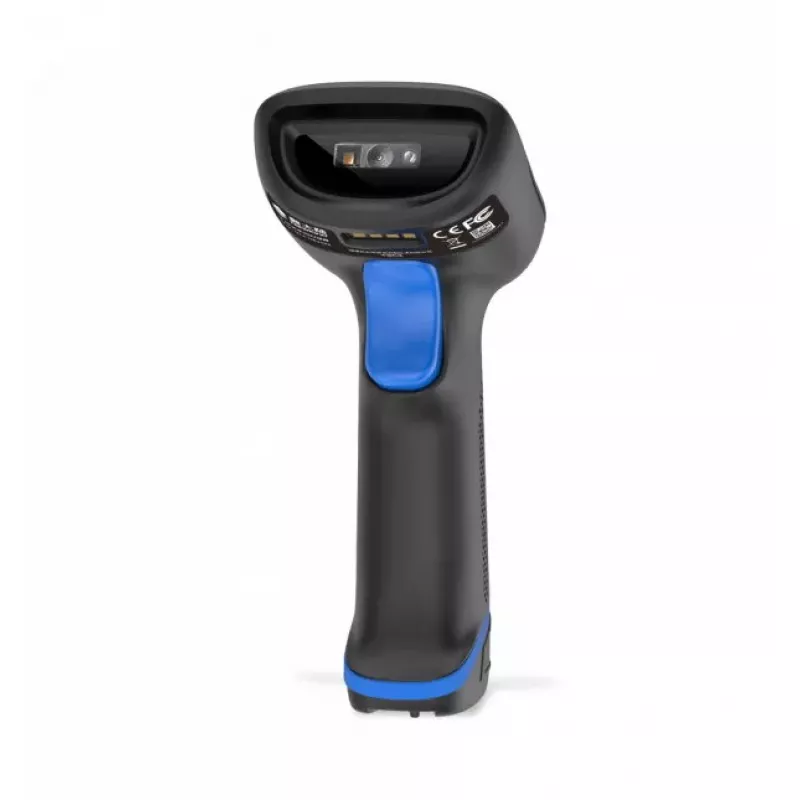

Handbarcodelezer Newland HR22 Dorada II 1D/2D draadloos zwart

The Newland HR23 Dorada Bluetooth is a handheld 1D/2D barcode reader that delivers 2D scanning performance at an entry-level price. Designed for intensive handheld use, it combines Newland’s decoding technology with an ergonomic, lightweight housing to capture high-density, damaged, vague, and distorted barcodes quickly. The device supports Bluetooth wireless communication, multiple data modes, and offers rugged protection suitable for many work environments.

Advantages

The HR23 Dorada features a removable battery that enables continuous operation and faster battery swaps, plus an improved charging contact design that extends battery lifecycle. Bluetooth 5.0 increases wireless range up to 100 meters in open spaces and supports synchronous, asynchronous, and batch communication modes. With an IP52 rating and ability to survive a 1.5 m drop onto concrete, the scanner is built for reliable daily use. Advanced Newland decoding handles a wide range of 1D and 2D barcodes with a field of view covering both horizontal and vertical orientations.

Suitable for

• Retail point-of-sale and stock control
• Warehouse picking and inventory management
• Logistics and shipping operations
• Light industrial environments requiring portable barcode capture

Key specifications

• Scanner type: 1D/2D
• Sensor type: CMOS
• Connectivity: Bluetooth 5.0 (wireless), range up to 100 m (open space)
• Battery: removable lithium-ion, up to 12 hours continuous use (typical)
• Protection: IP52
• Drop resistance: 1.5 m onto concrete
• Supported 1D codes: GS1 Databar, Code 11, Code 128, Code 39, EAN-13, EAN-8, UPC-A, UPC-E, ISBN, ISSN, ITF-14, ITF-6, Interleaved 2 of 5, Matrix 2 of 5, Plessey, Codabar
• Supported 2D codes: QR Code, Data Matrix, PDF417, Micro QR Code, MicroPDF417, Aztec Code
• Weight: 0.209 kg
• Colour: Black

How to use

Power on the HR23 Dorada and pair it with a host device over Bluetooth 5.0 following the pairing procedure. Aim the scanner at the barcode so the code is within the imager’s field of view and pull the trigger to capture the barcode. Configure communication mode (synchronous, asynchronous, or batch) according to your workflow. Use the removable battery to swap power packs without interrupting operations and place the scanner on the charging cradle or contact points when recharging is required.

Recommendations

For reliable scanning results, keep the imager window clean and ensure barcodes are within the device’s field of view. Use EasySet software to create and save configuration profiles for consistent deployment across multiple HR23 Dorada scanners.
