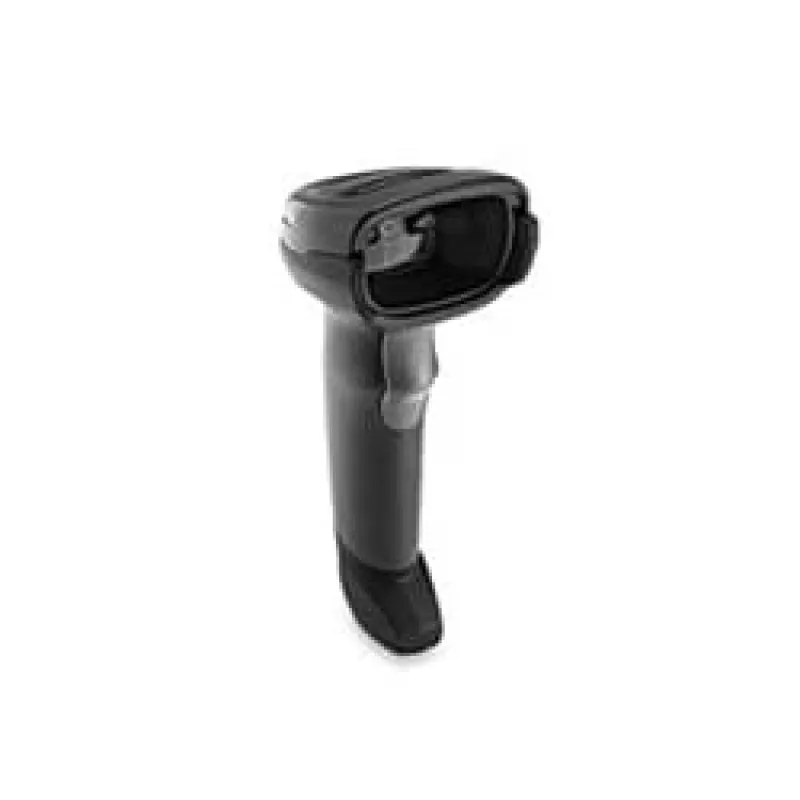

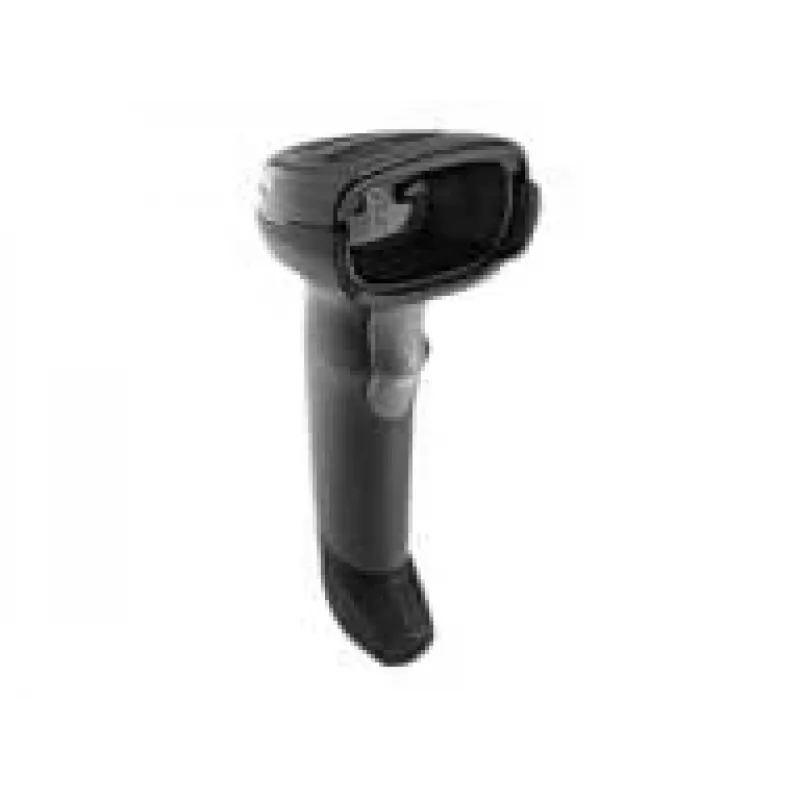

Handmatige barcodescanner Zebra DS2278

The Zebra DS2278 is a handheld 1D/2D barcode reader that supports both wired and wireless connectivity. Designed for point-of-sale and general scanning tasks, the DS2278 uses LED sensor technology, delivers reliable omni-directional scanning and is available as a cordless model with a long-lasting 2400 mAh Lithium‑Ion battery. With an IP42 rating and a lightweight 214 g body, it suits retail and other environments where quick, accurate barcode capture is required.

Advantages

The DS2278 combines affordability with comprehensive 1D and 2D decoding capabilities, enabling capture of printed and electronic barcodes, coupons and loyalty cards without slowing checkout. It offers easy deployment with auto-host detect cables and pre-configured settings, simplified management via no-cost tools and an intuitive setup utility (123Scan). The cordless model provides up to 14 hours guaranteed power, Bluetooth pairing, Wi‑Fi Friendly Mode to avoid WLAN interference and a battery likely to last the scanner’s lifecycle.

Suitable for

• Retail point-of-sale barcode scanning (1D and 2D codes)
• Coupon and loyalty card redemption
• Inventory and stock management where handheld scanning is needed
• Environments requiring easy deployment and low IT overhead

Key specifications

• Scanner type: 1D/2D imager
• Sensor type: LED
• Connectivity: Wired & Wireless (Bluetooth, USB)
• Battery: 2400 mAh Lithium‑Ion (cordless DS2278)
• Weight: 0.214 kg
• Ingress protection: IP42
• Supported 1D codes: U.P.C., Plessey, Interleaved 2 of 5, EAN-13, Code 93, Codabar, Code 11, Code 128, Code 39
• Supported 2D codes: Han Xin, Data Matrix, Composite Codes, Aztec Code, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
• Colour: Black
• Manufacturer part number (MPN): DS2278-SR00007ZZWW

How to use

Out of the box the DS2278 is pre-configured for common POS interfaces; connect the scanner to your system using the supplied cable and the auto-host detect feature will identify the interface automatically. For the cordless model, pair via Bluetooth following the on-screen instructions or the quick-start guide. To change settings, use Zebra’s 123Scan utility to generate a single programming barcode and scan it with the device to apply custom configurations. Aim the scanner at the barcode and press the trigger (or use point-and-shoot on models configured for auto-sensing) to capture the code.

Recommendations

Use the DS2278 in a standard retail checkout or inventory environment; maintain a clear line of sight between scanner and barcode for best performance, keep the scanner firmware up to date via Zebra tools and charge the cordless unit regularly to ensure the advertised battery availability.
