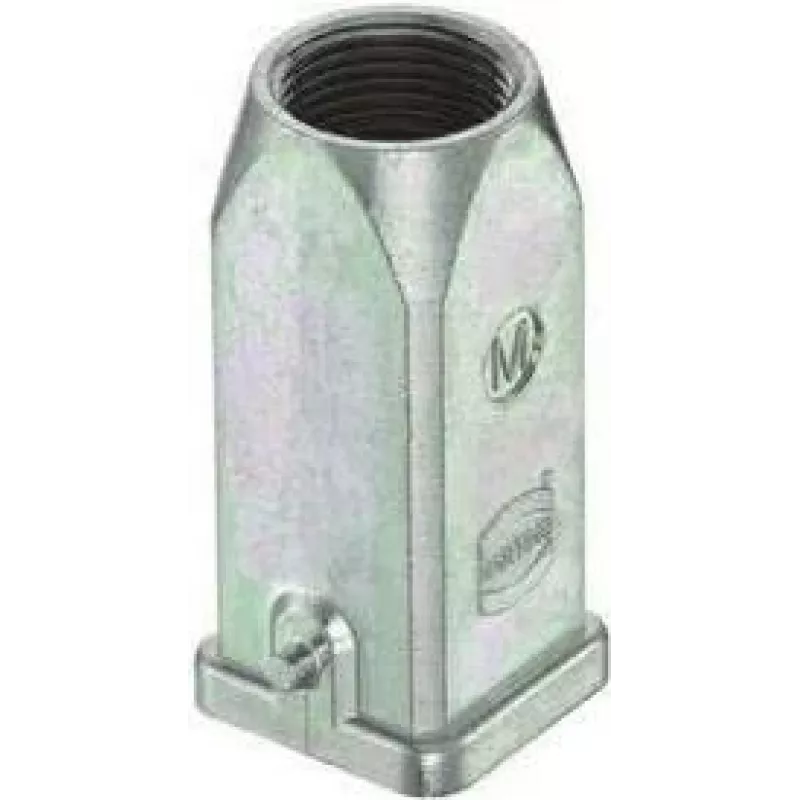

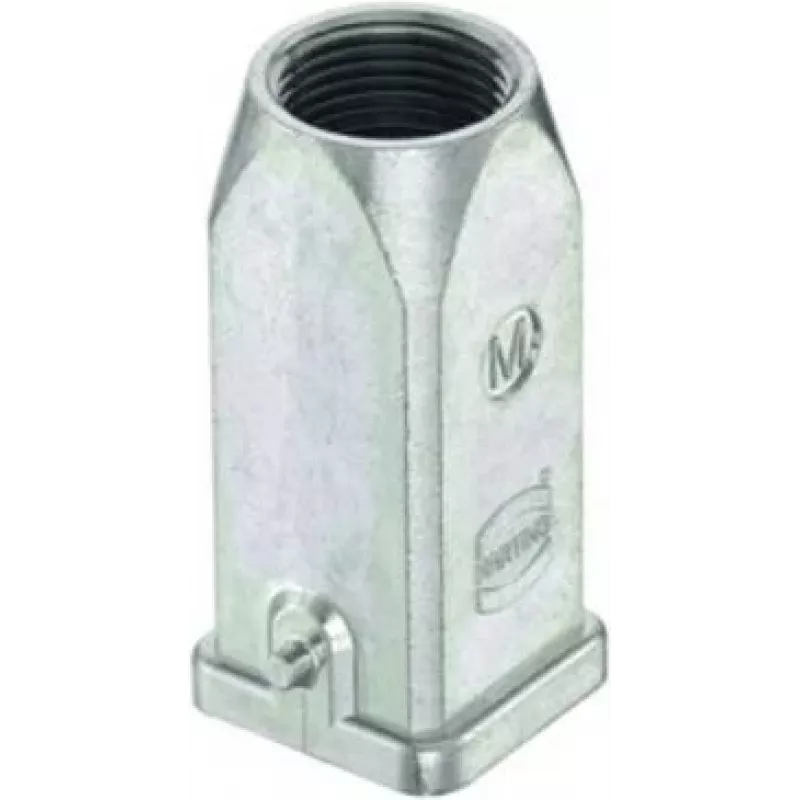

HARTING Han 3EMC tulebehuizing, kabelinvoer boven, 2 nokken, M20 (19620031440)

Unlike generic hoods that merely cover a connector, the HARTING Han 6B hood with top entry and M20 straight cable outlet is engineered for seamless compatibility with Han 6B inserts and bases, ensuring a secure and durable connection in demanding industrial environments. Its robust die-cast aluminium construction and powder-coated RAL 7037 dusty grey finish deliver reliable protection against mechanical stress and corrosion.

Highlights

• Straight cable outlet with M20 thread for standard cable glands
• Top entry design for convenient cable routing
• Die-cast aluminium housing with powder-coated surface for corrosion resistance
• IP65/IP67 protection when mated, suitable for harsh conditions
• Wide operating temperature range from -40 °C to +125 °C
• UL and CSA approved, RoHS compliant

In daily use

This hood is ideal for industrial machinery, control cabinets, and automation systems where space is limited and reliability is paramount. The straight cable outlet allows for clean, direct cable management, while the top entry orientation simplifies installation in tight enclosures. The M20 thread accommodates standard cable glands, providing strain relief and additional sealing. The powder-coated aluminium body withstands mechanical stress and environmental factors, ensuring long-term performance.

Full specifications

• Connector Series: Han B
• Housing Type: Hood
• Size: 6B
• Cable Entry Direction: Straight
• Cable Entry Position: Top Entry
• Number of Cable Entries: 1
• Cable Entry Thread Size: M20
• Housing Material: Die-cast aluminium
• Surface Treatment: Powder-coated
• Colour: RAL 7037 (Dusty Grey)
• Protection Degree (mated): IP65 / IP67
• Operating Temperature: -40 °C to +125 °C
• Compatibility: Han 6B inserts and bases
• RoHS Compliance: Yes
• Approvals: UL, CSA
• Gland Compatibility: M20 cable glands

Final note

With its robust build and precise engineering, the HARTING Han 6B hood is a dependable choice for industrial connectivity, ensuring long-term performance even in challenging conditions.
