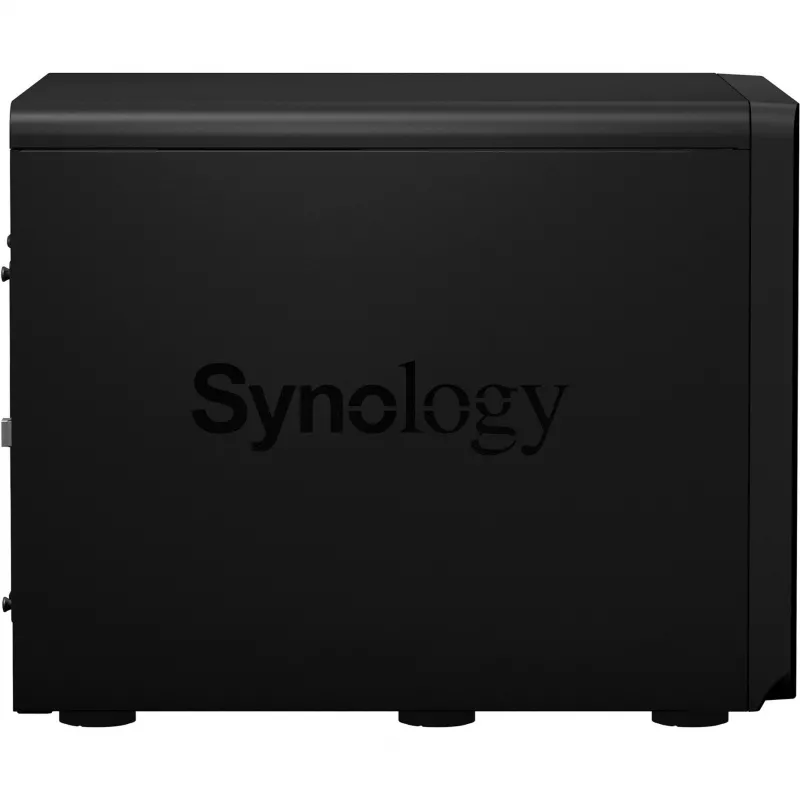

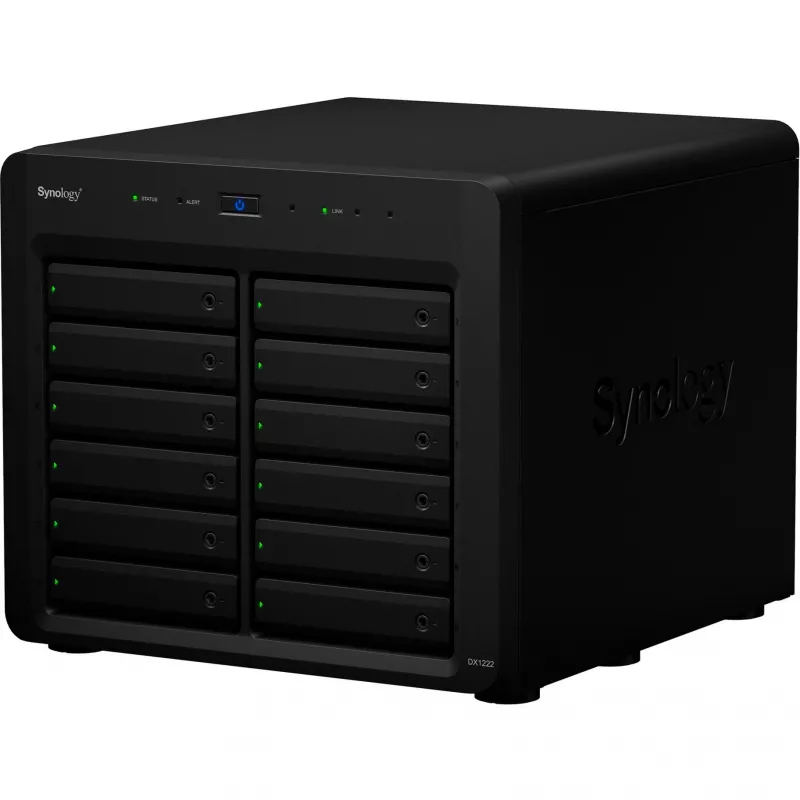

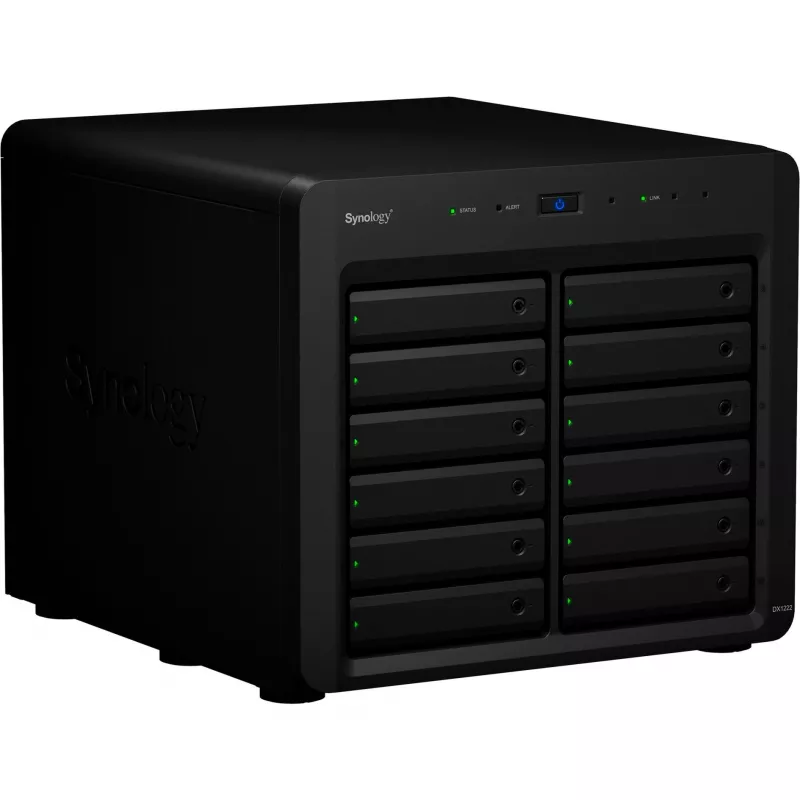

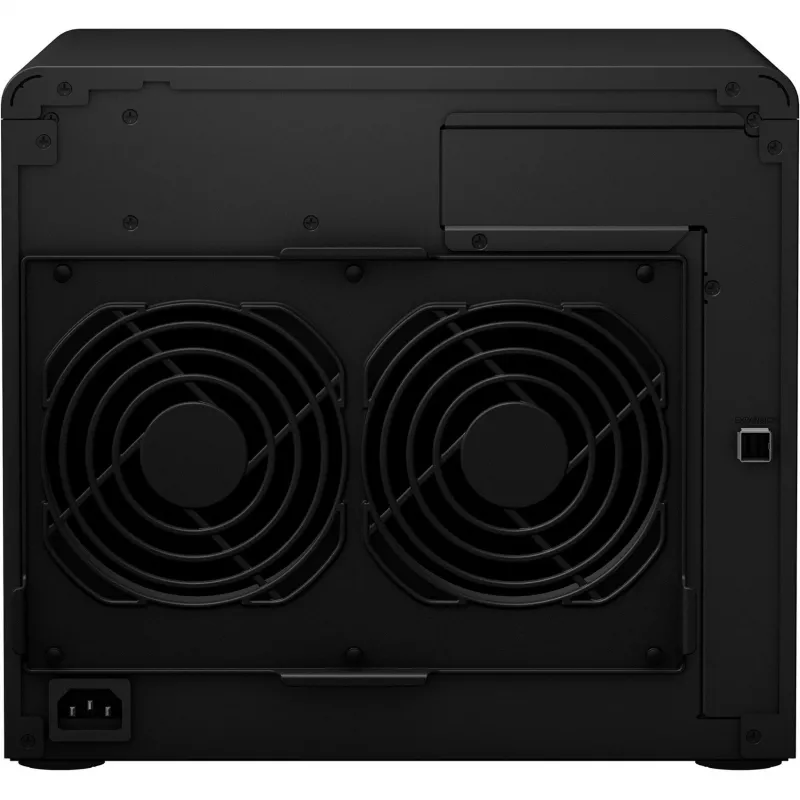

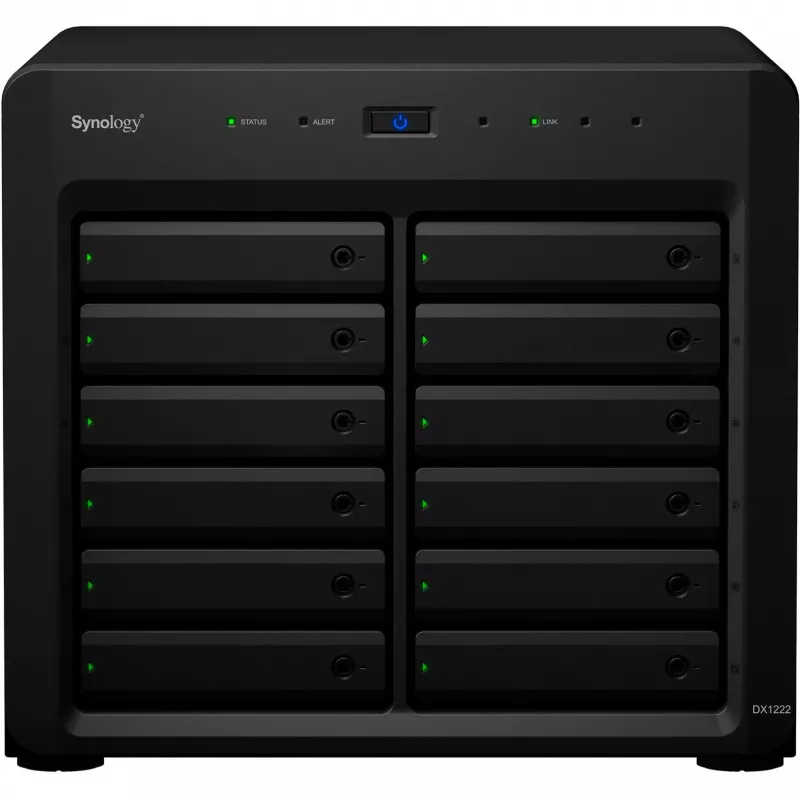

HDD/SSD-behuizing Synology DX1222 12 drives 192 TB zwart

The Synology DX1222 is an HDD/SSD expansion enclosure that adds 12 bays to your DiskStation, supporting up to 192 TB of additional capacity. Compatible with 2.5" and 3.5" drives and featuring hot-swap capability, the DX1222 connects to a host NAS to extend storage without taking services offline.

Advantages

Online volume expansion lets you create new volumes or expand existing RAID volumes from DiskStation Manager (DSM) without reformatting drives. The enclosure supports fast setup — additional storage becomes available shortly after connecting to the host NAS. Using Synology drives with the DX1222 helps maintain reliability and performance. Centralized drive management in DSM enables monitoring, maintenance, and administration of drives across both the expansion unit and the primary NAS.

Suitable for

• Businesses and home offices that need to expand storage capacity without downtime
• Environments using mixed 2.5" and 3.5" SATA drives
• Setups that require hot-swappable drive replacement and centralized drive management

Key specifications

• Drive bays: 12
• Maximum additional capacity: 192 TB
• Supported drive sizes: 2.5" and 3.5"
• Supported interfaces: SATA III / SATA II / SATA
• Hot-swap support: Yes
• Colour: Black
• Weight: 9.02 kg

How to use

Connect the DX1222 to a compatible Synology DiskStation using the recommended expansion cable and power on both units. In DiskStation Manager (DSM), navigate to Storage Manager to perform online volume expansion or create a new volume on the connected bays. Install drives into the DX1222 bays and replace or add drives as needed; hot-swap support allows drive changes without shutting down the enclosure when supported by your NAS and RAID configuration.

Recommendations

For optimal reliability and performance, use Synology-certified HDDs or SSDs and follow Synology's compatibility list. Ensure the host NAS firmware and DSM are up to date before expanding storage, and perform regular backups when modifying RAID configurations or expanding volumes.
