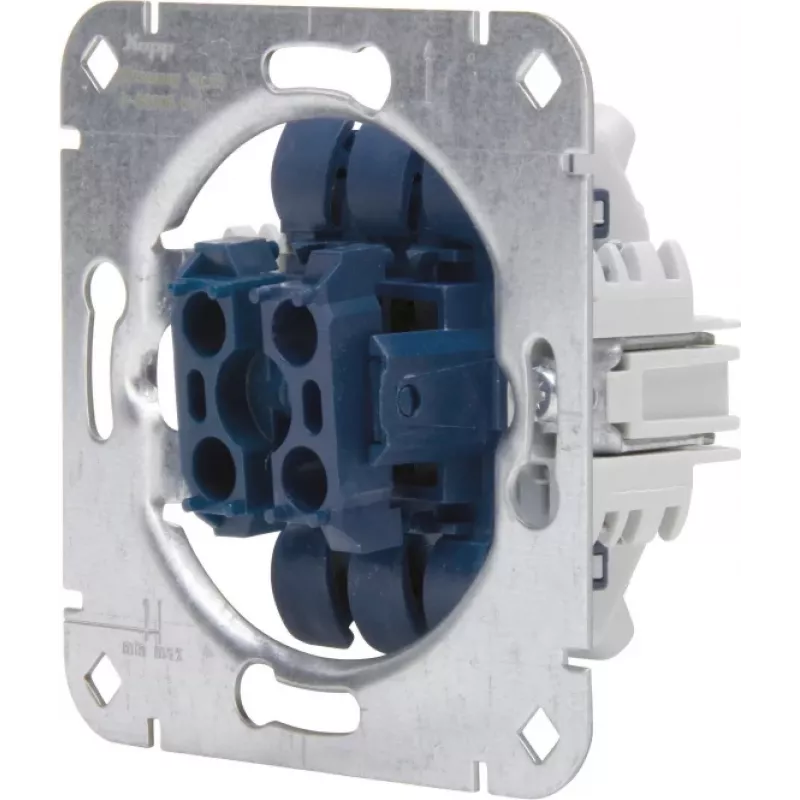

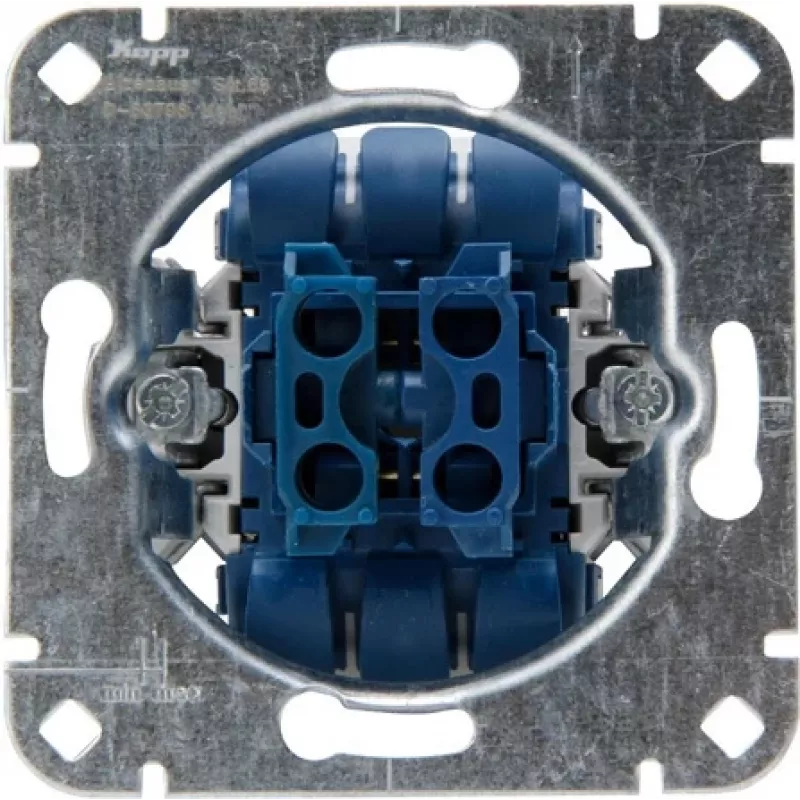

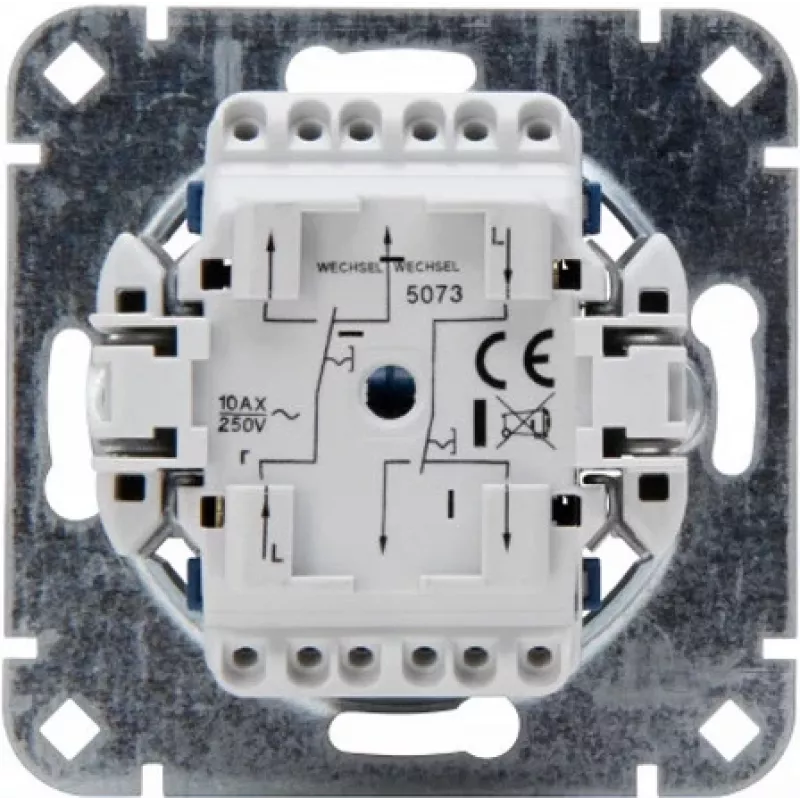

HEINRICH KOPP 507300001 inbouw-wisselschakelaar/wisselschakelaar-inzet, 250V, 10AX, aluminium

This switch insert solves the need for a reliable electrical switching mechanism in flush-mounted installations. It provides the core switching function for a two-way or intermediate circuit, ready to be combined with a compatible rocker and cover frame from the KOPP standard switch range.

Who is it for

Electricians and installers who require a dependable, VDE-certified switch insert for residential or commercial dry indoor environments. It is suitable for modular switch systems where the visible cover and rocker are selected separately to match the room design.

Main features

• Supports both two-way and intermediate switching configurations
• Rated for 250 V AC, 10 A resistive and 10 AX inductive loads
• Flush-mounted installation with screw terminals for secure wiring
• Halogen-free thermoplastic housing for durability and safety
• Compatible with KOPP standard switch programs (rocker and frame sold separately)

Specifications

• Product type: Switch insert
• Switch function: 2-way / intermediate switch
• Mounting type: Flush-mounted (Unterputz)
• Rated voltage: 250 V AC
• Rated current (resistive load): 10 A
• Rated current (inductive load): 10 AX
• Ingress protection: IP20
• Connection type: Screw terminals
• Number of terminals: 4
• Material (housing): High-quality thermoplastic
• Operating temperature range: -5°C to +40°C
• Halogen-free: Yes
• Certification: VDE, CE
• Switching principle: Rocker mechanism
• Mounting depth: Approx. 22 mm
• Suitable for: Dry indoor environments
• Design: Modular system component

Tips

Ensure the installation is carried out by a qualified electrician. The switch insert is designed for use with KOPP standard switch covers and rockers, which are available separately.
