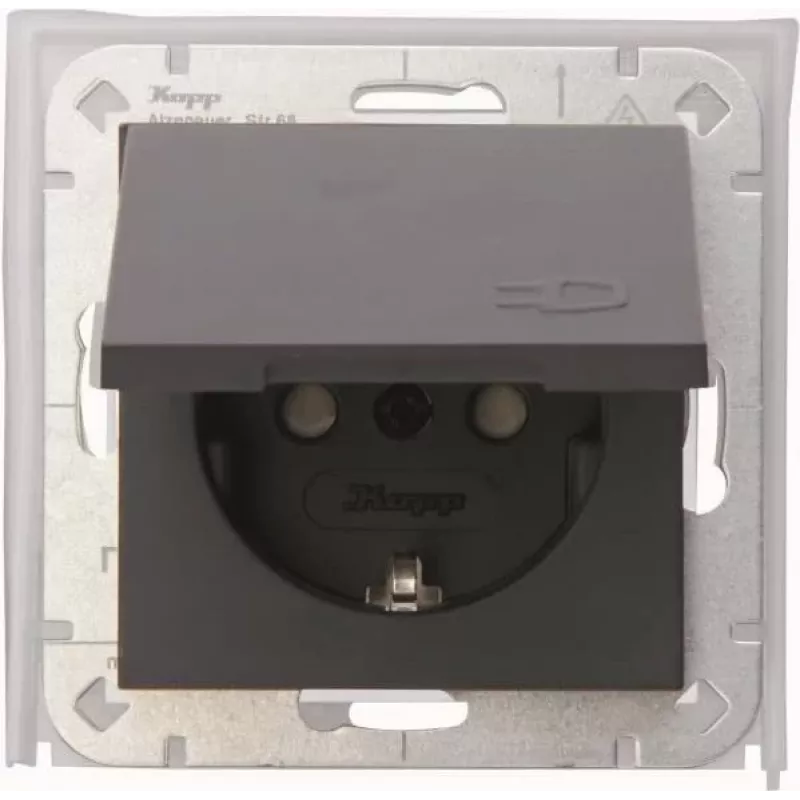

HEINRICH KOPP contactdoosinzetstuk met randaarde antraciet 954015008

Schuko socket insert with increased touch protection, designed for flush-mounted installation in Gira System 55 frames. The anthracite thermoplastic housing is halogen-free and UV-resistant, with a matt surface finish.

Advantages

Child safety thanks to increased touch protection. Screw terminals ensure reliable connection. Compatible with Gira System 55 cover frames for a seamless look.

Suitable for

• Residential and commercial installations
• Indoor use (IP20)
• Gira System 55 frame systems

Key specifications

• Socket type: Type F (Schuko)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Material: Thermoplastic (PC)
• Surface finish: Matt
• Halogen-free: Yes
• UV-resistant: Yes
• IP rating: IP20
• Number of sockets: 1-gang
• Installation depth: 32 mm
• Operating temperature: -20°C to +40°C

Recommendations

Pair with a Gira System 55 cover frame in a matching colour for a complete installation.
