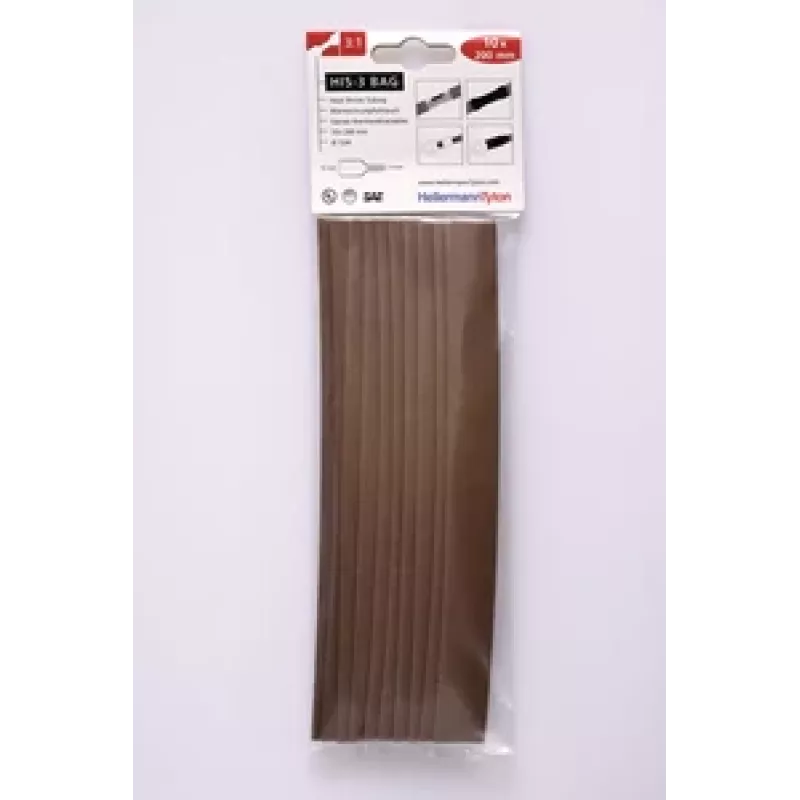

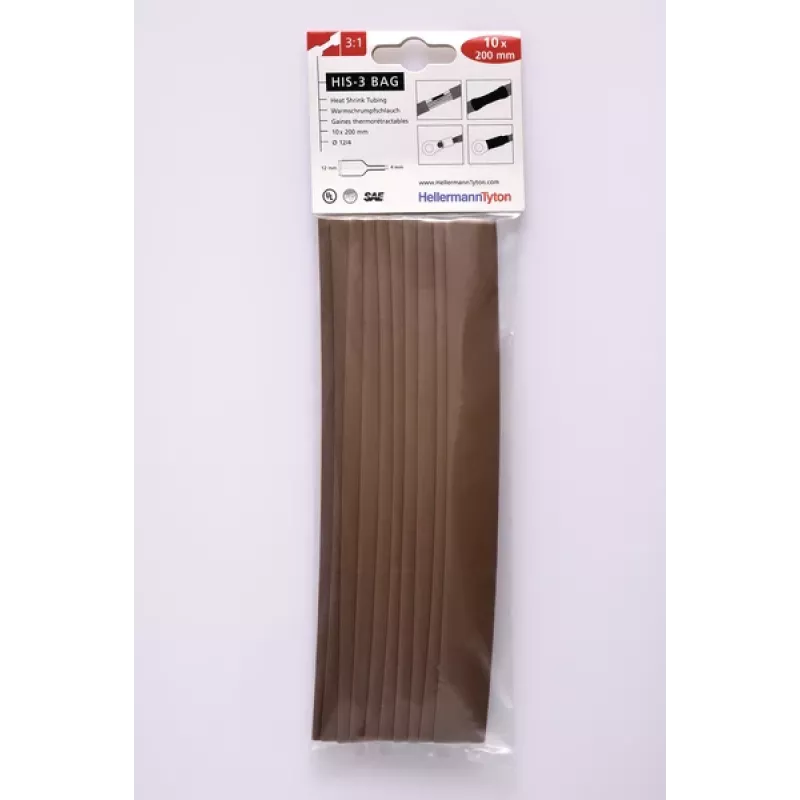

HELLERMANNTYTON warmtekrimpkous-set HIS-3, 3:1 krimpverhouding, verschillende kleuren, 100 stuks, 200 mm lengte 308-31214

Heat shrink tubing set with a 3:1 shrink ratio, providing a secure, insulating seal for electrical connections. The set includes 100 pieces in assorted colours, each 200 mm long, with diameters from 1.5 mm to 18 mm before shrinking. Made from cross-linked polyolefin, the tubing shrinks at +90 °C and operates from -55 °C to +125 °C.

Advantages

Cross-linked polyolefin construction delivers reliable insulation and strain relief. The 3:1 shrink ratio allows the tubing to conform to irregular shapes, while the assortment of colours aids in wire identification.

Suitable for

• Insulating electrical splices and terminations
• Bundling wires and cables
• Colour-coding for circuit identification
• Protecting components from abrasion and moisture

Key specifications

• Shrink ratio: 3:1
• Material: Cross-linked polyolefin
• Operating temperature range: -55 °C to +125 °C
• Minimum shrink temperature: +90 °C
• Dielectric strength: 20 kV/mm
• Flammability rating: UL224 VW-1
• Halogen-free: No
• RoHS compliant: Yes
• Certifications: UL, CSA
• Colours included: Black, Red, Blue, Yellow, Green, White
• Number of pieces: 100
• Tube length: 200 mm
• Included diameters (before/after shrink): 1.5/0.5 mm (20 pcs), 3.0/1.0 mm (20 pcs), 4.5/1.5 mm (20 pcs), 6.0/2.0 mm (10 pcs), 9.0/3.0 mm (10 pcs), 12.0/4.0 mm (10 pcs), 18.0/6.0 mm (10 pcs)

Recommendations

Use a heat gun set to +90 °C or higher for uniform shrinkage. Select tubing with a pre-shrink diameter 20–30% larger than the object for a tight fit.
