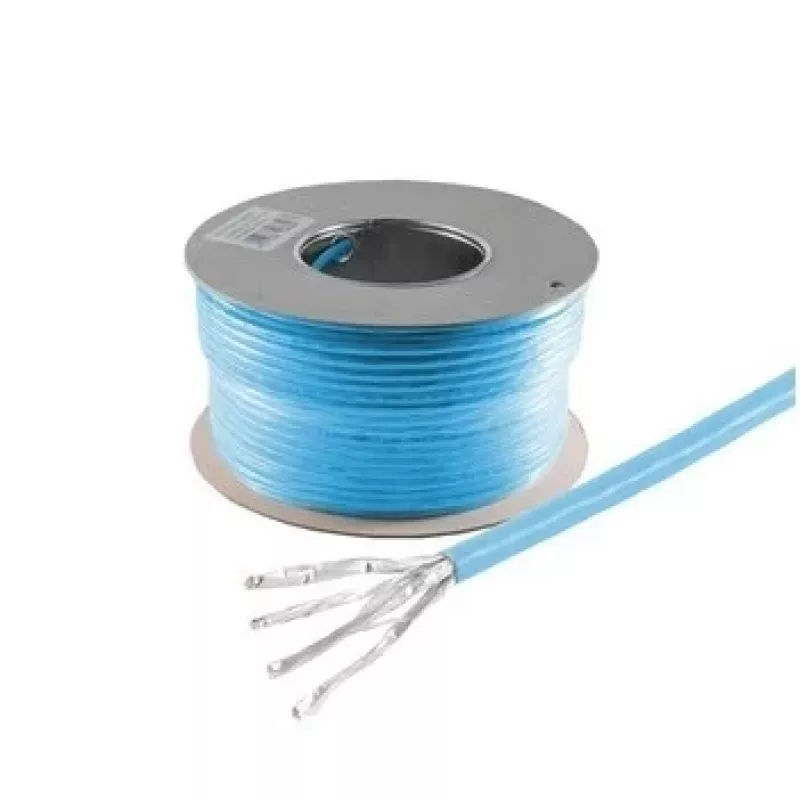

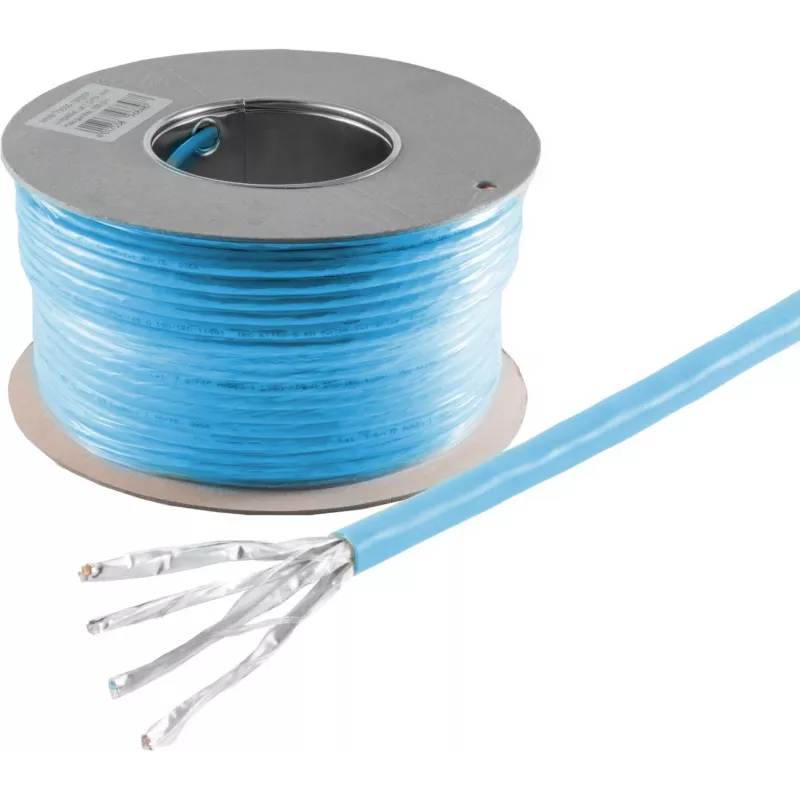

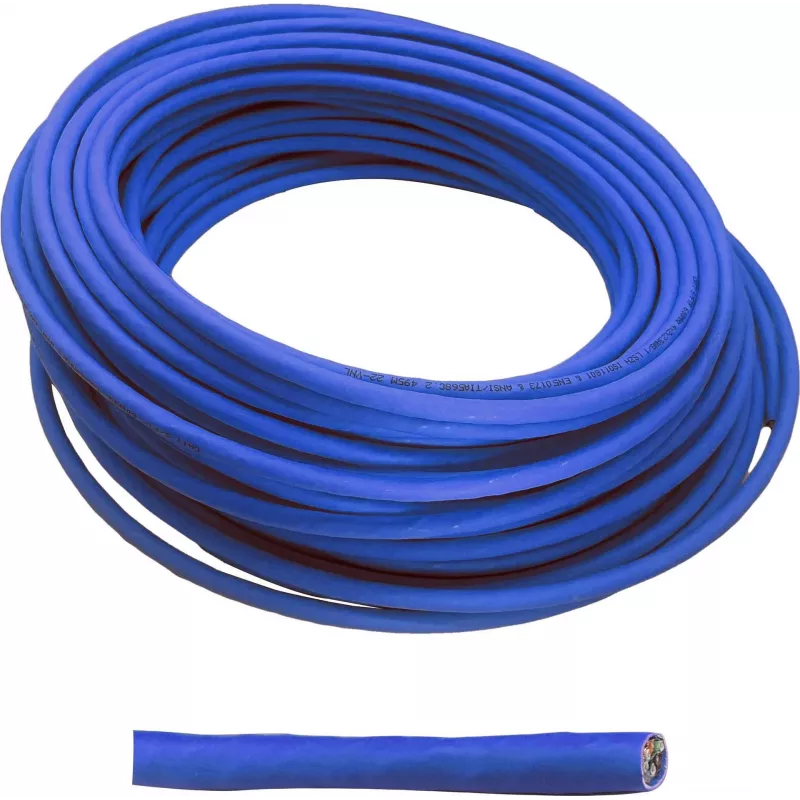

HELOS Cat 8.1 S/FTP PiMF installatiekabel, LSZH, blauw, 100m ring

High-speed network installations demand cabling that can handle 40 Gbit/s without interference. This HELOS installation cable meets that need with Cat 8.1 performance, shielded to prevent crosstalk and signal loss in demanding environments.

Who is it for

Network installers and IT professionals setting up data centers, server rooms, or high-bandwidth office networks will appreciate the reliability and performance of this cable.

Main features

• Cat 8.1 performance up to 24 meters, supporting 40 Gbit/s data transfer
• S/FTP shielding with PiMF (pairs in metal foil) and overall braid for superior noise immunity
• 2000 MHz bandwidth for high-frequency signal integrity
• Solid AWG 22/1 conductors for stable connections over long runs
• LSZH (Low Smoke Zero Halogen) jacket for safety in fire-sensitive areas
• Blue jacket for easy identification, 100-meter ring for convenient installation

Specifications

• Cable category: Cat 8.1
• Shielding: S/FTP (PiMF + braid)
• Frequency: 2000 MHz
• Data rate: 40 Gbit/s
• Conductor: 4 x 2 x AWG 22/1, solid
• Jacket: LSZH, halogen-free
• Length: 100 m
• Colour: Blue

Tips

For best performance, keep runs within 24 meters for Cat 8.1 speeds and ensure proper grounding of the shield at the patch panel.
