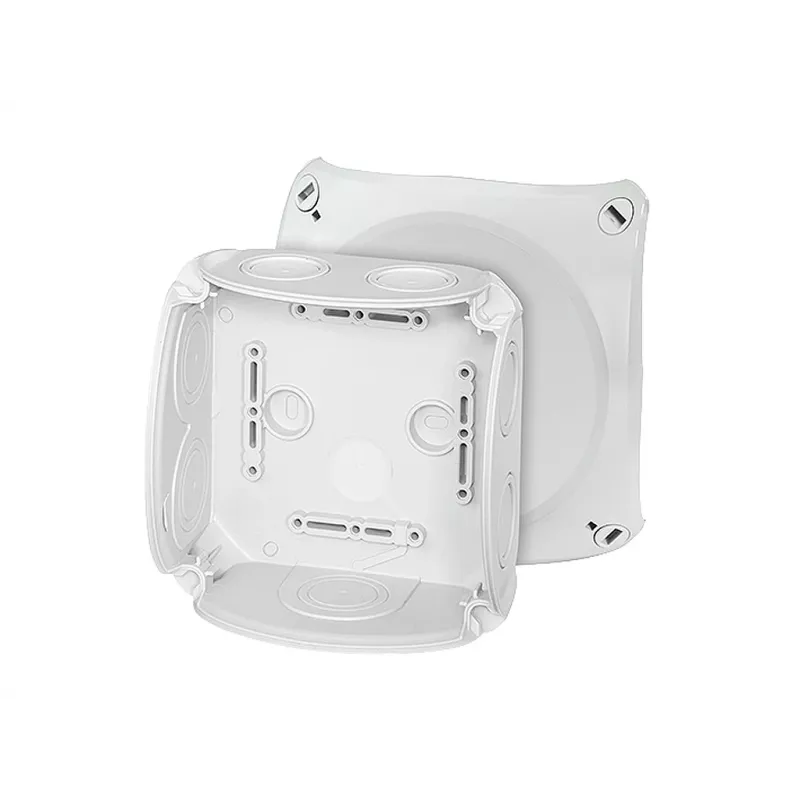

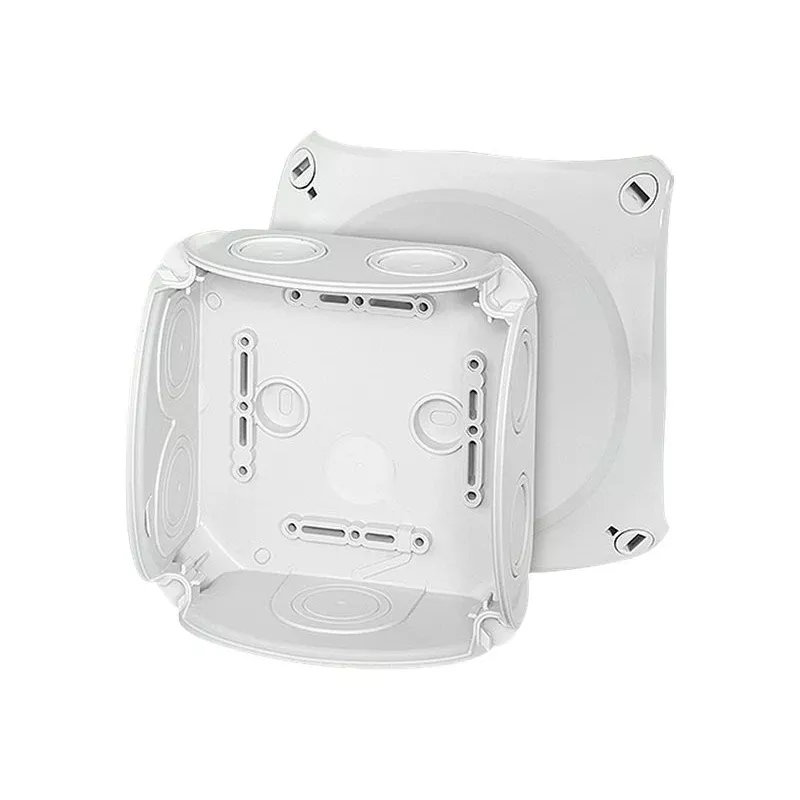

HENSEL kabelaansluitkast DK 0600 G grijs RAL 7035 IP65 5-polig

The HENSEL Kabelanschlusskasten DK 0600 G is a high-quality junction and connection box designed for professional electrical installations. Manufactured by HENSEL PERFORMING LIGHT, this grey (RAL 7035) enclosure offers reliable protection and easy cable management in industrial and commercial environments.

Advantages

Robust polycarbonate construction with IP65 protection ensures dust-tight and water-jet proof performance. The 5-pole terminal block supports conductors up to 16 mm² and a rated current of 63 A, making it suitable for a wide range of applications. Halogen-free material enhances safety in case of fire, and the IK08 impact resistance provides durability against mechanical stress.

Suitable for

• Electrical junction and connection points in industrial settings
• Surface-mounted cable distribution in commercial buildings
• Outdoor and wet-area installations requiring IP65 protection
• Applications demanding halogen-free and glow-wire tested components

Key specifications

• Brand: HENSEL PERFORMING LIGHT
• Model: DK 0600 G
• Protection Class: IP65
• Rated Insulation Voltage: 690 V
• Rated Current: 63 A
• Max. Conductor Cross-section: 16 mm²
• Number of Poles: 5
• Material: Polycarbonate
• Colour: Grey (RAL 7035)
• Glow-wire Test: 750 °C
• Impact Resistance: IK08
• Halogen-free: Yes
• Mounting Type: Surface mounted
• Number of Cable Entries: 8 (elastic entries)
• Terminal Type: Screw terminals
• Lid Type: Opaque
• Operating Temperature Range: -25 °C to +40 °C
• Sealable: Yes

Recommendations

For optimal performance, ensure proper cable gland selection matching the elastic entry size. This junction box is ideal for use with HENSEL cable entry systems and compatible with standard screw terminals.
