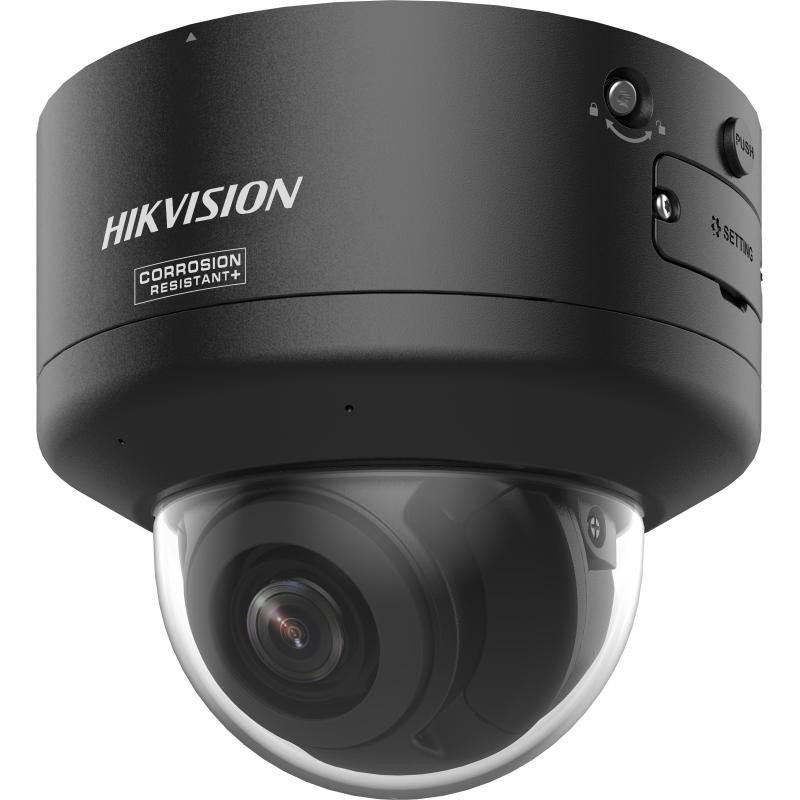

Hikvision DS-2CD2746G3-IPTRZSY 4 MP dome-IP-camera, 2,8-12 mm, zwart

The Hikvision DS-2CD2746G3-IPTRZSY(2.8-12mm)BLACK is a 4 MP dome IP security camera with motorized pan, tilt, rotate, and zoom (PTRZ) for easy installation and monitoring. It features AcuSense technology for accurate person and vehicle classification, and Powered by DarkFighter for excellent low-light performance. The camera is IP67 and IK10 rated, and its anti-corrosion design (NEMA 4X) ensures reliability in harsh environments.

Key features

• 4 MP resolution
• Motorized PTRZ (pan, tilt, rotate, zoom) for flexible positioning
• AcuSense technology for person and vehicle classification
• Powered by DarkFighter for low-light performance
• HikAI-ISP for noise reduction
• Anti-corrosion design (NEMA 4X)
• IP67 water and dust resistant
• IK10 vandal resistant
• 130 dB WDR for clear imaging in strong backlight
• Tamper-proof and environmentally friendly packaging

Specifications

• Brand: Hikvision
• MPN: DS-2CD2746G3-IPTRZSY(2.8-12mm)BLACK
• Product colour: Black
• Product type: IP Security Camera
• Maximum resolution: 4 MP
• Form factor: Dome
• Connectivity technology: Wired
• Power source type: DC & PoE
• International Protection (IP) code: IP67
• Focal length range: 2.8 - 12 mm
• Image sensor: 1/1.8" Progressive Scan CMOS
• Max. resolution: 2688 × 1520
• Min. illumination: Colour: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
• Shutter time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Camera adjustment: Remote adjustment (max. 1000 cycles); pan: 0° to 350°, tilt: 0° to 85°, rotate: 0° to 350°
• Lens type: Varifocal, motorized zoom, 2.8 to 12 mm
• Field of view: Horizontal 59.3° to 23.6°, vertical 114.6° to 41.8°, diagonal 141.3° to 48.1°
• Lens mount: Integrated
• Aperture type: Fixed
• Aperture: F1.2
• Depth of field: 1 m to ∞
• DORI – Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m
• DORI – Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.2 m
• Supplement light type: IR
• Supplement light range: Up to 40 m
• Smart Supplement Light: Yes
• IR wavelength: 850 nm
• Main stream – 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Main stream – 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-stream – 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• Sub-stream – 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third stream – 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Third stream – 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Third stream: Supported in some settings
• Video compression: Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
• Video bit rate: 32 Kb/s to 24 Mb/s
• H.264 type: Baseline Profile, Main Profile, High Profile
• H.265 type: Main Profile
• Bit rate control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• ROI: 1 fixed region for main stream and sub-stream
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio bit rate: 64 Kb/s (G.711ulaw/G.711alaw)/16 Kb/s (G.722.1)/16 Kb/s (G.726)/32 to 192 Kb/s (MP2L2)/8 to 320 Kb/s (MP3)/16 to 64 Kb/s (AAC-LC)
• Audio sampling rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment noise filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous live view: Up to 6 channels
• API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users; up to 3 users: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter
