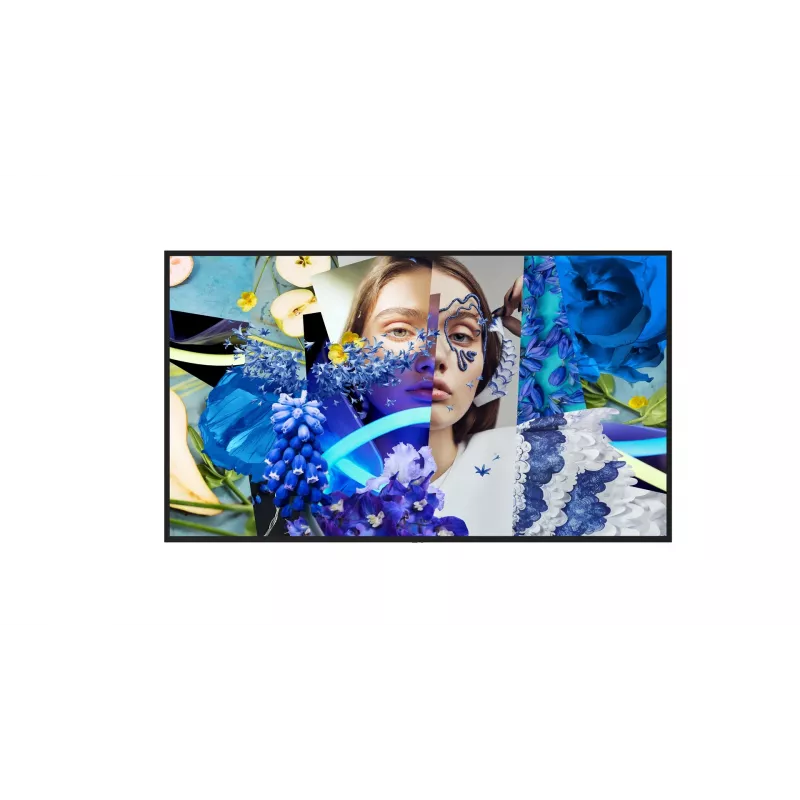

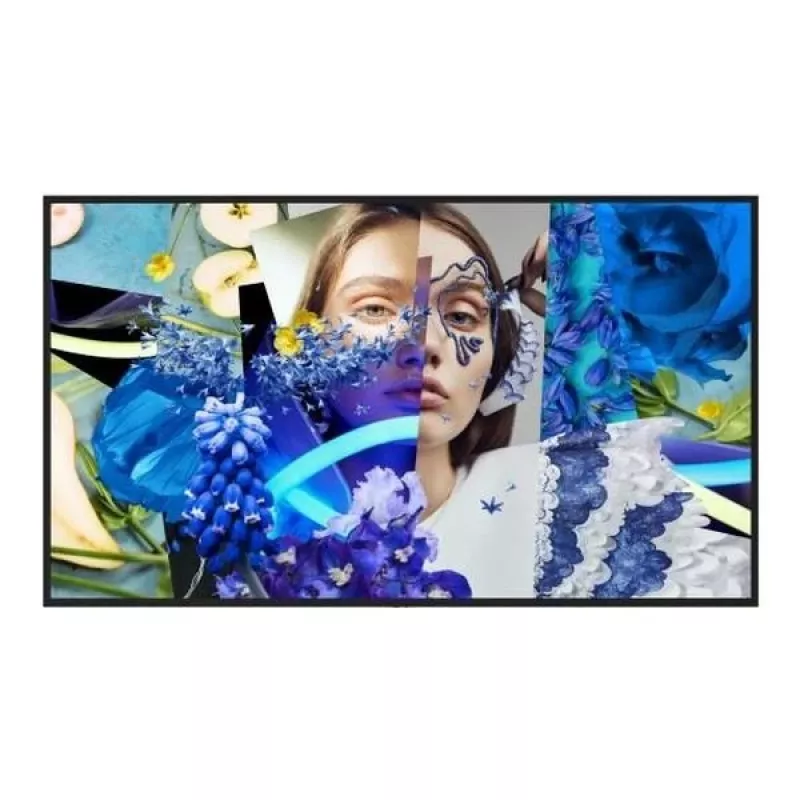

Hikvision DS-D6055UN-DP 55 inch Full HD LCD videowall monitor

The Hikvision DS-D6055UN-DP is a professional 55-inch LCD video wall monitor designed for 24/7 continuous operation. Featuring an ultra-narrow bezel of just 3.5 mm total (2.3 mm left/top, 1.2 mm right/bottom), it delivers an almost seamless viewing experience ideal for control rooms, retail displays, and digital signage. With Full HD resolution (1920 x 1080), 500 cd/m² brightness, and an IPS panel, this monitor ensures vivid colors and wide viewing angles.

Advantages

Ultra-narrow bezel minimizes gaps between screens for a near-seamless video wall. 24/7 operation capability ensures reliability in mission-critical environments. Multiple input and output ports including HDMI, DVI, DisplayPort, and VGA provide flexible connectivity. VESA mount compatible (400 x 400 mm) for easy installation.

Suitable for

• Control rooms and command centers
• Retail digital signage
• Corporate lobbies and meeting rooms
• Broadcast and monitoring applications

Key specifications

• Display Size: 55 inch
• Panel Type: IPS
• Resolution: 1920 x 1080 (Full HD)
• Brightness: 500 cd/m²
• Contrast Ratio: 1200:1
• Response Time: 8 ms (GtG)
• Viewing Angle: 178° / 178°
• Bezel Width: 3.5 mm total (2.3 mm L/T, 1.2 mm R/B)
• Operating Hours: 24/7
• Input Ports: HDMI 1.4 x1, DVI x1, DisplayPort 1.2 x1, VGA x1, USB 2.0 x1, RS232 In x1, Audio In x1
• Output Ports: HDMI 1.4 x1 (Loop out), DVI x1 (Loop out), RS232 Out x1, Audio Out x1
• Power Consumption (Typical): ≤ 160 W
• VESA Mounting: 400 x 400 mm
• Backlight Type: DLED
• Color Depth: 8-bit (16.7 Million Colors)
• Refresh Rate: 60 Hz
• Pixel Pitch: 0.63 mm
• Aspect Ratio: 16:9

Recommendations

For optimal performance in video wall setups, ensure proper ventilation and use a compatible VESA mount. This monitor is designed for professional use and supports daisy-chaining via HDMI and DVI loop-out ports.
