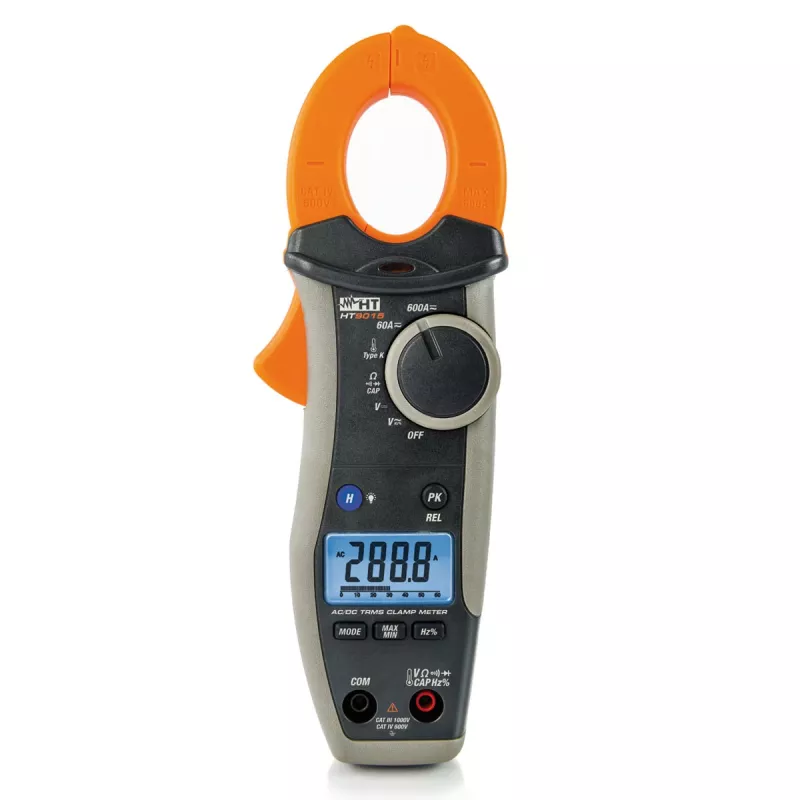

HT Instruments HT9015 digitale stroomtang AC/DC 1000A CAT IV 600V CAT III 1000V True RMS 6000 counts 1009015

Electricians and maintenance technicians working on industrial power systems, motor controls, or building installations can rely on the HT Instruments HT9015 digital clamp meter for accurate AC/DC current and voltage measurements without breaking the circuit. Its 45 mm jaw opening accommodates large conductors, while the 6000-count display with True RMS ensures precise readings even on distorted waveforms. Safety rated CAT IV 600V and CAT III 1000V, this meter is built for demanding environments.

Key specifications

• AC/DC current: 0.1 A to 1000 A
• AC/DC voltage: 0.1 V to 1000 V
• Resistance: 0.1 Ω to 60 MΩ
• Capacitance: 0.001 µF to 60 mF
• Frequency: 0.01 Hz to 10 kHz
• Temperature: -50 °C to 760 °C (with K-type probe)
• True RMS with 6000-count display
• Jaw opening: 45 mm
• Functions: continuity with buzzer, diode test, data hold, min/max, peak hold, backlight
• Power: 2x 1.5V AAA batteries

Why choose it

The HT9015 combines high safety ratings with a wide measurement range, making it suitable for both residential and industrial electrical work. True RMS technology ensures accurate readings on non-sinusoidal signals, and the backlit display improves visibility in dark panels. Its rugged design and convenient features like data hold and min/max recording enhance productivity on the job.

Ideal use cases

• Measuring current in distribution panels and motor circuits
• Troubleshooting HVAC systems and industrial equipment
• Verifying voltage and continuity in electrical installations
• Testing diodes and capacitors in electronic circuits
• Temperature measurement with K-type thermocouple

Good to know

The meter is powered by two AAA batteries, which are widely available and easy to replace. The 45 mm jaw opening allows clamping around conductors up to 45 mm in diameter, covering most standard cables. The meter's safety ratings (CAT IV 600V, CAT III 1000V) make it safe for use at the service entrance and in fixed installations.
