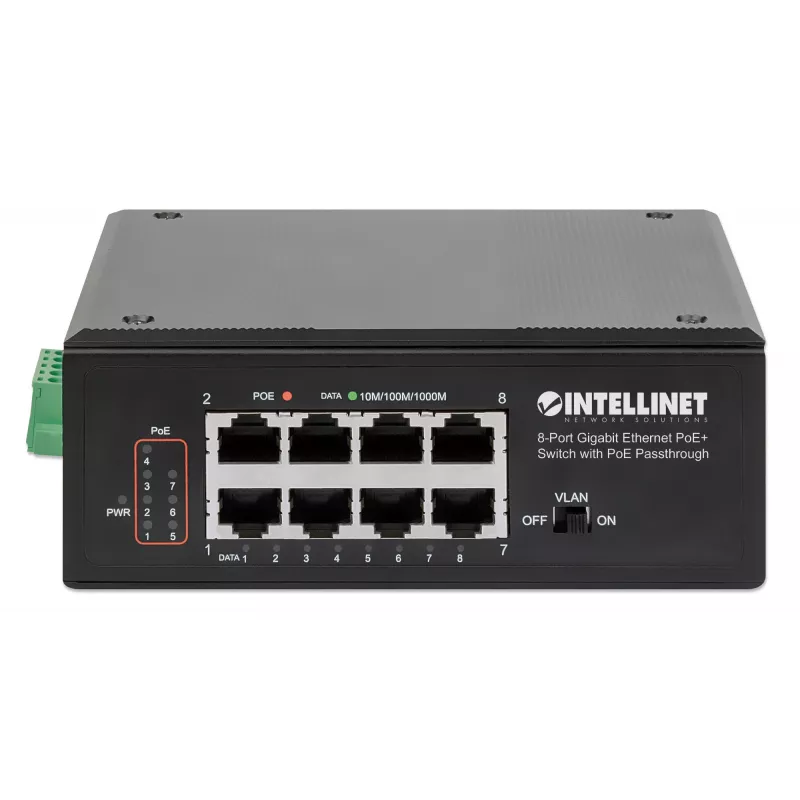

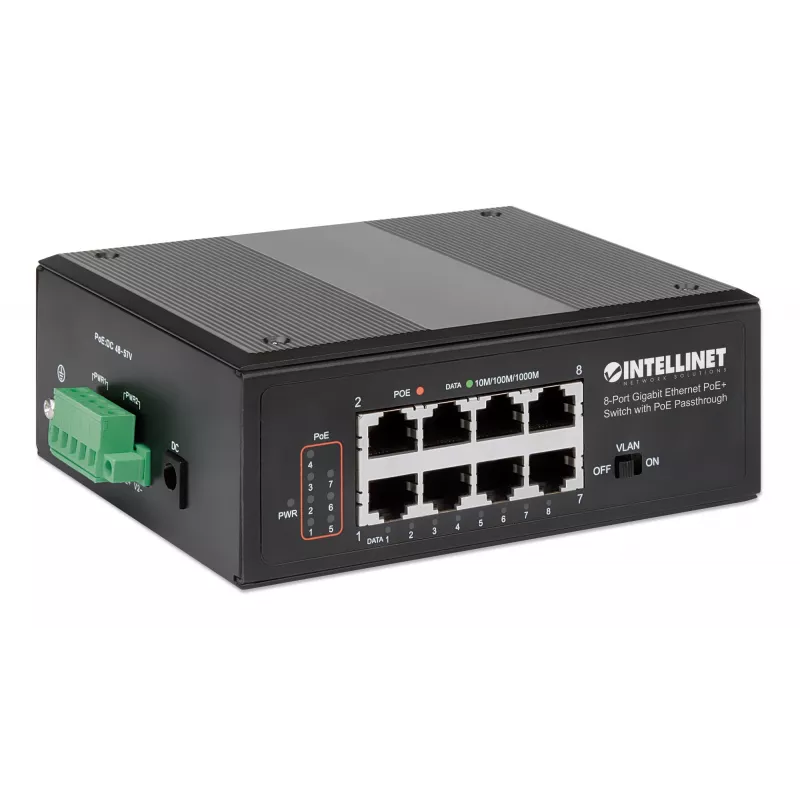

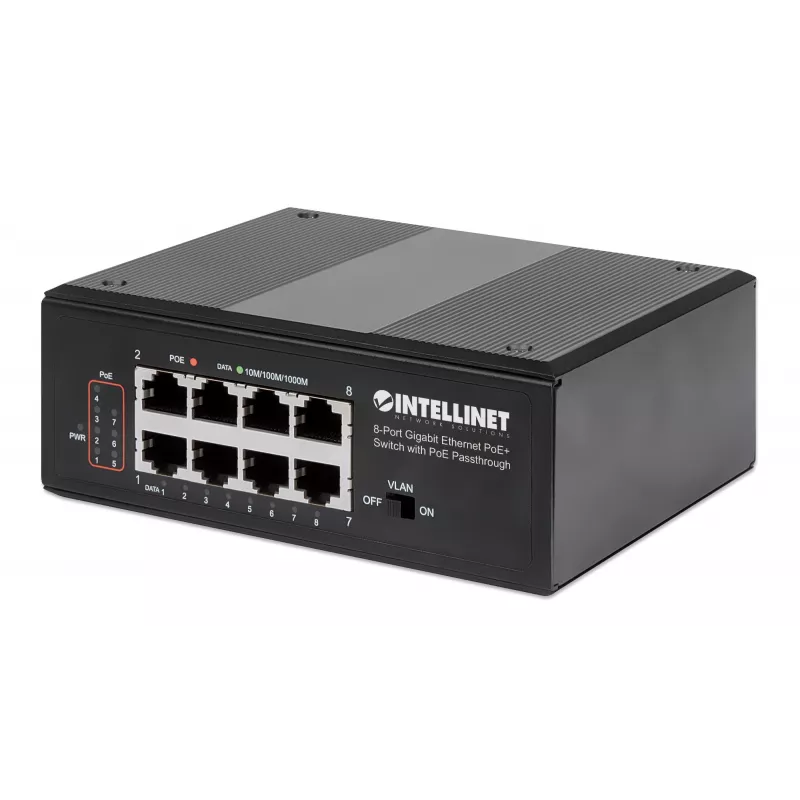

Industriële switch Intellinet 8-poorts Gigabit Ethernet PoE+

The Intellinet 8-Port Gigabit Ethernet PoE+ Industrial Switch provides eight Gigabit Ethernet ports including one PD input port that accepts up to 95 W from Ultra PoE sources and seven PSE ports to power connected devices. Designed for industrial use, the switch supports PoE passthrough to forward both data and power over network cables, offers a total PoE budget of up to 120 W, and is built into a rugged metal housing with DIN-rail mounting and redundant DC power inputs for reliable operation in harsh environments.

Advantages

This PoE passthrough switch extends a PoE connection range from 100 m to 200 m, reducing installation costs by eliminating additional power wiring and external adapters. It delivers Gigabit speeds (up to 1,000 Mbps) to connected devices while supporting IEEE 802.3af/at standards and providing industrial-grade temperature tolerance and mechanical protection for stable operation.

Suitable for

• Powering multiple wireless access points and wireless bridges
• Supplying VoIP phones and IP video cameras with data and power
• Industrial IoT deployments and Industry 4.0 installations
• Environments requiring DIN-rail mounting and redundant DC power

Key specifications

• Ports: 8 × Gigabit Ethernet (10/100/1000), including 1 PD PoE input and 7 PSE PoE output ports
• PoE power: PD input supporting up to 95 W (Ultra PoE), total PoE budget up to 120 W
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3af, 802.3at
• Switching capacity: 16 Gbit/s
• MAC address table: 4000 entries
• Power input voltage: DC 48–57 V (supports redundant DC inputs); can also accept a DC power adapter or industrial power supply
• Operating temperature: -20 to 75 °C (-4 to 167 °F)

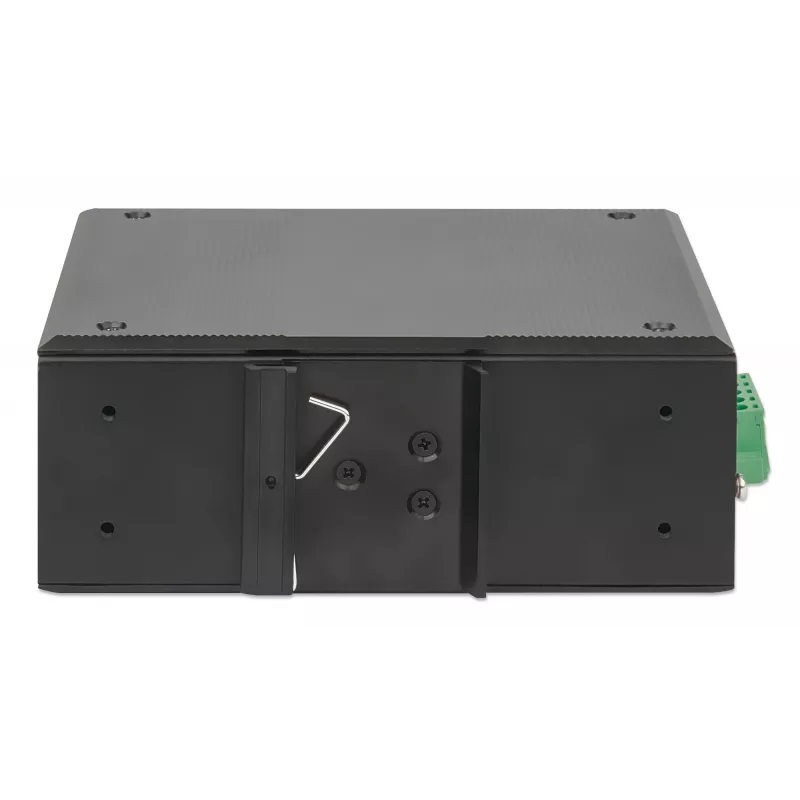

• Mounting: DIN-rail
• Housing: rugged metal, color: black
• Weight: 0.673 kg

How to use

Connect a PoE source or injector to the PD input port to supply both data and power to the switch, then connect up to seven PoE devices (access points, cameras, VoIP phones) to the PSE output ports using standard Ethernet cables. For longer distances, use the passthrough function to extend the effective range up to 200 m between the primary PoE source and the powered device. If local power is required instead of PoE input, connect an appropriate DC power adapter or industrial power supply to the redundant DC inputs.

Recommendations

Use standard Cat5e or higher Ethernet cables for Gigabit performance, verify total PoE power requirements of connected devices to avoid exceeding the 120 W budget, and ensure proper DIN-rail installation and adequate ventilation when deploying the switch in industrial cabinets or enclosures.
