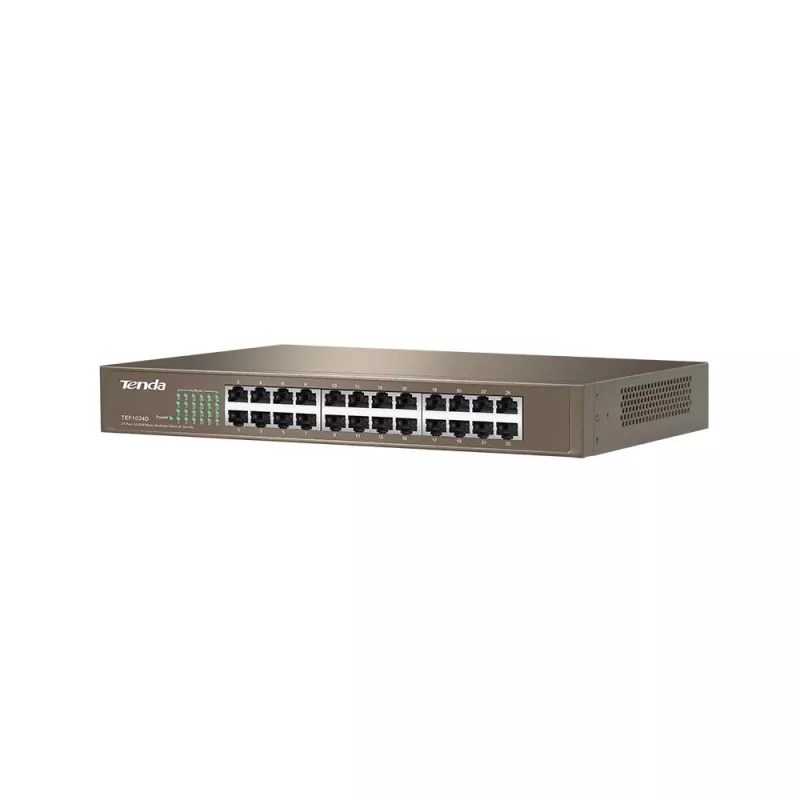

Tenda TEF1024D 24-poorts 10/100 Mbps unmanaged rackmount netwerkswitch

For small offices and workgroups that need to connect many devices without complex configuration, the Tenda TEF1024D delivers straightforward, dependable networking. This 24-port unmanaged switch is built around a non-blocking 4.8 Gbps switching fabric, so every Fast Ethernet port can run at full speed simultaneously. The sturdy metal housing fits a standard 19-inch rack, and with plug-and-play operation, you can have your entire network up and running in minutes.

Highlights

• 24 auto-negotiating 10/100 Mbps ports for PCs, printers, IP cameras, and more
• Non-blocking architecture with 4.8 Gbps switching capacity and 3.57 Mpps forwarding rate
• 8K MAC address table supports even large workgroups without address flooding
• IEEE 802.3x flow control prevents packet loss under heavy load
• Rack-mountable 1U steel chassis with included mounting ears
• Fanless design for silent operation in open offices

In daily use

The TEF1024D is a true set-and-forget device. Connect your router, servers, and workstations, and the switch automatically negotiates speed and duplex for each link. LEDs on the front panel give instant status for power and link/activity on every port, so troubleshooting takes seconds. Because it is unmanaged, there is no software to install, no IP address to configure, and no firmware to maintain — ideal for businesses without dedicated IT staff.

Full specifications

• Ports: 24 × 10/100 Mbps RJ45, auto-negotiation, auto-MDI/MDIX
• Switching capacity: 4.8 Gbps
• Forwarding rate: 3.57 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 10 KB
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Flow control: full-duplex IEEE 802.3x, half-duplex backpressure
• Power supply: internal AC 100–240 V, 50/60 Hz
• Max power consumption: 12 W
• Housing: steel, 1U rack-mountable, desktop option
• LEDs: power, link/activity per port
• Operating temperature: 0 °C to 40 °C
• Certifications: CE, FCC, RoHS

Final note

If you need a no-nonsense switch that simply works, the TEF1024D offers the port density and reliability your network deserves, without the cost or complexity of managed switches.
