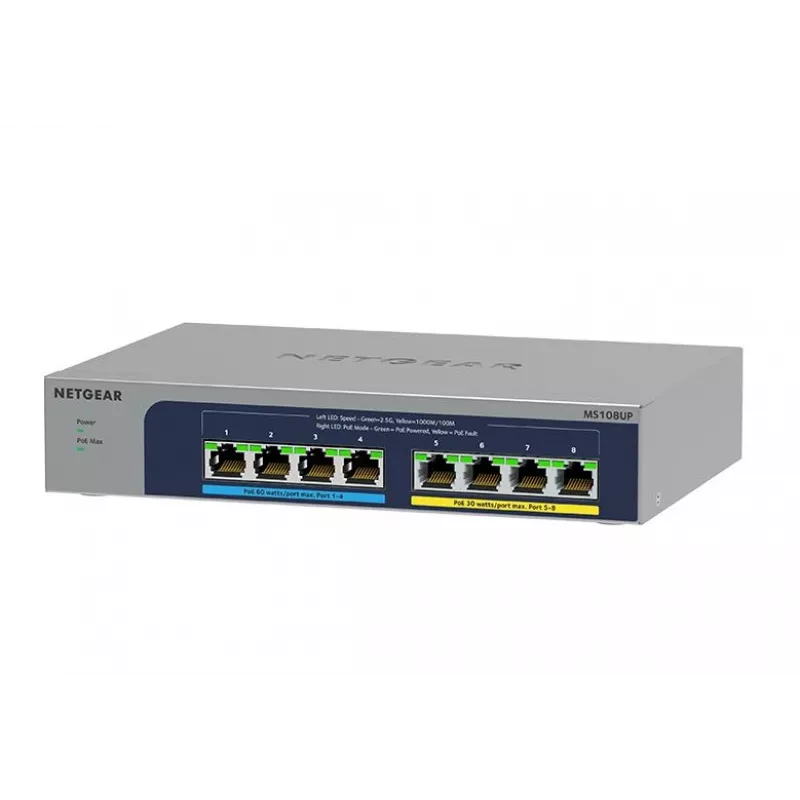

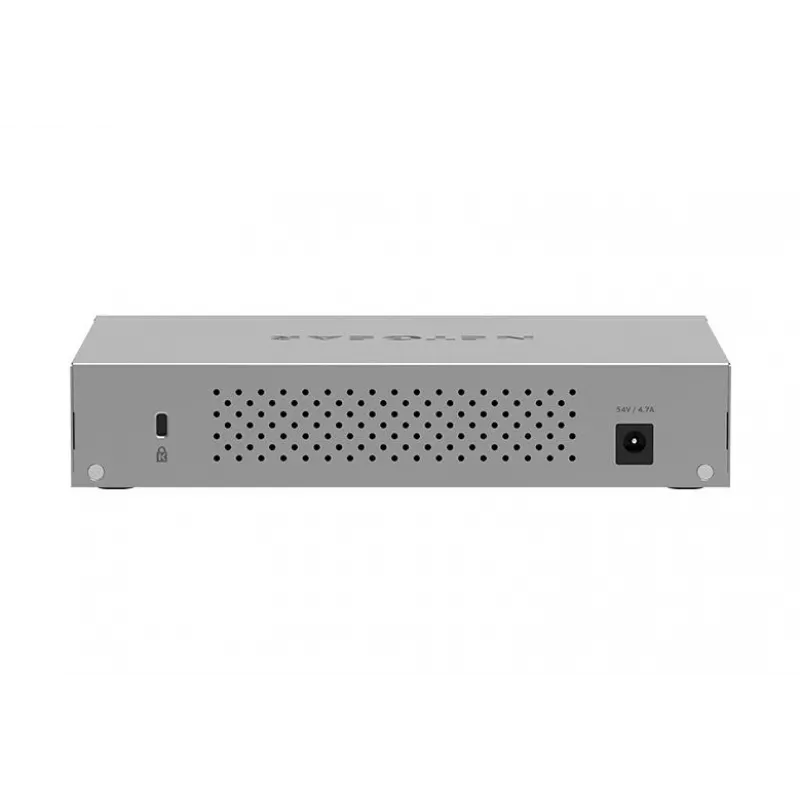

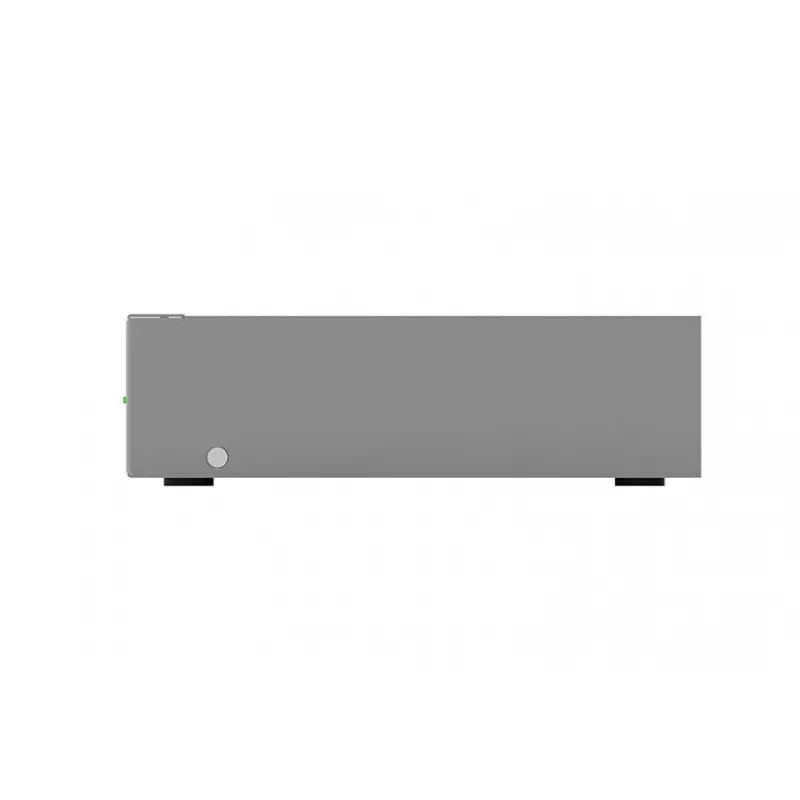

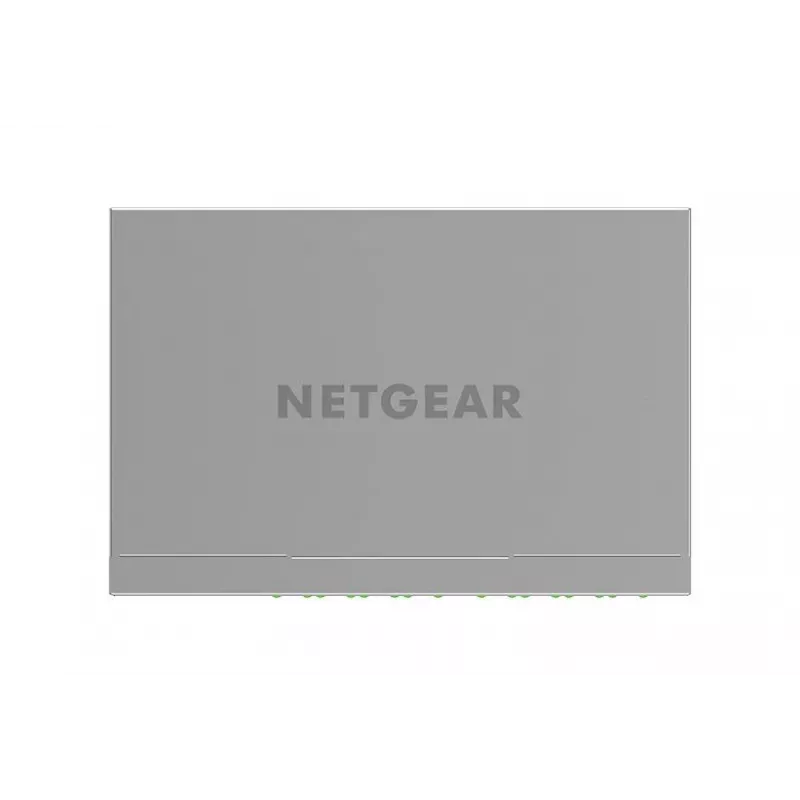

NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)

NETGEAR MS108UP is an unmanaged Multi-Gigabit PoE++ switch that supports 2.5 Gigabit connectivity and Ultra60 PoE++ delivering up to 60 W per port. The compact plug-and-play switch offers a total PoE budget of up to 230 W and is designed to power devices such as VoIP phones, surveillance IP cameras and wireless access points while providing multi-speed wired connections.

Advantages

The switch provides high-power PoE++ on each port with automatic PoE Auto-Balance that distributes available PoE power based on device needs rather than only PoE class. Its unmanaged design enables simple installation without configuration, and the compact metal housing offers reliable performance for small to medium PoE deployments.

Key specifications

• Model: NETGEAR MS108UP
• Ports: Multi-Gigabit ports with 2.5 Gigabit speed support
• PoE standard: Ultra60 PoE++
• Power per port: up to 60 W
• Total PoE budget: up to 230 W
• Operation: Unmanaged, plug-and-play installation
• Use cases: VoIP phones, IP surveillance cameras, wireless access points

How to use

Connect the MS108UP to your network switch or router using Ethernet cables and plug compatible PoE devices directly into the powered ports. The switch applies PoE automatically and balances available power across ports; no configuration is required. Ensure the total connected device power draw does not exceed the 230 W PoE budget for reliable operation.

Recommendations

For optimal results, verify device power requirements and cable quality, and plan PoE load distribution to keep the cumulative power demand within the switch’s 230 W budget. Use the switch in small to medium installations where multi-gigabit connectivity and high PoE power per port are needed.
