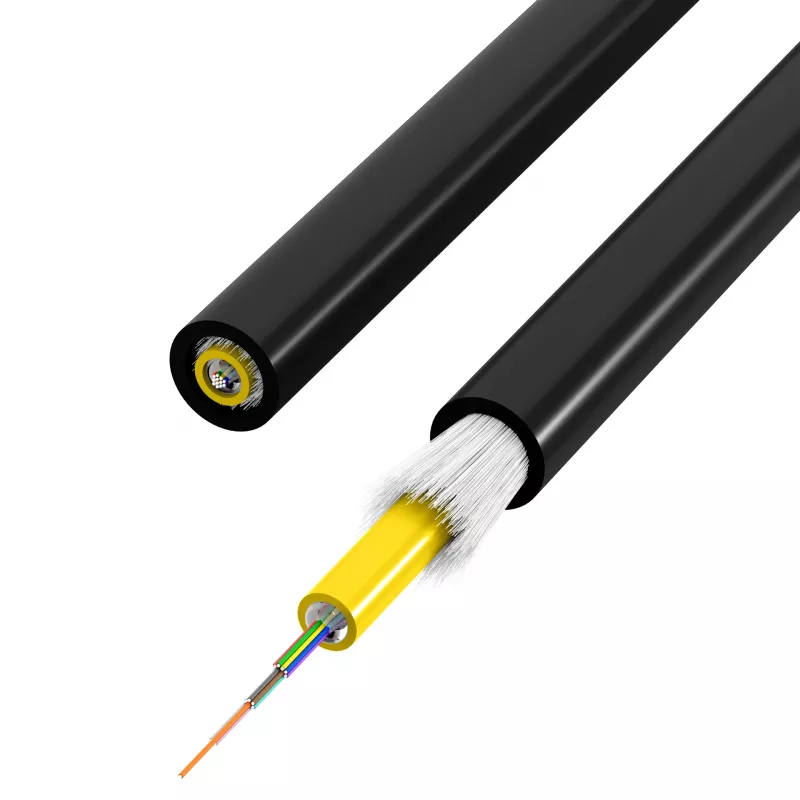

INFRALAN A-DQ(ZN)B2Y OM3 4G (1x4) Fca 2000N zwart 5,8mm glasvezelkabel A4M3F1

This INFRALAN fibre optic cable stands out with its non-metallic rodent protection and 2000 N tensile strength, making it suitable for demanding indoor/outdoor installations where durability is critical. The A-DQ(ZN)B2Y construction with dry core and PE jacket ensures reliable performance in harsh environments.

Highlights

• OM3 multimode fibre, 4 fibres in a single cable
• Outer diameter 5.8 mm, black jacket
• Crush resistance 1000 N/10cm
• Operating temperature -20°C to +70°C

In daily use

Designed for high-bandwidth applications, this cable supports 10 Gigabit Ethernet up to 300 metres at 850 nm. Its dry core design simplifies termination and reduces preparation time, while the rodent-resistant jacket prevents damage in exposed runs.

Full specifications

• Fibre type: OM3 multimode
• Number of fibres: 4

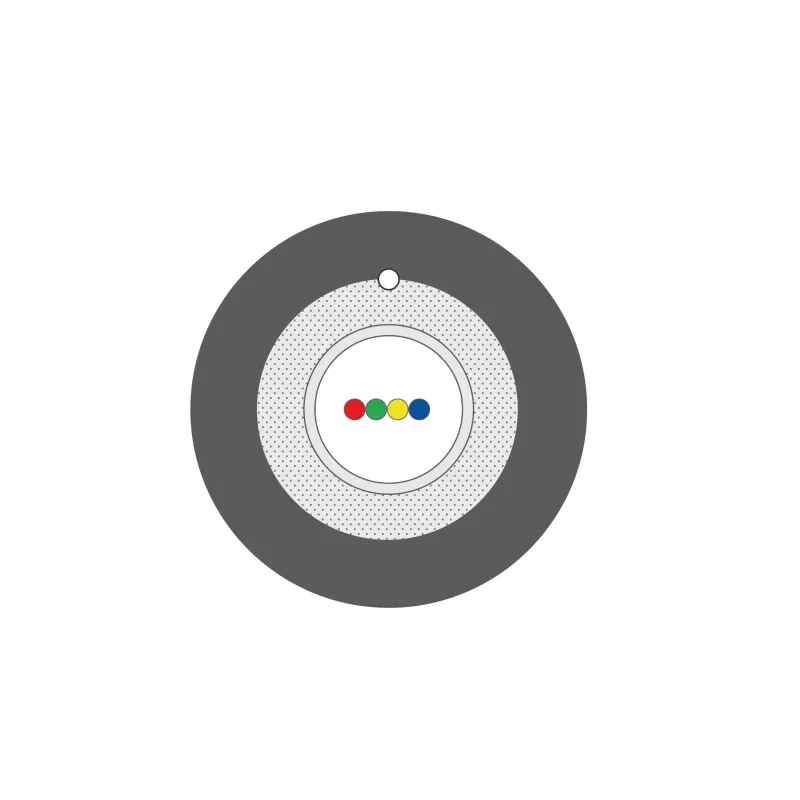

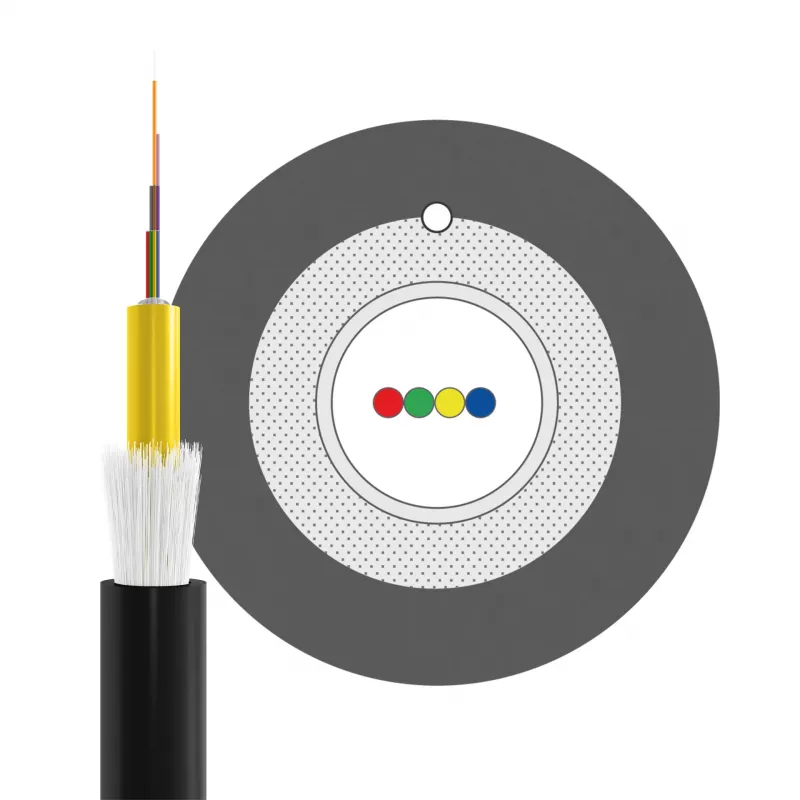

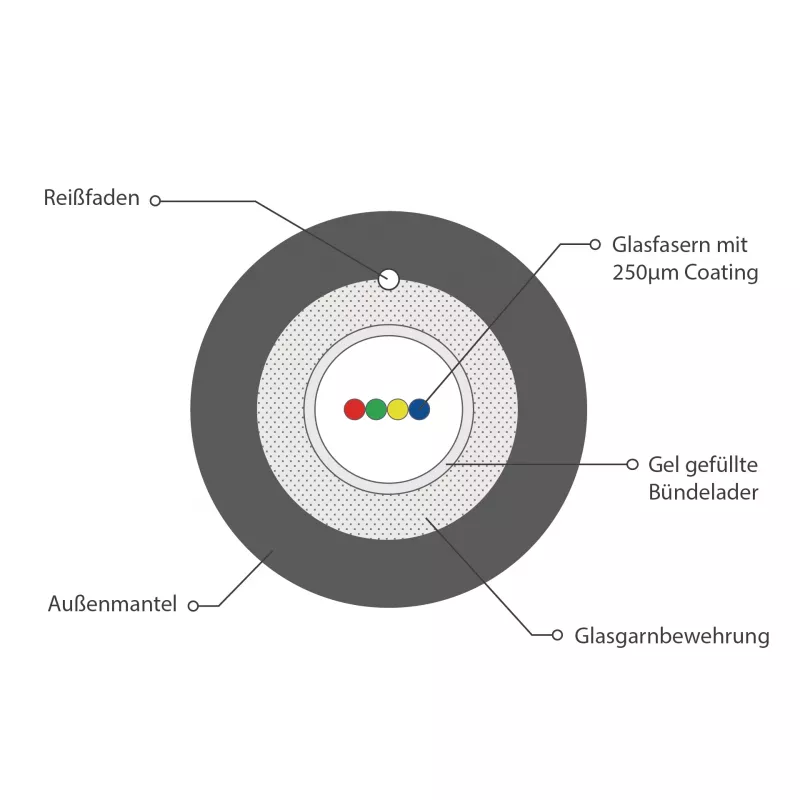

• Cable construction: A-DQ(ZN)B2Y
• Outer diameter: 5.8 mm
• Jacket colour: Black
• Jacket material: PE (Polyethylene)
• Tensile strength: 2000 N
• CPR fire rating: Fca
• Application: Indoor/Outdoor
• Rodent protection: Yes (non-metallic)
• Core protection: Dry core
• Attenuation @ 850nm: ≤ 2.5 dB/km
• Attenuation @ 1300nm: ≤ 0.8 dB/km
• Bandwidth (EMB) @ 850nm: 1500 MHz·km
• Bandwidth (EMB) @ 1300nm: 500 MHz·km
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +70°C
• Crush resistance: 1000 N/10cm
• Minimum bending radius (installation): 20 x outer diameter
• Minimum bending radius (operation): 10 x outer diameter

Final note

With its robust construction and high performance, this cable is a reliable choice for backbone and horizontal cabling in challenging environments.
