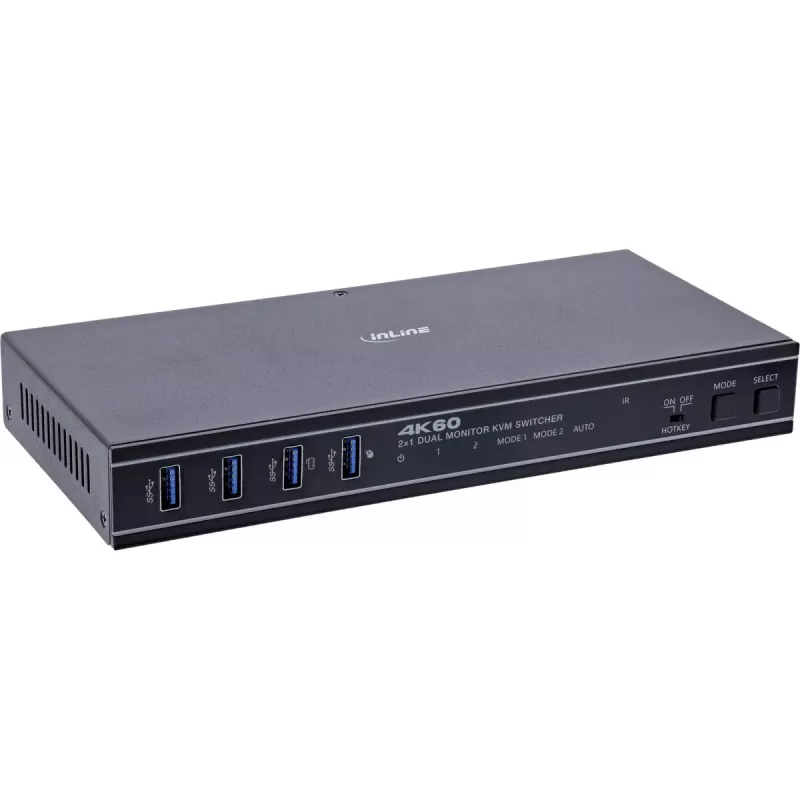

InLine 57885F KVM-switch, 2-voudig, HDMI, 4K60Hz, dubbele monitor

The InLine 57885F is a 2-port KVM switch designed for dual-monitor setups, allowing control of two computers via two HDMI monitors and shared USB peripherals. It supports resolutions up to 4K@60Hz with full colour depth and HDR, and offers switching via hotkey, front button, IR remote control, or RS-232.

Key features

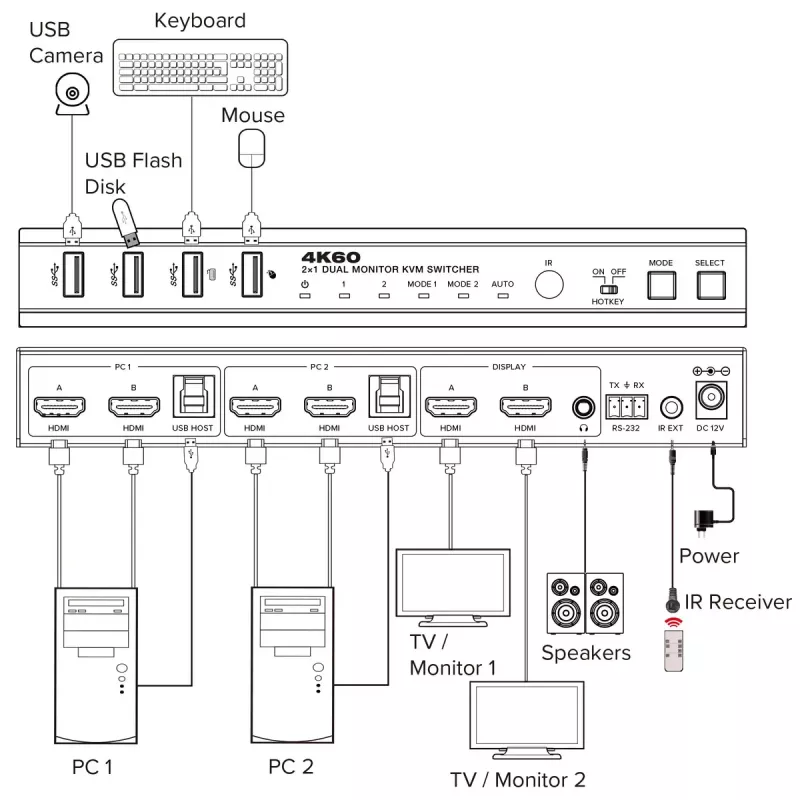

• Control two PCs with dual monitor setup
• 4K@60Hz support with full colour depth and HDR

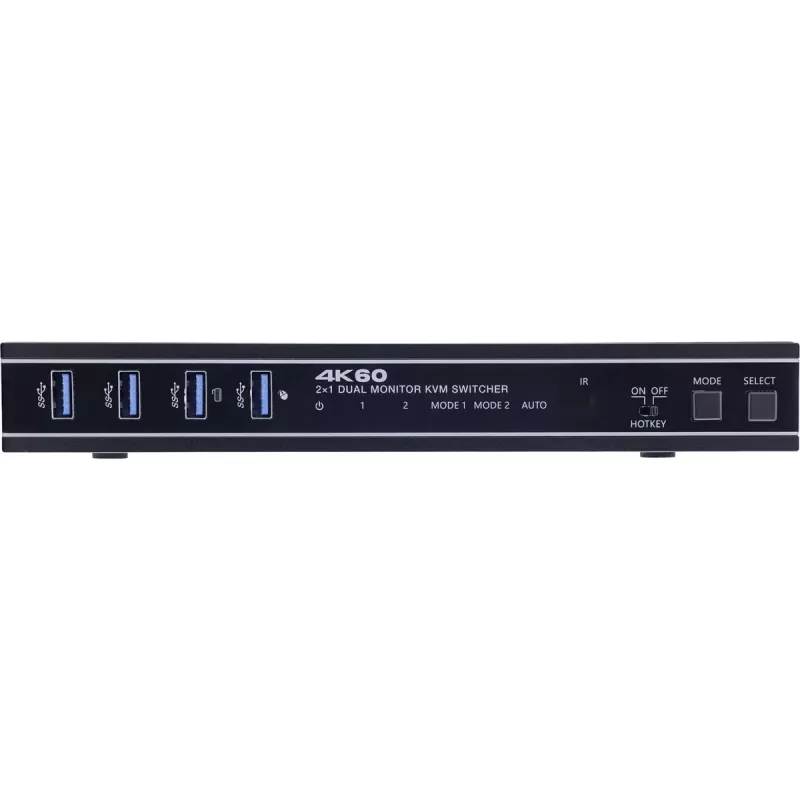

• Switching via hotkey, front button, IR remote control, or RS-232
• Platform-independent: works without drivers with Windows, macOS, and Linux
• Sturdy metal housing with ESD protection

Specifications

• Brand: InLine
• MPN: 57885F

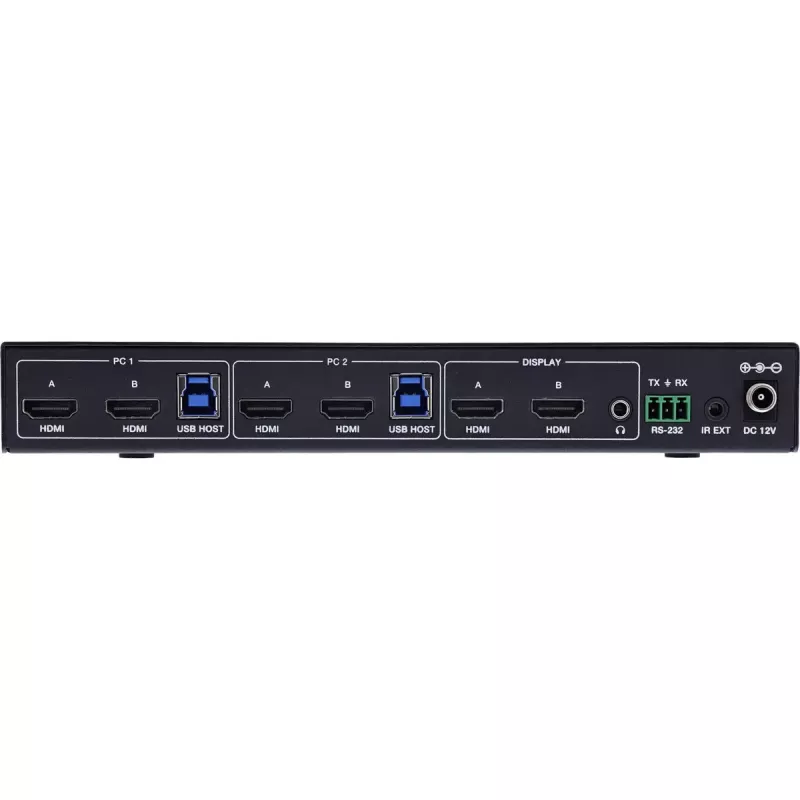

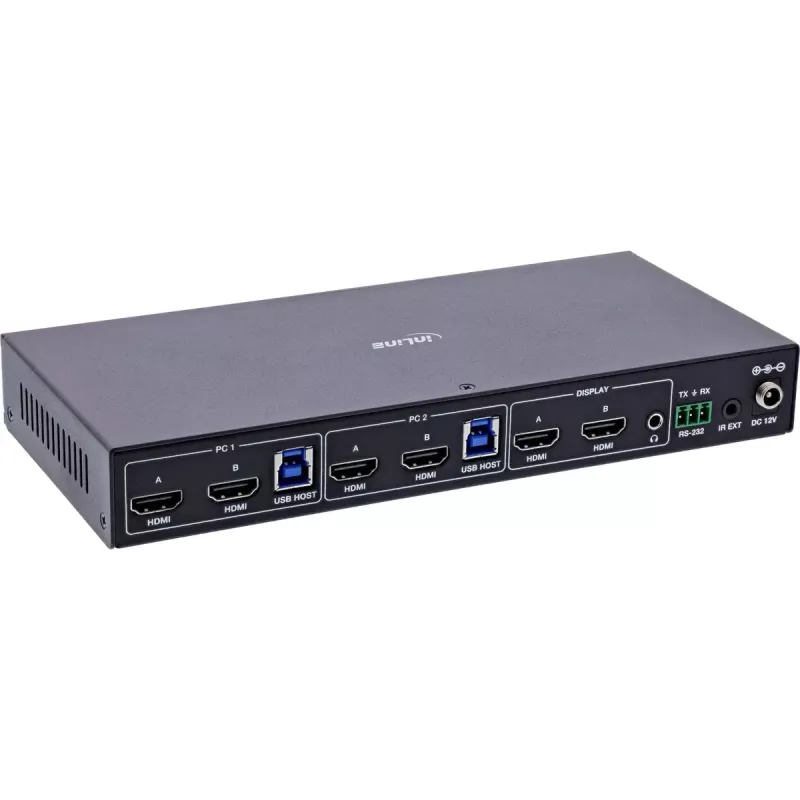

• HDMI inputs: 4 × HDMI (2 per PC, A/B)
• HDMI outputs: 2 × HDMI (display A and B)
• USB ports: 2 × USB host (USB-B), 4 × USB 3.2 Gen.1 (USB-A)
• Audio output: 3.5 mm stereo jack (PCM 2.0CH)
• RS-232: 3-pin terminal connection
• IR EXT: 3.5 mm stereo jack (38 kHz)
• Resolution: up to 4K@60Hz, 2K@144Hz
• Colour depth: 8 / 10 / 12 bits
• Colour spaces: RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
• HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• HDMI version: HDMI 2.0
• HDCP compatibility: HDCP 2.3
• Audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
• Latency: no video or audio delay
• CEC support: yes
• ESD protection: ±8 kV air / ±4 kV contact
• Housing: metal housing, black
• Dimensions: 220 × 100 × 30 mm
• Weight: 626 g
• Operating temperature: 0–40 °C
• Storage temperature: –20–60 °C
• Humidity: 20–90% (non-condensing)
• Recommended HDMI cable lengths: up to 5 m: 4K@60Hz (Premium High Speed HDMI); up to 10 m: 1080p (standard HDMI cable)
• External power supply: External plug-in power adapter with lock
• Input voltage: 100–240 V AC, 50/60 Hz
• Output voltage: 12.0 V DC
• Output current: max. 1.0 A
• Output power: 12.0 W
• Average efficiency in operation: 85.23%
• Efficiency at low load (10%): 78.53%
• Power consumption at zero load: 0.09 W

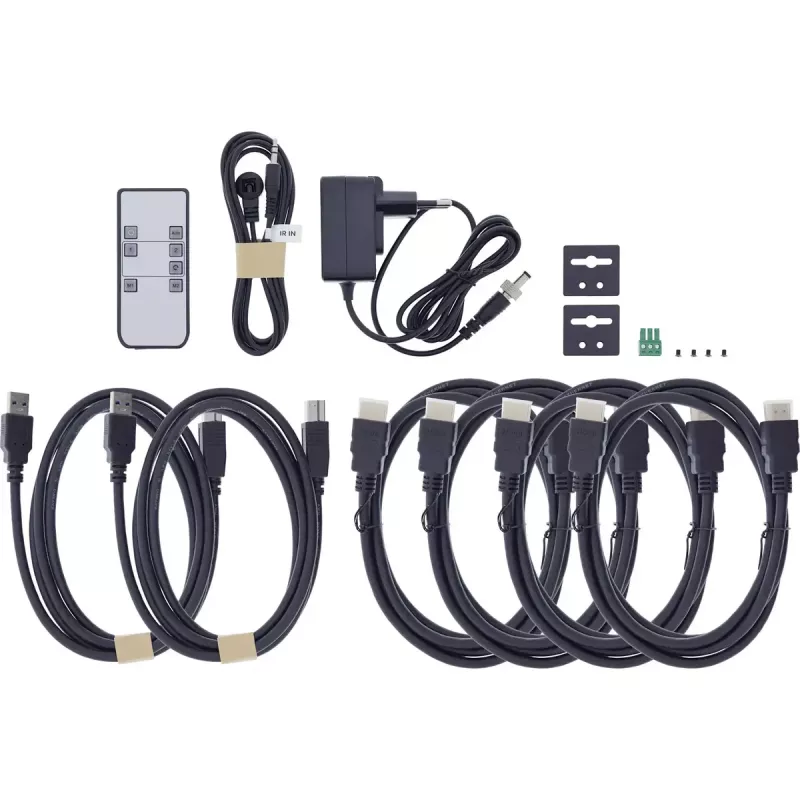

• Scope of delivery: 1 × InLine® KVM switch, 2-port, HDMI, 4K60Hz, dual monitor; 1 × IR remote control; 1 × IR receiver cable (1.5 m, 38 kHz); 2 × HDMI cables (1.5 m each); 2 × USB cables (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m); 1 × 12 V/1 A power supply with lock; 1 × 3-pin terminal connection plug; 2 × mounting brackets; 4 × screws (KM3×4); 1 × user manual in German/English
• Type 1: KVM switch
• Number of CPU: 2
• Type 2: 2-fold HDMI KVM
• Incl. KVM cableset: Yes
• Number of consoles: 1
• Screen connectors per console: 2
• Audio outputs per console: 3.5mm jack x1
• Complies with HDMI standard: 2.0
• Audio per CPU: 3.5mm jack x1
• Video outputs per console: HDMI x2
• Peripheral outputs per console: USB-A female x2
• Video inputs per CPU: HDMI x2
• USB peripherals: Yes
• USB specification: USB 3.2 Gen.1
• Article height: 3.0cm
• Article width: 10cm
• Article length: 22cm
