InLine 74920B netwerkkabel blauw 20 m Cat6a S/FTP (S-STP)

InLine 74920B networking cable Blue 20 m Cat6a S/FTP (S-STP)

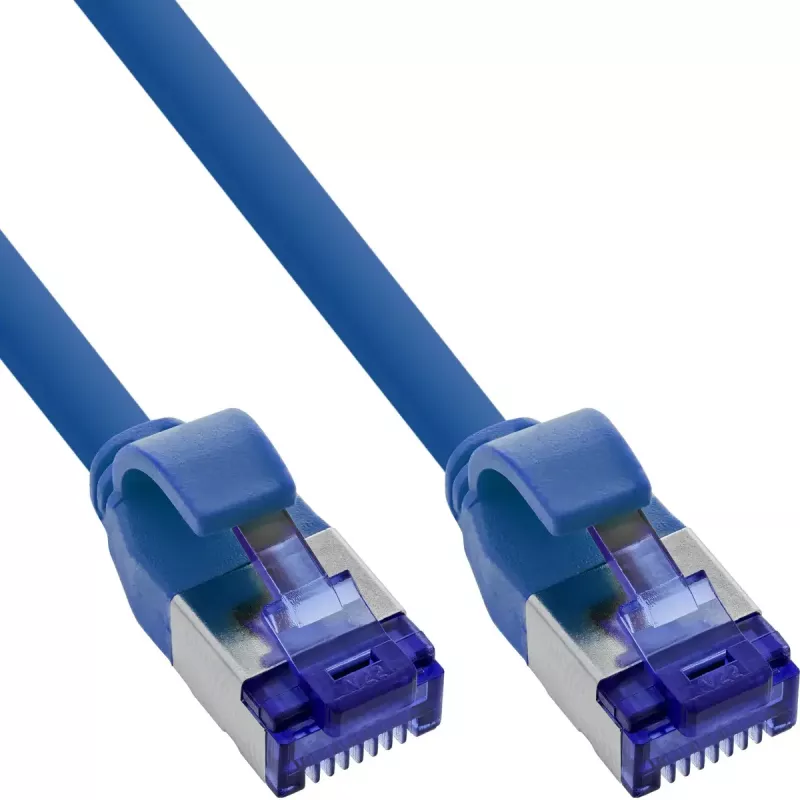

InLine 74920B is a Cat6a S/FTP (S-STP) network patch cable, 20 m long, in blue. Its space-saving slim design needs about 40% less space than conventional AWG26 patch cables, making it ideal for network cabinets and server rooms while improving airflow, cooling and efficiency. High-quality pure copper conductors deliver full Cat.6A transmission quality with up to 10 Gbit/s over lengths up to 30 metres at up to 500 MHz, and support 4PPoE (Power over Ethernet) up to 87 watts for energy-efficient operation of IP cameras, access points or VoIP phones without separate power supplies. The S/FTP double shielding (pair and overall) reliably protects against electromagnetic interference. The flexible TPE jacket (LSZH — Low Smoke Zero Halogen) is halogen-free and flame-retardant with minimal smoke in case of fire, ideal for tight cable runs and safety-critical applications. It also saves about 25% material, reducing transport and manufacturing costs. Additional specifications: AWG28 conductors, operating temperature -20 to +75 °C, outer diameter 4.5 mm, T568B 1:1 wiring, gold-plated RJ-45 connectors at both ends, data rate 10000 Mbit/s. Use: connect the RJ-45 plugs to the corresponding ports on switches, patch panels or network devices per the T568B pinout, route the slim cable through cabinet management channels, ensure the connectors latch fully, and for PoE devices confirm the switch or injector supports 4PPoE and the required wattage.

Specifications

• Country of origin: Taiwan
• Depth: 20000 mm
• Height: 12 mm
• Operating temperature (T-T): -20 - 75 °C
• Package depth: 345 mm
• Package height: 52 mm
• Package weight: 459 g
• Package width: 260 mm
• Product colour: Blue
• Storage temperature (T-T): -20 - 75 °C
• Weight: 439 g
• Width: 15 mm
• Compliance certificates: CE, REACH, RoHS

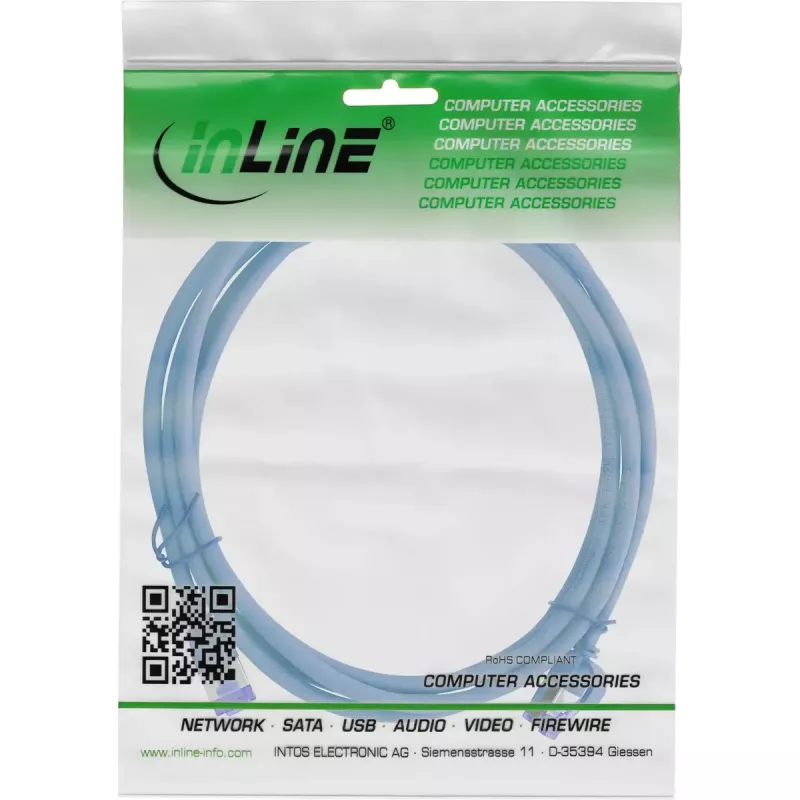

• Package type: Polybag
• Quantity per pack: 1 pc(s)
• Package volume: 4700 cm³
• Data transfer rate: 10000 Mbit/s
• Cabling technology: 10GBase-T
• Plug and Play: Yes
• Cable length: 20 m

Genuine Inline product — MPN: 74920B · EAN: 4043718335329.
