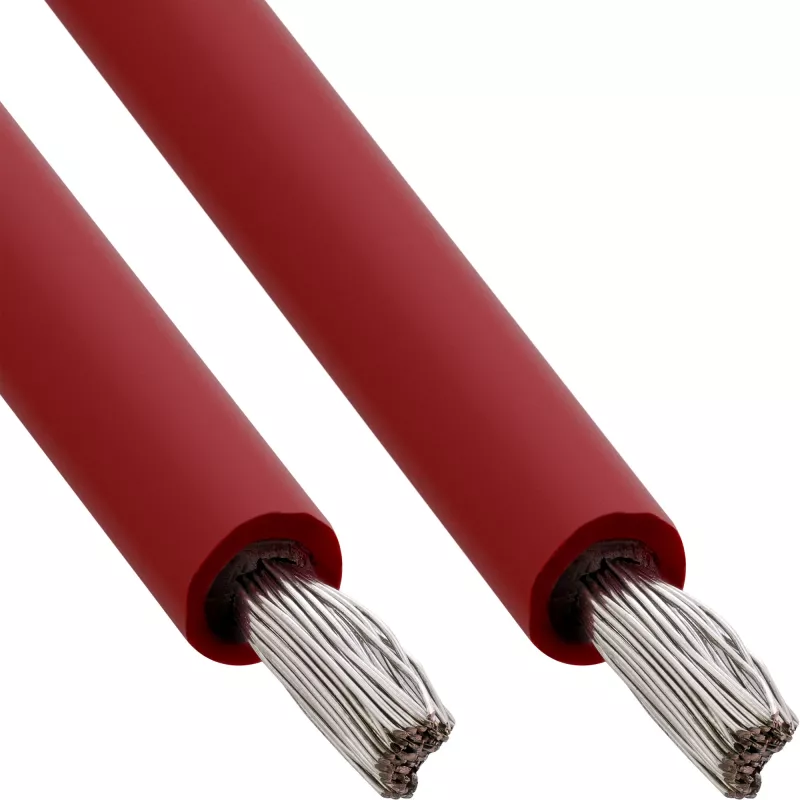

InLine 94400R zonne-installatiekabel H1Z2Z2-K, 4 mm2, 100 m, rood

The InLine 94400R is a red H1Z2Z2-K solar installation cable with a 4 mm² conductor cross-section and a 100 m length. It is designed for the cabling of photovoltaic systems, offering a nominal voltage of 1.0/1.0 kV AC and a working voltage of 1.5 kV DC in accordance with EN 50618.

Key features

• Conductor cross-section: 4 mm², fine-wired
• Conductor material: copper, tinned
• Nominal voltage: 1.0/1.0 kV AC
• Working voltage: 1.5 kV DC according to EN 50618
• Outer cable diameter: 5.5 mm
• Nominal wall thickness of insulation: 0.7 mm
• Nominal wall thickness of coating: 0.8 mm
• DC line resistance: 5.09 Ohm/km
• Voltage test on cable: AC 6.5 kV, DC 15 kV
• Current carrying capacity: tested according to EN 50618
• Ozone and weather resistance, UV resistance: tested according to EN 60 811 / 50618
• Flame resistance: complies with EN 60332-1-2, LSOH (Low Smoke Zero Halogen)
• Insulation: halogen-free, low-smoking, cross-linked polyolefin (XLPO)
• Ambient temperature: -40°C to +90 °C
• Min. bending radius: 22 mm
• Shielding: unshielded
• Length: 100 m
• Colour: Red

Specifications

• Brand: InLine
• MPN: 94400R
• Product colour: Red
• Type: Solar cables
• Signal: Power
• Diameter: 4 mm²
• Bending radius (static): >22 mm
• Operation temperature: -40 to +90°C
• EAN Barcode: 4043718334513
• Country of origin: Taiwan
