InLine 94450R zonne-installatiekabel H1Z2Z2-K, 4 mm2, 50 m, rood

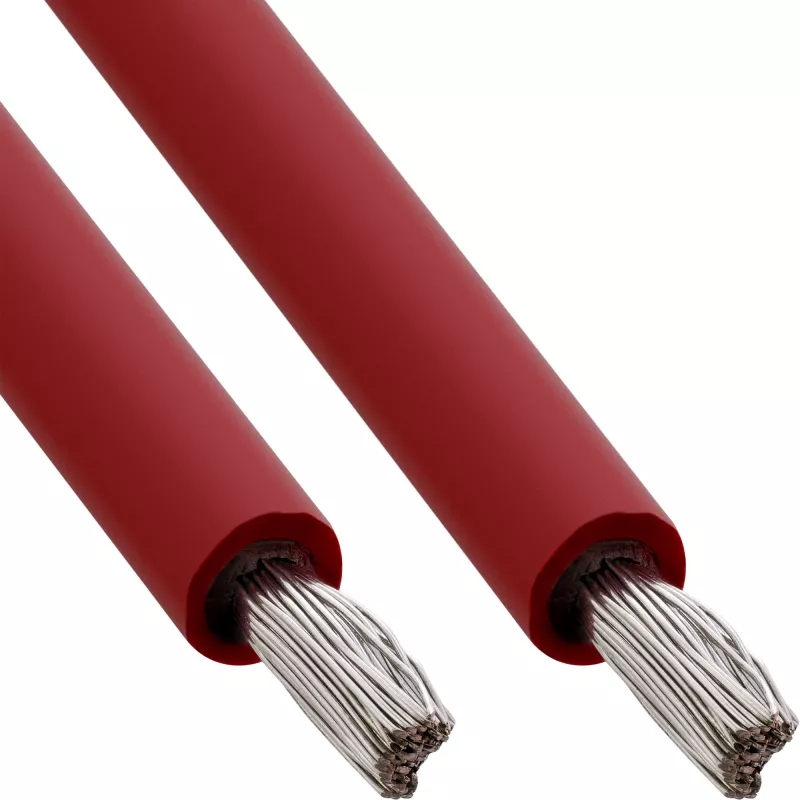

The InLine 94450R is a red solar installation cable of type H1Z2Z2-K with a 4 mm² conductor cross-section, supplied in a 50 m length. It is designed for the cabling of photovoltaic systems and features a tinned copper conductor, halogen-free XLPO insulation, and resistance to UV, ozone and weathering.

Key features

• Type: H1Z2Z2-K solar cable
• Conductor cross-section: 4 mm², fine-wired
• Conductor material: copper, tinned
• Nominal voltage: 1.0/1.0 kV AC
• Working voltage: 1.5 kV DC in accordance with EN 50618
• DC line resistance: 5.09 Ohm/km
• Voltage test on cable: AC 6.5 kV, DC 15 kV
• Ozone, weather and UV resistance tested according to EN 60 811 / 50618
• Flame resistance: complies with EN 60332-1-2, LSOH (Low Smoke Zero Halogen)
• Insulation: halogen-free, low-smoking, cross-linked polyolefin (XLPO)
• Ambient temperature: -40°C to +90 °C
• Min. bending radius: 22 mm
• Outer diameter: 5.5 mm
• Nominal wall thickness of insulation: 0.7 mm
• Nominal wall thickness of coating: 0.8 mm
• Shielding: unshielded
• Colour: Red
• Length: 50 m

Specifications

• Brand: InLine
• MPN: 94450R
• Product colour: Red
• Type: Solar cables
• Conductor cross-section: 4 mm²
• Conductor material: copper, tinned
• Nominal voltage: 1.0/1.0 kV AC
• Working voltage: 1.5 kV DC
• DC line resistance: 5.09 Ohm/km
• Voltage test: AC 6.5 kV, DC 15 kV
• Insulation: XLPO, halogen-free, low-smoking
• Flame resistance: EN 60332-1-2, LSOH
• Ozone/weather/UV resistance: EN 60 811 / 50618
• Ambient temperature: -40°C to +90 °C
• Min. bending radius: 22 mm
• Outer diameter: 5.5 mm
• Insulation wall thickness: 0.7 mm
• Coating wall thickness: 0.8 mm
• Shielding: unshielded
• Length: 50 m
• Country of origin: Taiwan
