InLine antenneaansluitdoos afgeschermd AP/UP set InLine 69983

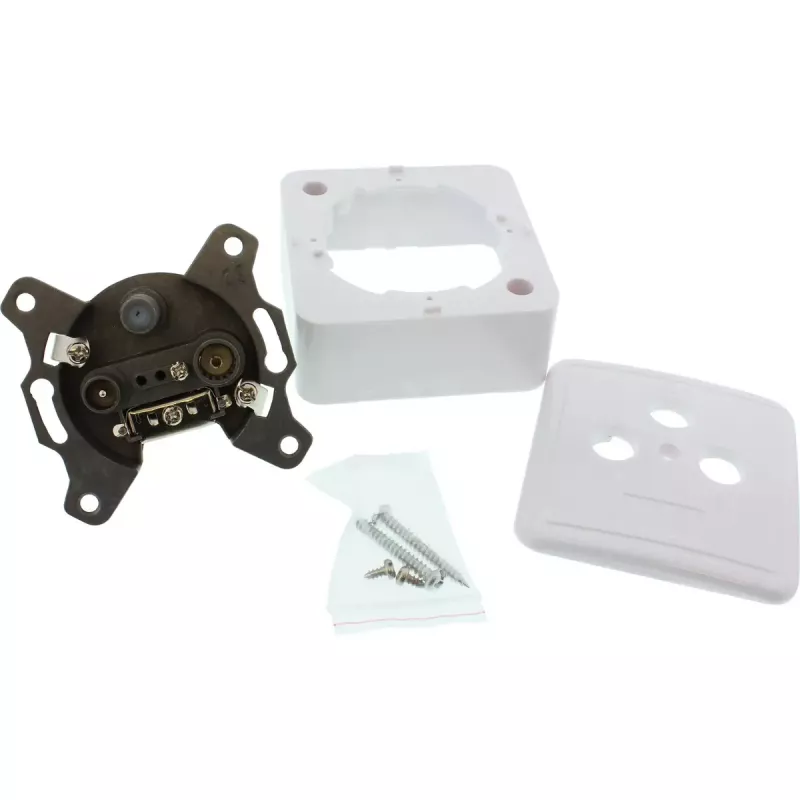

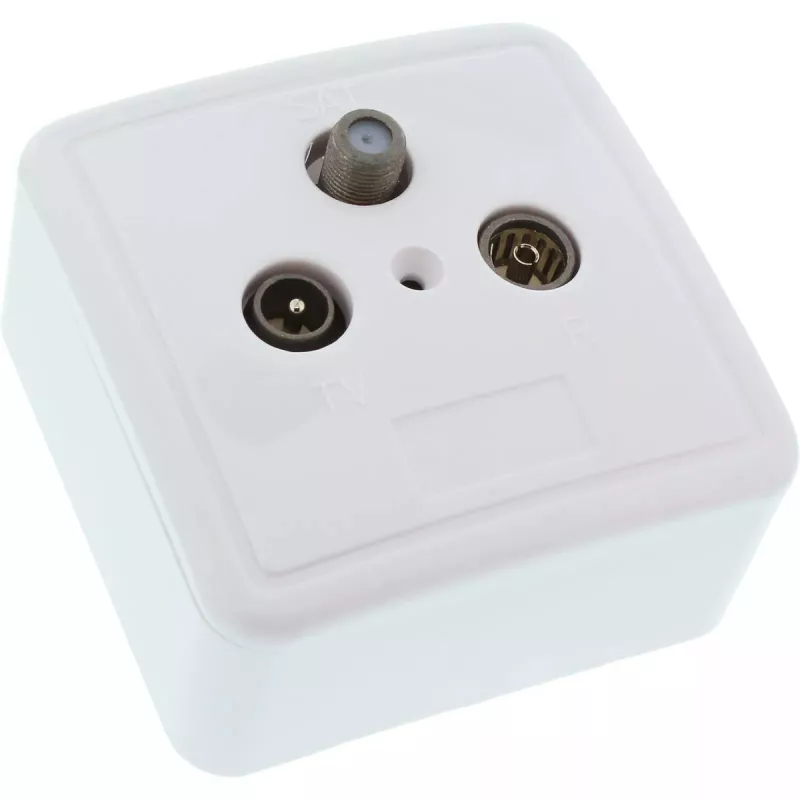

The InLine Antenna socket shielded AP/UP Set InLine 69983 is a shielded terminal socket designed for use with BK, SAT equipment, digital radio and TV. It supports special channels and return channels, and can be installed either surface-mounted or flush-mounted. The unit accepts a single module and is finished in white to blend with standard installations.

Advantages

The shielded design reduces electromagnetic interference and preserves signal integrity for SAT, TV and radio reception. Compatibility with reverse (return) channels makes it suitable for setups requiring two-way communication. The option for surface or flush mounting provides installation flexibility in different environments.

Suitable for

• SAT receivers and satellite installations
• Wall connections for digital TV and radio
• Setups requiring return-channel (upstream) connectivity
• Residential and commercial AV installations needing a single-module antenna outlet

Key specifications

• Brand: InLine
• Model / MPN: 69983
• EAN: 4017538015303
• Type: Shielded antenna terminal socket (no passthrough socket)
• Supported signals: BK, SAT, digital radio, TV; supports special and return channels
• Modules: maximum 1 module
• Installation: surface-mounted or flush-mounted
• Color: white

How to use

Install the socket at the desired outlet location either by surface mounting or by recessing it into a flush box. Connect the incoming antenna or satellite coaxial cable to the terminal according to standard F-connector or terminal wiring practices used in your installation. Tighten connections to ensure a secure, shielded contact. After connection, attach the faceplate and test reception on connected TV, SAT or radio devices to confirm signal quality.

Recommendations

For best performance, use suitable shielded coaxial cables and maintain proper grounding of the antenna system. Avoid excessive bending of the coaxial cable near the socket and verify connector tightness after installation. If return-channel services are used, confirm provider requirements for cabling and termination.
