InLine Clip Case - magnetische USB-C-behuizing voor SATA III & NVMe M.2 SSD's

Magnetic SSD enclosure for PCIe NVMe & SATA III M.2 2230 SSDs with up to 2 TB capacity
High-quality aluminum enclosure with passive cooling and shockproof design for reliable professional use
USB-C 3.2 Gen2 interface with up to 10 Gb/s data transfer rate- ideal for large media files
Tool-free installation for quick SSD changes directly in the field or at the customer
Perfect for drone recording, content creation in the field, hybrid workflows, service operations, data migration and media productions

The InLine® Clip Case is the professional storage solution for demanding applications in IT, media production, service operations and hybrid work environments. As a magnetic USB-C SSD enclosure for PCIe NVMe and SATA III M.2 2230 SSDs, it impresses with its high performance, robust design and maximum flexibility.
With a maximum storage capacity of 2 TB, the clip case offers sufficient space for large amounts of data such as 4K video material, software installations or project files. The USB 3.2 Gen2 interface enables transfer speeds of up to 10 Gb/s - ideal for professional users who rely on fast access times and short backup times.

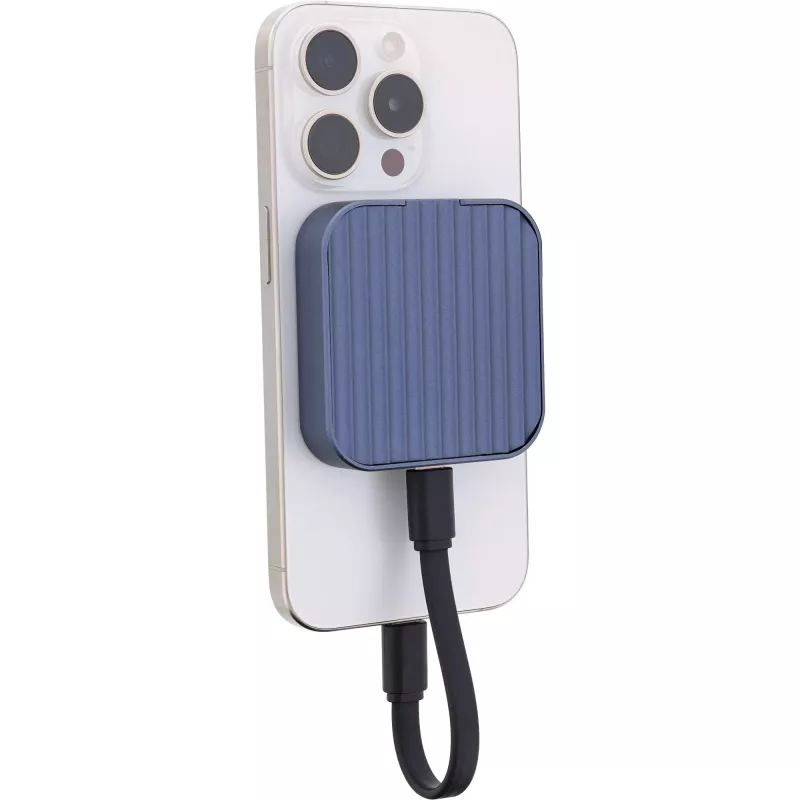

The shockproof all-aluminum housing reliably protects sensitive data on the go and, in combination with passive cooling, ensures stable and sustainable use - even under intensive workloads. The magnetic back with 17 integrated magnets enables secure attachment to compatible devices.
Thanks to tool-free installation and plug & play, the clip case is ready for immediate use - without drivers or additional software. Storage media can be replaced in seconds if required - a particular advantage for service calls, system migrations or project work on site.
The integrated Realtek RTL9210B chipset ensures stable transmissions and optimum compatibility. All common operating systems are supported - from Windows and macOS to Linux and Android. An OTG adapter is required for iPhones from model series 12 onwards.
The InLine® Clip Case offers a professional solution for mobile memory expansion - compact, powerful and reliable in everyday use. Perfect for content creation in the field(e.g. backing up drone footage directly to the SSD), service operations and data migration(e.g. quick access to system data, backups or installation files) and media production(e.g. editing and backing up large files without blocking internal storage).
Technical specifications

Chip: Realtek RTL9210B
Data transfer rate: 10 Gb/s
Supports PCIe Gen3 x2, NVMe, AHCI SATA M.2 2230
Supported SSD types: M-Key & M+B Key
Material: aluminum
Dimensions: 61.8 × 61.8 × 13 mm
Weight: 85 g
Operating temperature: 0 °C to +40 °C
Compatible operating systems: Windows 8/10 (32/64 bit), macOS 10.X+, Linux, Android

InLine Clip Case - Magnetic USB-C enclosure for SATA III & NVMe M.2 SSDs. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: M.2, PCI Express, Serial ATA III, Maximum storage capacity: 2 TB. Data transfer rate: 10 Gbit/s. Product colour: Grey. USB connector type: USB Type-C

How to use

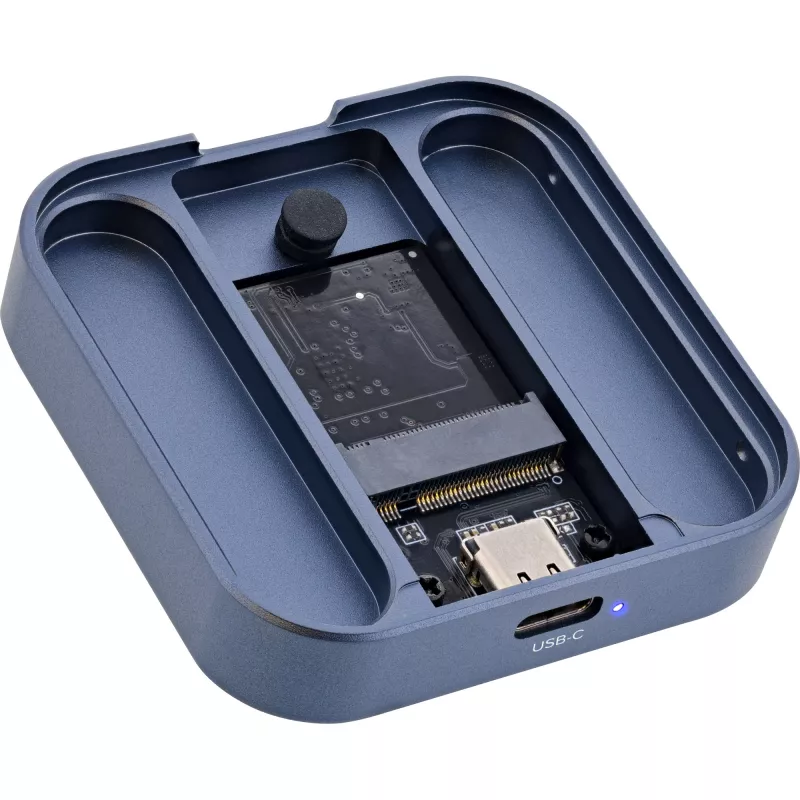

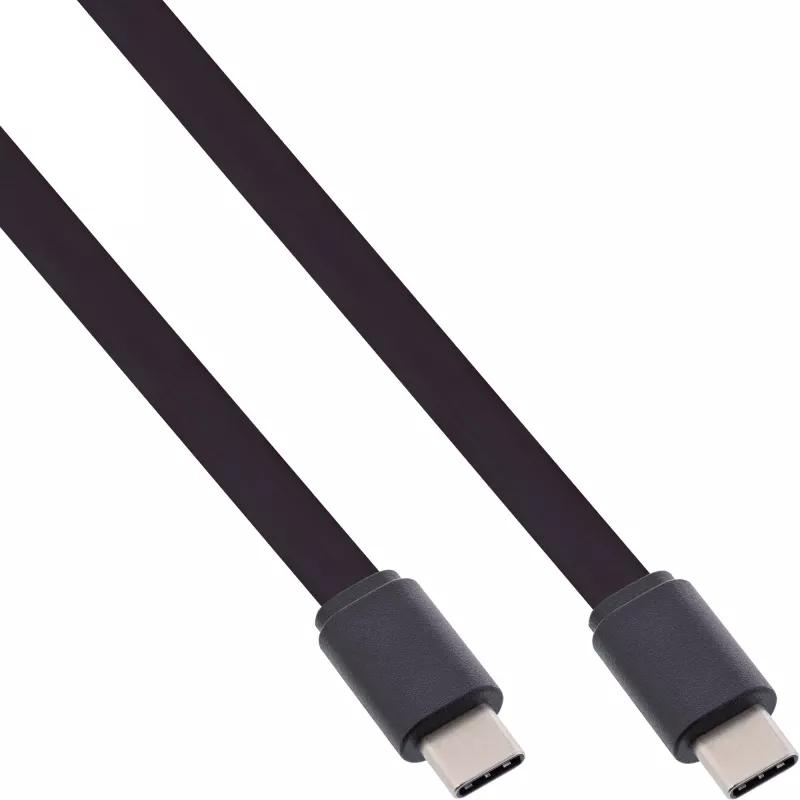

Open the housing by hand, insert a compatible M.2 2230 NVMe or SATA III SSD into the slot and close the enclosure; no tools or drivers are necessary. Connect the enclosure to a host device via the USB-C cable to access the drive. For iPhone models 12–14 an OTG adapter is required to connect and use the SSD; magnetic mounting works from iPhone 12 series onward. When connecting to a computer for the first time, the drive may require formatting to the desired file system before use.

Recommendations

Use high-quality M.2 2230 NVMe or SATA III SSDs within the supported capacity (up to 2 TB). Avoid exposing the enclosure to temperatures outside the 0–40 °C range. For sustained heavy write workloads, allow airflow around the aluminium body to assist cooling and maintain performance.
