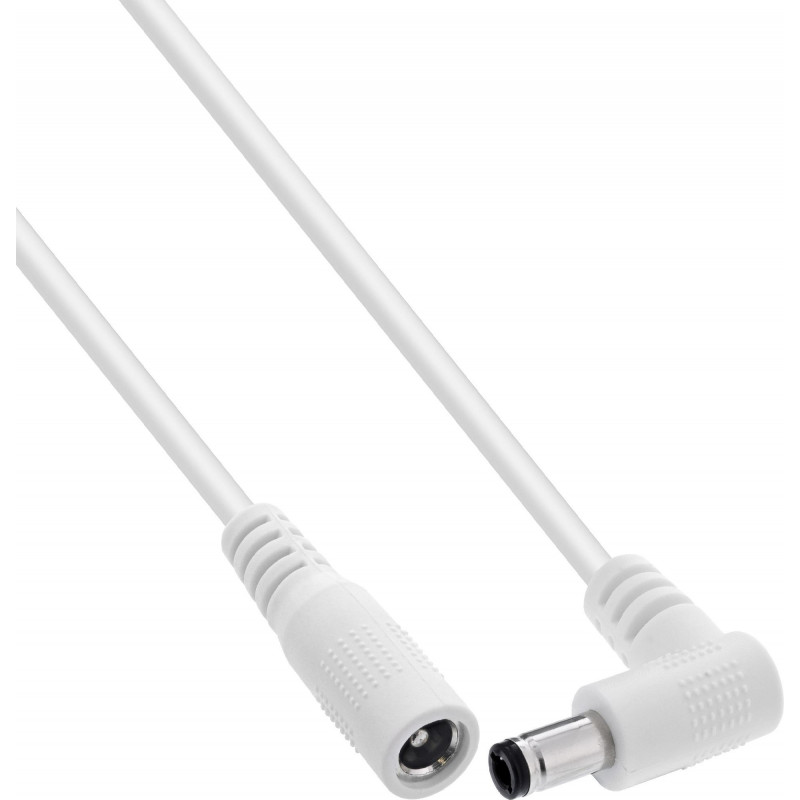

InLine® DC-verlengkabel, haakse stekker, 5,5 x 2,1 mm, wit, 0,2 m

The InLine® DC extension cable with a right-angle plug extends existing DC power connections. It features a 5.5 x 2.1 mm DC plug and socket, a 2-core AWG 18 cable with PVC sheath, and is suitable for 12–24 V DC applications up to 140 W.

Key features

• Right-angle DC plug for space-saving connection
• Straight DC socket
• 2-core cable with PVC sheath
• Nickel-plated contact housing
• Unshielded

Specifications

• Brand: InLine
• MPN: 26906M
• Product type: Power Cord
• Connector A: DC plug, angled
• Connector B: DC socket, straight
• Connector dimensions: 5.5 x 2.1 mm
• Conductor cross-section: AWG 18
• Cable construction: 2-core
• Cable sheath: PVC
• Outer cable diameter: 5.0 ± 0.2 mm
• Contact housing: Nickel-plated
• Operating voltage: 12–24 V (DC)
• Maximum power: 140 W
• Colour: White
• Cable length: 0.2 m
• Jacket material: Polyvinyl chloride (PVC)
• AWG wire size: 18
