InLine Desktop KVM-switch, 2-poorts, dual monitor DisplayPort 1.2, 4K, USB 2.0

True Transparent USB Emulation Technology for Keyboards and Mouse

The InLine® 63642I is a 2-port dual monitors USB KVM switch designed for sharing two multimedia computers to two flat panel displays. Its audio and mic switching feature gives you an uninterrupted audio experience that maximizes your multimedia application with KVM operation. The DisplayPort version 1.2 technology provides a sufficient bandwidth that is demanded by 4K ultra-high definition display.

Audio and microphone switching offers uninterrupted multimedia experience

The audio and microphone switching function of KVM Switch allows you to leverage the multimedia systems on each of your two computers. You can monitor the audio/ mic input/ output of each computer without plugging on and off the audio/mic cables. User can also choose to use either independent/ simultaneous switching of both PC port and audio/ microphone port for their maximum convenience. Furthermore, it offers you user-programmable simultaneous/ independent PC and audio/mic switching function for flexible multimedia and KVM switching operation.

True Transparent USB Emulation for all advanced keyboards and mice

With the TTU Emulation Technology, which embodies itself within a new ASIC chip, the DisplayPort Dual Monitors USB KVM Switch is capable of a complete versatility in dealing with the functional requirements of all types of advanced keyboards and mice. No matter users are using gaming mice or gaming keypads for high performance in exciting gaming sessions, or they are using same advanced keyboards and mice in other high-profile computer maneuvering actions, they can always appreciate what the TTU technology can do for them – a smooth and faithful emulation that not only duplicate all the functionalities of that keyboard and mouse, but also stabilize the switching actions with a impressive switching speed.

4K for excellent image quality

4K Ultra HD delivers four times the Full HD quality which means more sharply detailed images can be displayed but also less visible pixel appeared. It perfectly applies in the field of graphic design or exhibition, such as CAD/CAM or demo room. These reasons results in the market of 4K-enabled computers and displays are growing gradually. In order of meet the demand for 4K video streaming, the KVM switch is fully supported the specification of DisplayPort 1.2. Moreover, the backward compatibly is supported as well.

Features:
2-port Dual Monitors DisplayPort USB KVM Switch w/ audio & mic
True Transparent USB (TTU) emulation technology for any keyboard and mouse
Support dual monitor/flat panel display both on console and remote
2 extra USB 2.0 device port for high-speed USB device sharing
Independent peripheral switching configurable by hotkeys
2 channel stereo sound for theater audio experience
Simultaneous/independent switching of audio/ device/ PC ports
Resolution support up to 3840 x 2160 @30Hz
Full driver support for all types of USB keyboards and mice
Port selection by push buttons and keyboard hotkeys
Multi-platform support PCs and Mac
Status LED display for easy port status monitoring
Buzzer sound for port switching confirmation
Metal enclosure for best shielding and protection

Specifications

Ports: 2
Console Keyboard: USB Type A Female
Console Mouse: USB Type A Female
Console Video: 2x DisplayPort Female
Audio: 2x 3.5mm Audio/ Mic Jack Female
PC Keyboard/Mouse: 2x USB Type B Female
PC Video: 4x DisplayPort Female
TTU: Yes
Additional USB Device: 2x USB Type A Female
PC port LEDs: 2 (Green)
Hub port LEDs: 2 (Red)
PC Selection: Push Button / Hotkeys
Display Resolution: 3840 x 2160 (@30Hz)
Operating Temperature 0~40°C
Storage Temperature: -20~60°C
Humidity Limits: 0~90% RH, Non-Condensing
Weight: 750g
Dimension (LxDxH): 163x100x66mm

InLine Desktop KVM Switch, 2-port, Dual Monitor DisplayPort 1.2, 4K, USB 2.0. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black. Width: 100 mm, Depth: 160 mm, Height: 65 mm. Package width: 160 mm, Package depth: 270 mm, Package height: 195 mm

How to use

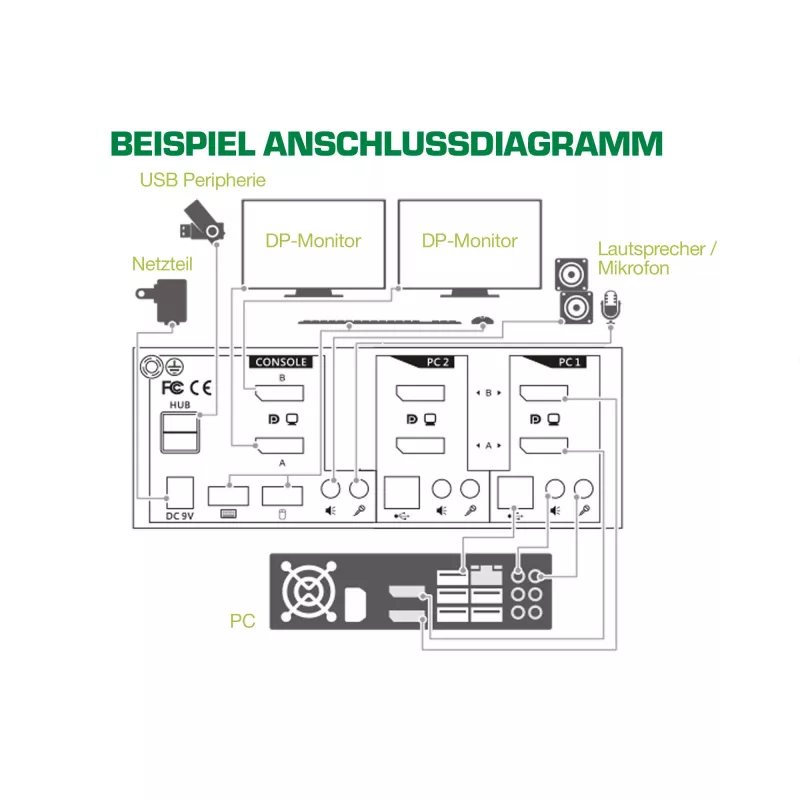

Connect each computer to the KVM switch using the DisplayPort and USB cables for video and keyboard/mouse control, and connect the console monitors and input devices to the console ports. Attach audio and microphone cables if you need to share multimedia between machines. Power the unit if required, then switch between computers using the front push buttons or keyboard hotkeys; status LEDs and an optional buzzer indicate the active port.

Recommendations

For best results with 4K displays, use DisplayPort 1.2–compatible cables and verify that connected computers support 3840 x 2160 @30Hz. If you use high-performance gaming peripherals, confirm driver compatibility on each computer to ensure full functionality through the TTU emulation.
