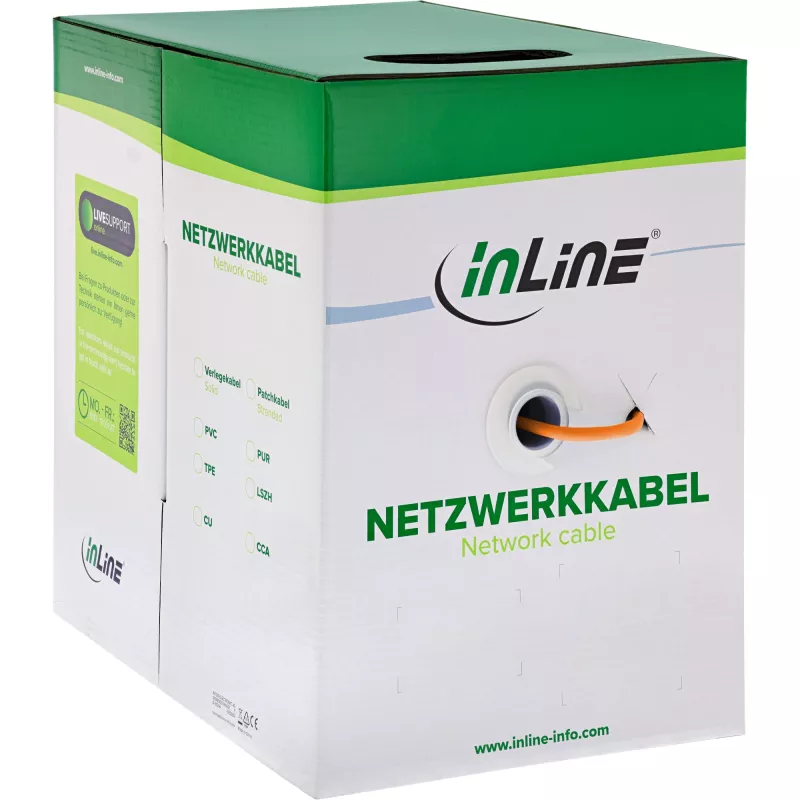

InLine solid installatiekabel 250MHz S/STP Cat.6 CU AWG23 halogeenvrij 50m

The InLine Solid Installation Cable 250MHz S/STP Cat.6 CU AWG23 halogen free 50m is a 50-metre solid conductor network cable designed for fixed installations requiring Cat.6 performance. Rated to 250 MHz and supporting data transfer rates up to 10 000 Mbit/s, the cable uses copper conductors of AWG23 and S/FTP (screened/foiled twisted pair) shielding to reduce crosstalk and external electromagnetic interference. The halogen-free jacket improves safety in enclosed spaces by reducing toxic and corrosive gas emissions in the event of fire. The cable's bright orange outer sheath aids visibility in cable runs and routing during installation.

Advantages

The cable combines solid AWG23 conductors with S/FTP shielding to deliver stable signal integrity and consistent Cat.6 performance over installed lengths. Halogen-free material provides improved safety characteristics for use in buildings and enclosed installations. The 250 MHz frequency rating and support for multi-gigabit throughput meet common requirements for modern Ethernet networks, while the 50 m length suits medium-length runs without the need for splices.

Suitable for

• Permanent in-wall or in-ceiling Ethernet installations
• Structured cabling in offices, data closets and server rooms
• Connections requiring reduced electromagnetic interference and improved pair-to-pair shielding
• Environments where halogen-free cables are required for safety regulations

Key specifications

• Cable category: Cat.6
• Frequency rating: 250 MHz
• Conductor type and size: solid copper, AWG23

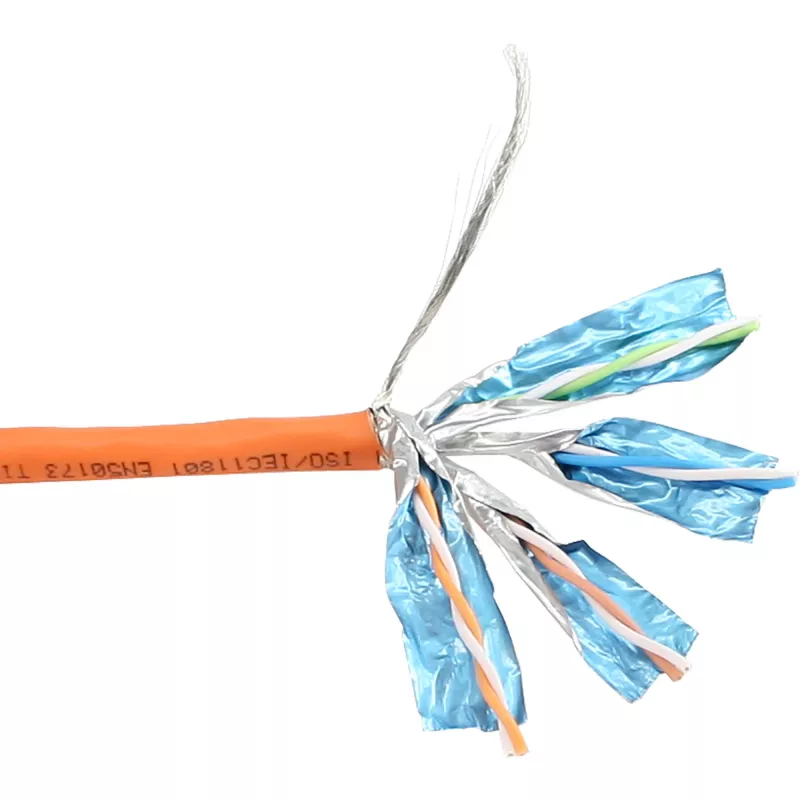

• Shielding: S/FTP (overall braid with individual foil around each pair)
• Jacket material: halogen-free compound
• Length: 50 m
• Outer colour: orange
• Designed for fixed installation (solid conductor)

How to use

For fixed installations, run the cable through conduits, risers or inside walls and ceilings according to local building codes. Terminate each solid conductor at appropriate RJ45 keystone jacks or patch panels designed for solid AWG23 conductors, following T568A or T568B wiring standards consistently at both ends. Use proper cable preparation tools to avoid nicking conductors; ensure shields are correctly connected to grounding points where required to preserve S/FTP effectiveness. Observe the maximum recommended channel and permanent link lengths for Cat.6 installations to maintain performance.

Recommendations

Store and install the cable away from sources of high electrical noise and separate from mains power where possible. Maintain the cable's minimum bend radius during routing, avoid tight bends and excessive pulling tension, and ensure shielding continuity for optimum interference protection. Use compatible, high-quality jacks and panels rated for Cat.6 to achieve expected data rates.
