AZO Digital DC-DC spanningsomvormer 10-20 VDC / 24 VDC 500W IP21

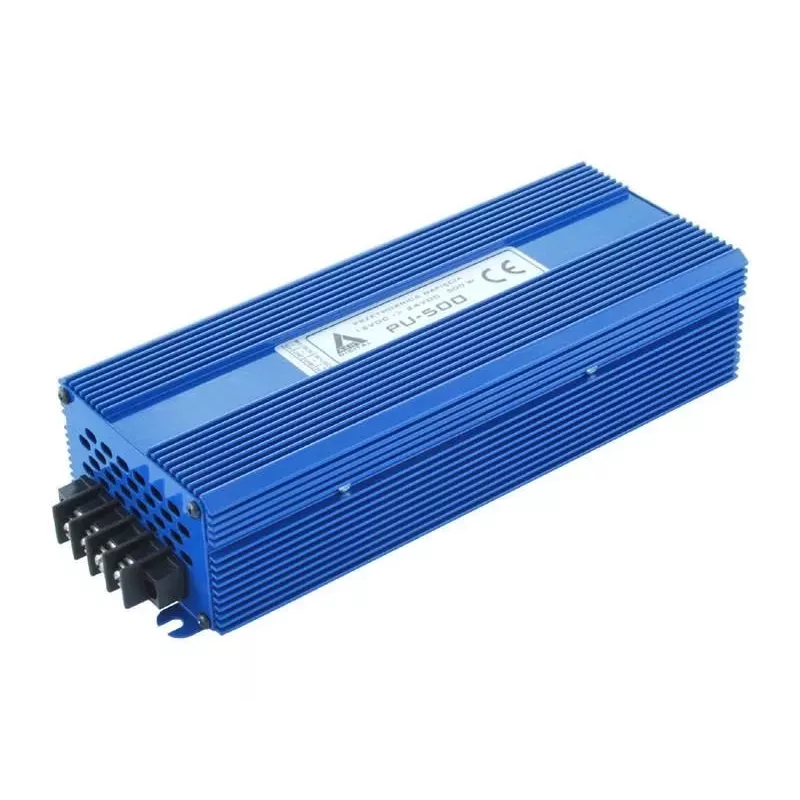

The AZO Digital PU-500 is a high-performance DC-DC voltage converter designed to step up an input voltage of 10-20 VDC to a stable 24 VDC output. With a continuous output power of 500W and an efficiency exceeding 90%, this converter is ideal for demanding industrial and commercial applications. Its robust aluminum housing and active fan cooling ensure reliable operation even in harsh environments.

Advantages

High efficiency reduces energy loss and heat generation. Active cooling maintains performance under full load. Comprehensive protection features safeguard both the converter and connected equipment. Compact surface-mount design simplifies installation.

Suitable for

• Industrial automation systems requiring 24V power from 12V battery banks
• Telecommunications equipment
• LED lighting installations
• Security and access control systems
• Any application needing a stable 24V supply from a variable 10-20V source

Key specifications

• Input voltage: 10-20 VDC (nominal 12 VDC)
• Output voltage: 24 VDC
• Continuous output power: 500 W
• Continuous output current: 20.8 A
• Efficiency: >90%
• Cooling: Active (fan)
• Protection: Reverse polarity, under-voltage, overload, short circuit, over-voltage, over-temperature
• IP rating: IP21
• Operating temperature: -25°C to +55°C
• Connectors: Screw terminals
• Housing: Aluminum
• Mounting: Surface mount

Recommendations

For optimal performance, ensure adequate ventilation around the converter. Use appropriately sized wiring for the input and output connections. This converter is non-isolated; verify system grounding requirements.
