InLine USB3.2 Gen.2 USB-C naar M.2 SSD (PCIe NVMe & SATA) behuizing

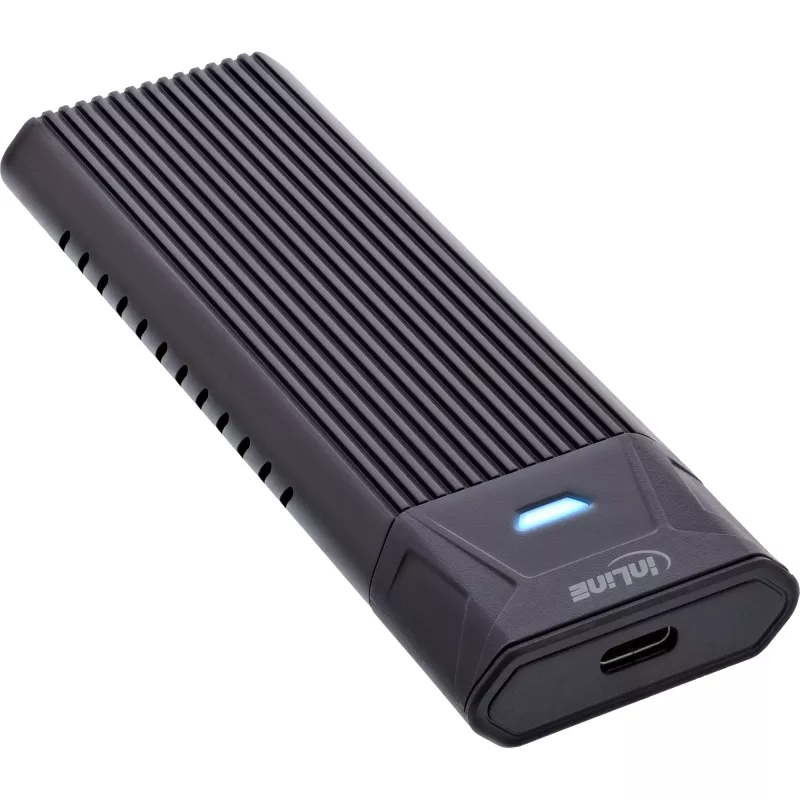

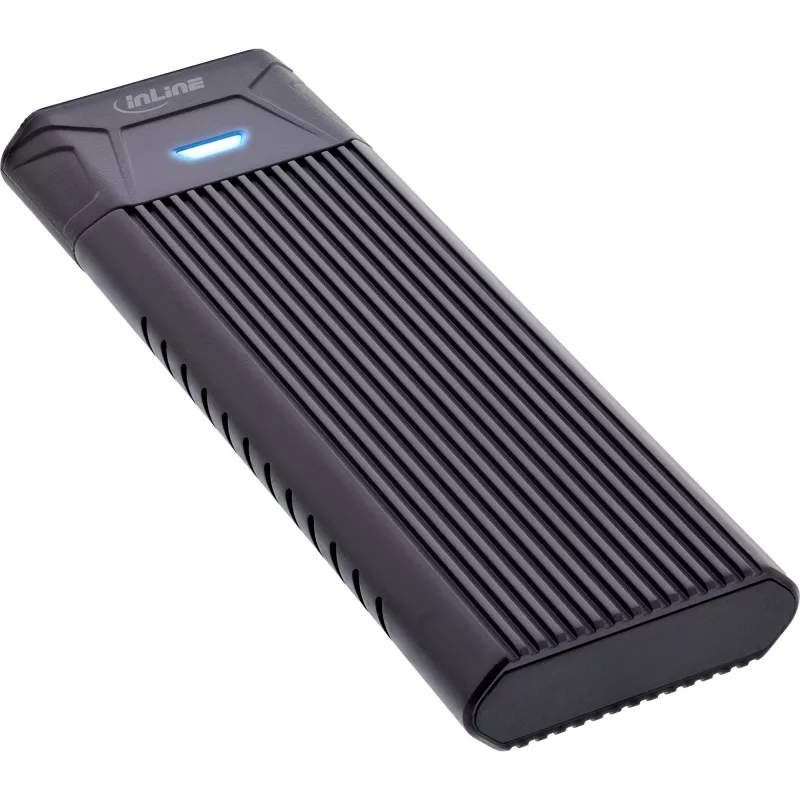

The InLine USB3.2 Gen.2 USB-C to M.2 SSD enclosure supports both PCIe NVMe and SATA M.2 SSDs and offers a compact, metal-cased solution for fast external storage. Equipped with a Realtek RTL9210B chipset, it automatically recognises the connected M.2 drive and provides USB 3.2 Gen.2 performance with data rates up to 10 Gb/s. The enclosure accepts M.2 2242, 2260 and 2280 formats and is compatible with Windows, macOS, Linux, Chrome OS and Android.

Advantages

The enclosure provides high transfer speeds via USB 3.2 Gen.2 (up to 10 Gb/s) and supports both NVMe and SATA M.2 drives for maximum flexibility. Tool-free installation allows quick swapping of drives without screws, while the metal housing with cooling fins on both sides improves heat dissipation for stable operation. The device is plug & play and requires no driver installation.

Suitable for

• Fast file transfer and backup of large data sets
• Expanding external storage for laptops and desktops
• Cloning or testing M.2 SSDs in service and system environments
• Portable, high-speed access to NVMe or SATA M.2 drives

Key specifications

• Interface: USB-C (USB 3.2 Gen.2, up to 10 Gb/s)
• Supported M.2 formats: 2242 / 2260 / 2280
• Supported drive types: PCIe NVMe and SATA M.2 SSDs
• Chipset: Realtek RTL9210B (automatic drive detection)
• Connectors: 1× USB-C, 1× 67-pin M.2 slot
• Compatibility: Windows, macOS, Linux, Chrome OS, Android
• Colour: Black

How to use

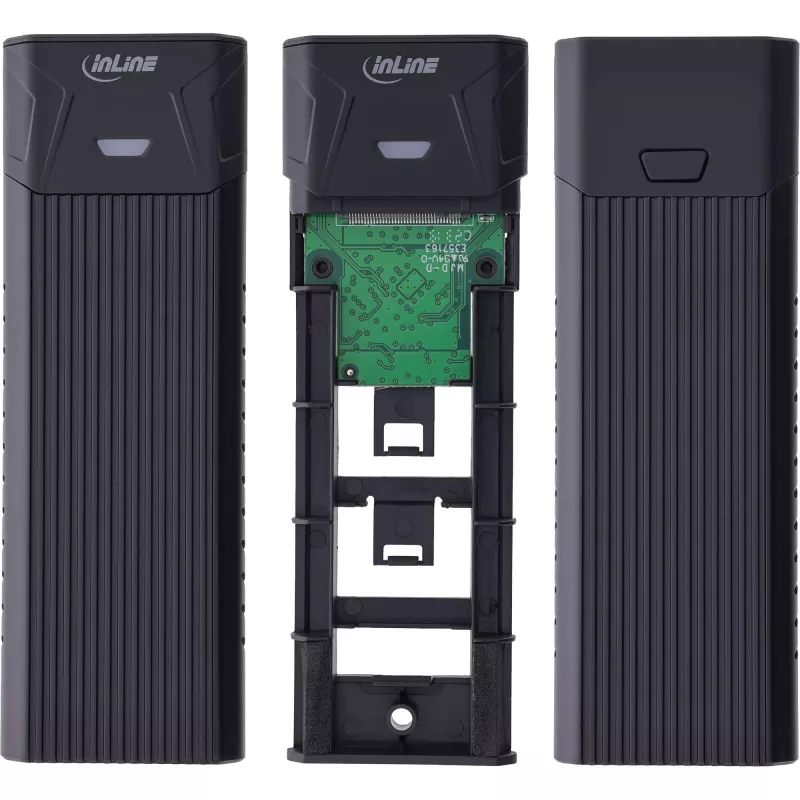

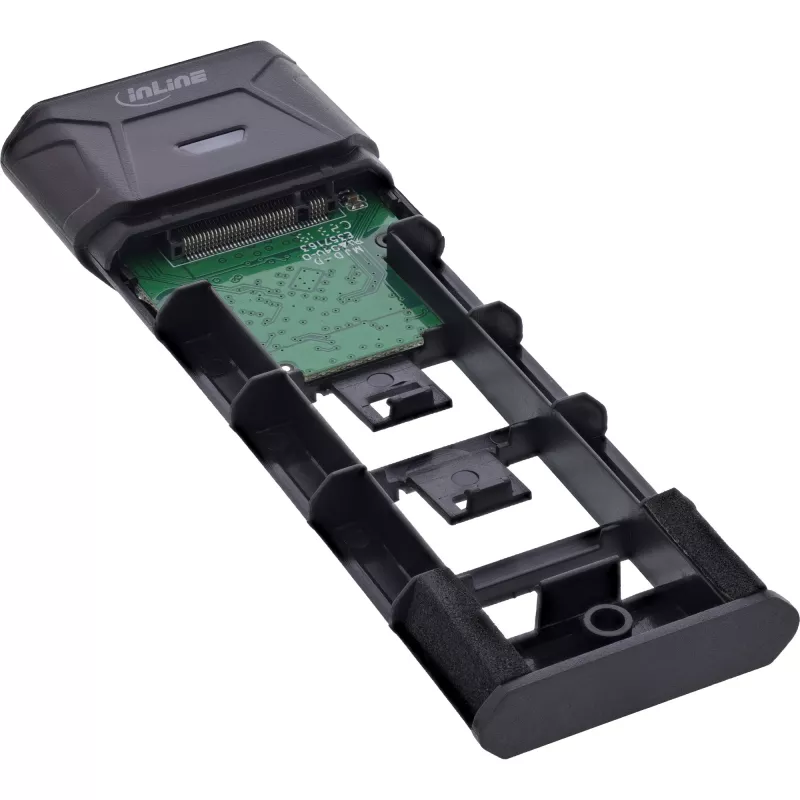

Open the tool-free enclosure, insert the M.2 SSD in the correct orientation into the 67-pin slot and secure it according to the enclosure’s guide. Close the case, connect the USB-C cable to a computer or compatible host device and the enclosure will be recognised automatically. Transfer files using the host operating system’s file manager or cloning tools as needed.

Recommendations

For optimal thermal performance, ensure the cooling fins are not obstructed and avoid placing the enclosure on soft surfaces that block airflow. Use a USB 3.2 Gen.2 port or a compatible USB-C host to achieve maximum transfer speeds.
