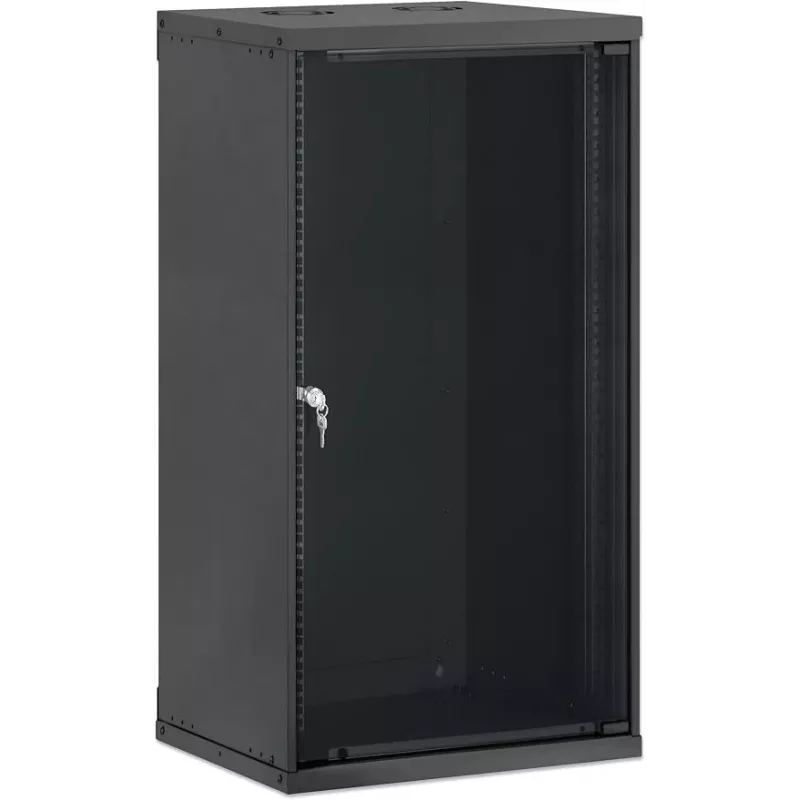

Intellinet 19 inch wandbehuizing Basic Line 20U 400mm diepte zwart RAL 9005 716734

This 19-inch wall-mount enclosure provides a secure, space-saving housing for network equipment. With a 20U capacity and 400 mm depth, it accommodates standard 19" rack-mount devices while keeping a low profile on the wall. The black RAL 9005 steel construction offers durability, and the lockable tempered glass front door protects installed components from unauthorized access.

Advantages

Flatpack delivery reduces shipping volume and cost; the enclosure assembles on site with basic tools. Removable side panels and top/bottom cable entry points simplify installation and cable management. Passive ventilation keeps equipment cool, and the enclosure is fan-ready for active cooling if needed. Adjustable mounting rails support various equipment depths.

Suitable for

• Small to medium network installations in offices, retail, or schools
• Wall-mounting network switches, patch panels, and servers
• Freestanding use when wall mounting is not possible
• Environments requiring locked equipment access

Key specifications

• Rack type: Wall-mount enclosure
• Rack size: 19 inch
• Rack units: 20U
• External depth: 400 mm
• Colour: Black (RAL 9005)
• Material: Steel
• Front door: Tempered glass, lockable
• Side panels: Removable
• Cable entry: Top and bottom
• Ventilation: Passive, fan-ready
• Mounting rails: Adjustable
• Compliance: EIA-310-D
• Optional castors: Available (not included)

Recommendations

Ideal for structured cabling projects where floor space is limited. Pair with Intellinet patch panels and cable management accessories for a tidy, professional installation.
