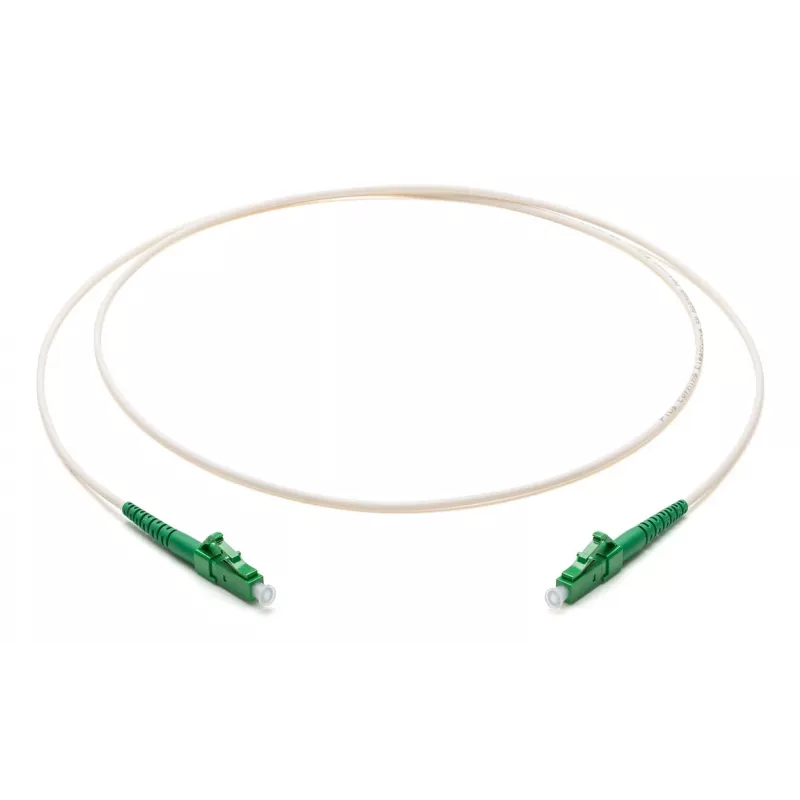

Corning LC/APC naar LC/APC simplex single-mode OS2 glasvezel-patchkabel, 2,0mm, 30m, wit F222201J1Z20030M

Data center technicians and telecom installers rely on this Corning fiber patch cable for clean, low-loss links between LC/APC ports in patch panels, switches, and FTTx equipment. The 30-meter length reaches across racks or between adjacent rooms, while the white LSZH jacket keeps installations tidy and compliant in plenum spaces.

Key specifications

• Connector A: LC/APC
• Connector B: LC/APC
• Fiber mode: Simplex
• Fiber type: Single-mode (OS2)
• Cable length: 30 m
• Cable diameter: 2.0 mm
• Jacket color: White
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss (typical): ≤ 0.25 dB
• Return loss (typical): ≥ 65 dB
• Ferrule material: Zirconia Ceramic
• Cable construction: Tight-buffered
• Operating temperature: -10°C to +60°C
• Minimum bend radius: 10 mm
• Polarity: A-B Straight
• Wavelength support: 1310 nm, 1550 nm
• Durability: 500 mating cycles

Why choose it

APC connectors deliver superior return loss for high-power and analog signals, making this cable ideal for demanding network backbones. The 2.0mm simplex construction is easy to route in dense fiber trays, and the LSZH jacket reduces toxic smoke in fire conditions.

Ideal use cases

• Data center fiber patching
• Telecom central offices
• FTTx distribution points

Good to know

Compliant with IEC 61754-20 and TIA/EIA-604-10 for LC connector interface.
