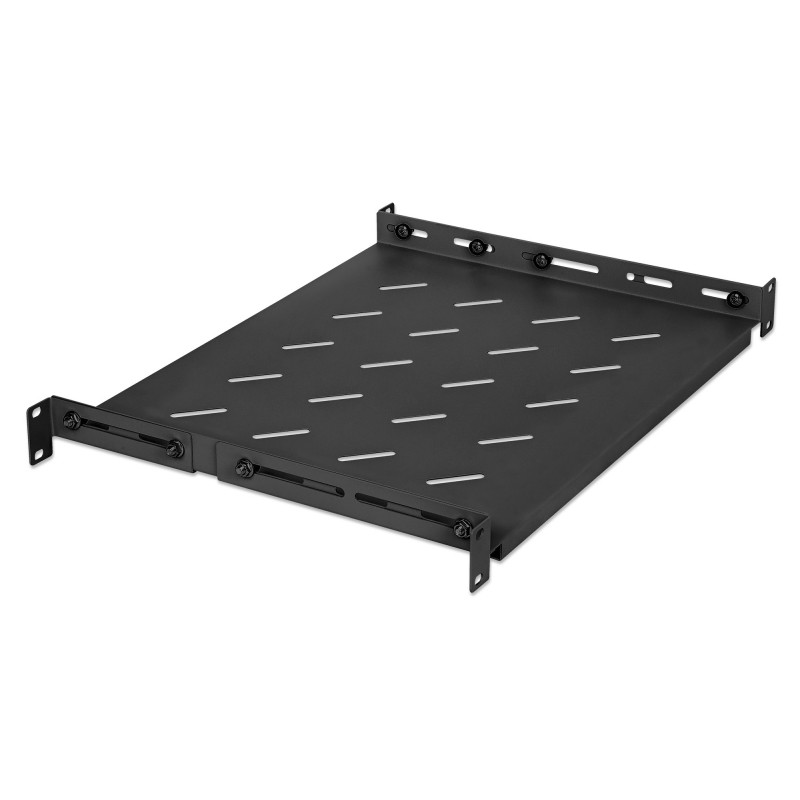

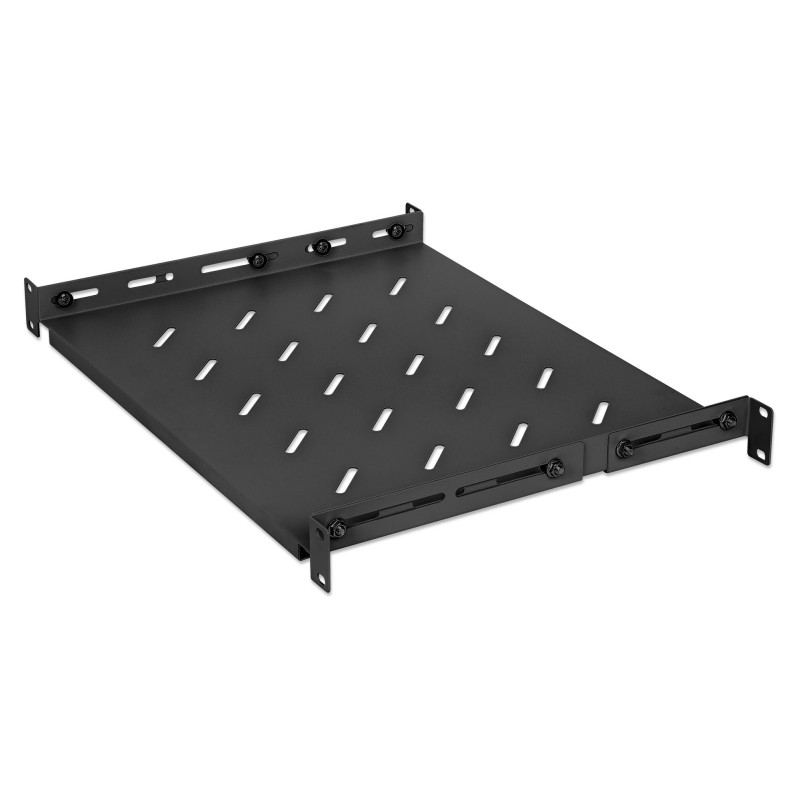

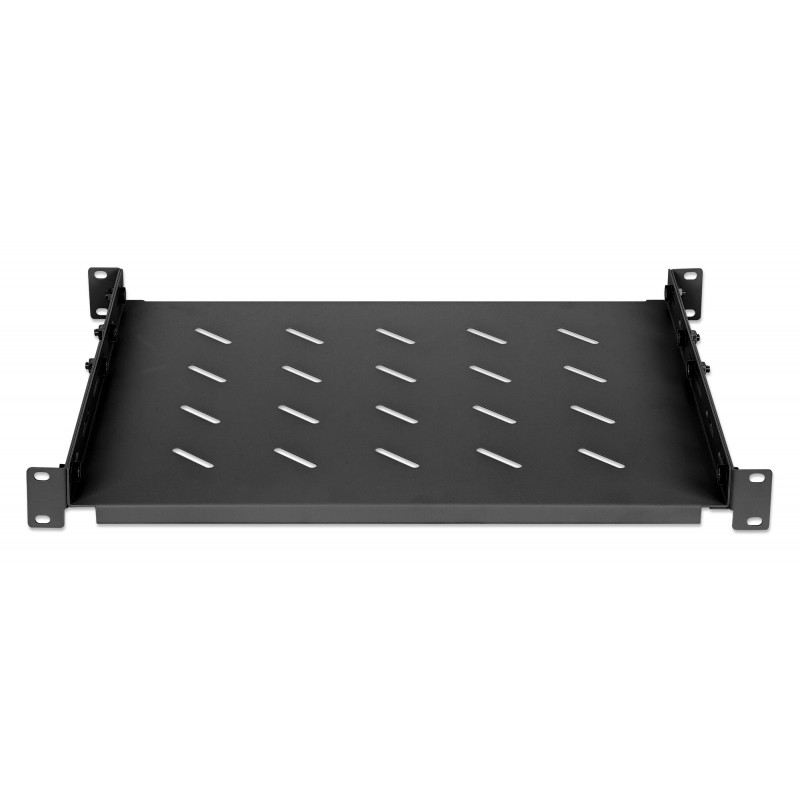

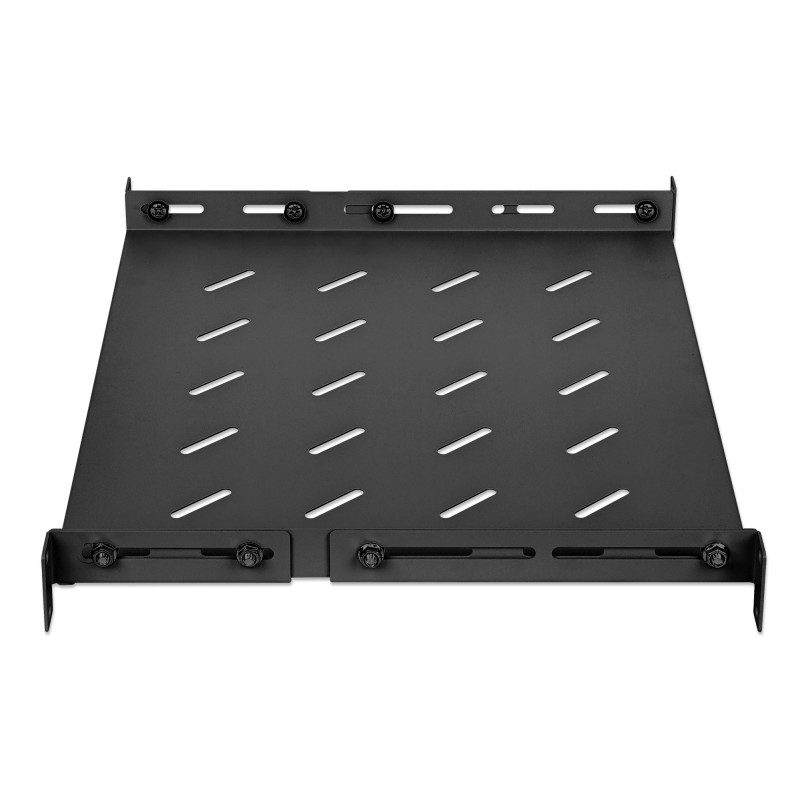

Intellinet rack - plank - met variabele rails, vaste montage - zwart, RAL 9004 - 1U - 48,3 cm (19)

Rack space is precious, but not every device comes ready to slide into your cabinet. This Intellinet rack shelf solves that problem by providing a sturdy, fixed platform for non-rackmount equipment, tools, or spare parts. With adjustable mounting rails that slide from 300 to 600 mm, it adapts to your cabinet's depth, ensuring a secure fit without wasted space.

Who is it for

IT technicians, network installers, and data center managers who need to mount non-standard equipment, such as small switches, modems, or test gear, in a standard 19-inch rack. It's also ideal for storing tools, documentation, or backup devices that don't have their own rack ears.

Main features

• Fits standard 19-inch rack cabinets and enclosures
• 1U height, solid steel construction with black powder-coated finish

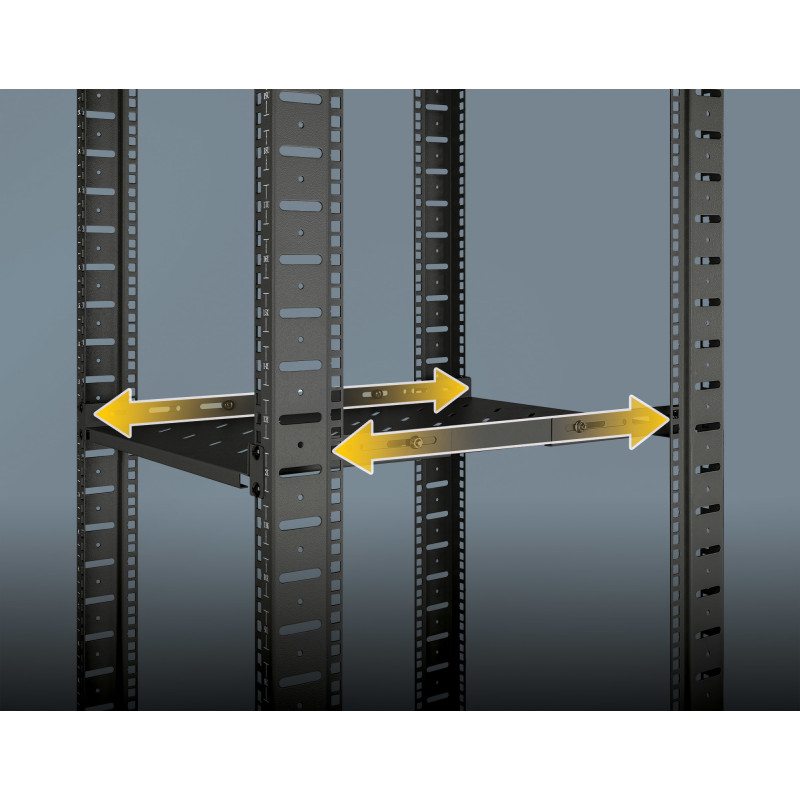

• Adjustable mounting depth from 300 to 600 mm to match your cabinet
• Fixed 4-point mounting for stability
• Supports up to 25 kg of equipment
• Includes all necessary mounting hardware (screws and cage nuts)

Specifications

• Product type: Rack shelf
• Rack capacity: 1U
• Rack width: 19 inch (48.3 cm)
• Mounting type: Fixed (4-point)
• Adjustable mounting depth: 300 - 600 mm
• Shelf depth: 350 mm
• Material: Steel
• Colour: Black (RAL 9004)
• Finish: Powder coated
• Load capacity: 25 kg
• Design: Solid (non-vented)
• Included accessories: Mounting hardware (screws, cage nuts)

Tips

Before installation, measure the depth of your rack cabinet and adjust the shelf rails accordingly. Use all four mounting points for maximum stability, especially when supporting heavier equipment. For a clean look, align the shelf with adjacent rack units and use cage nuts to secure it firmly.
