Interne Ethernet-netwerkkaart InLine 51127C 1000 Mbit/s PCI Express

Six RJ45 Gigabit portsfor a stable and fast network connection
PCIe x4 interfacefor high bandwidth and efficient data transmission
Supports VLAN (802.1Q), jumbo frames (up to 9K) and flow control
Ideal for servers, workstations and AV applications
Intel I350AM4 chipsetfor high performance and energy efficiency

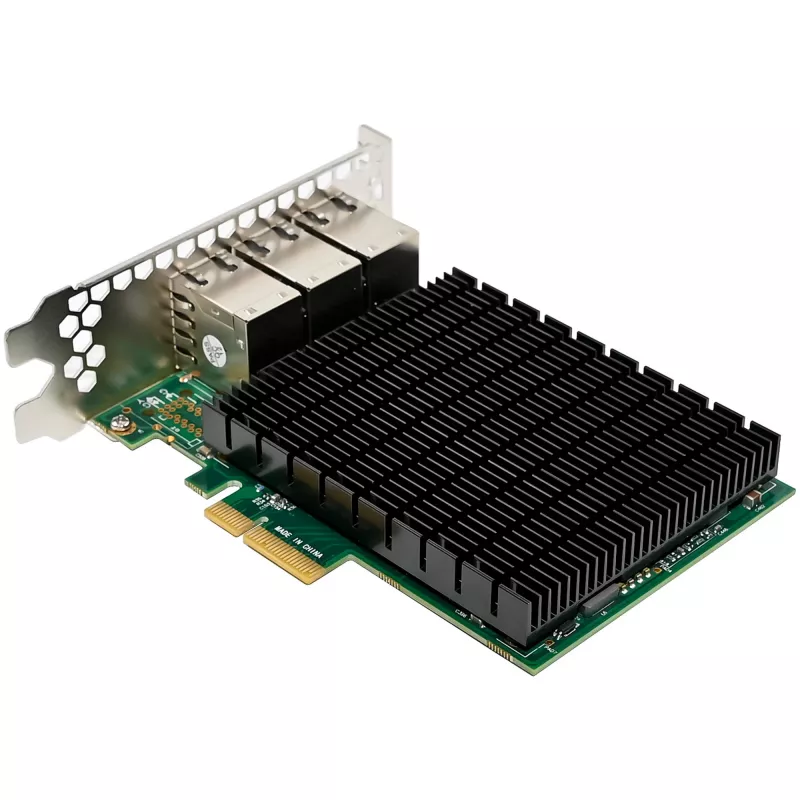

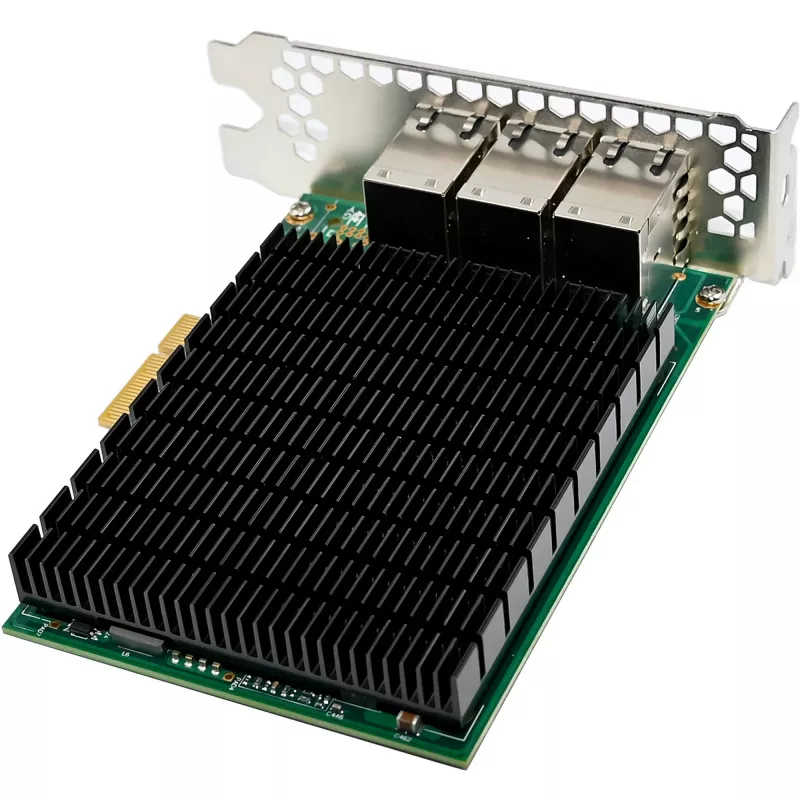

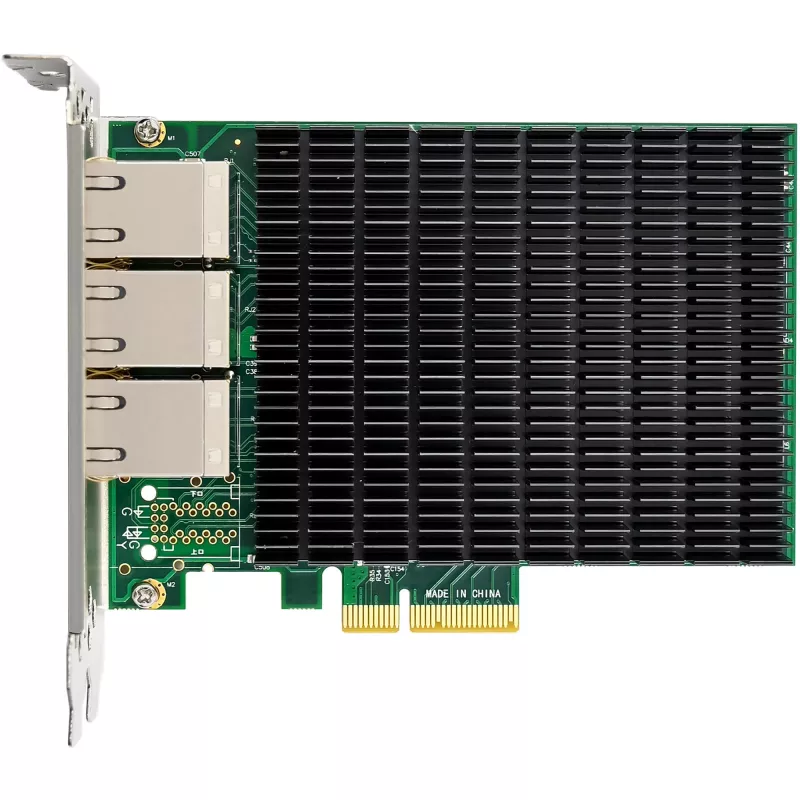

The InLine® 6-way Gigabit network cardis a powerful network solution for professional server, workstationand AV applications. With six Gigabit Ethernet ports, it offers high flexibility and stabilityfor demanding network environments.
Thanks to a data rate of up to 1 Gb/sper port, the card supports modern network technologies such as VLAN (802.1Q), Flow Control (802.3x) and Jumbo Frames (up to 9K). The Intel I350AM4 chipsetensures efficient network processing and optimized resource usage.
Thanks to the PCIe x4 interface (v2.1), the card achieves a high bandwidth of up to 5 GT/sand is compatible with various system configurations. Energy Efficient Ethernet (802.3az)helps to reduce energy consumption.
Technical data:

Bus type: PCIe v2.1 (5 GT/s) x4 lanes

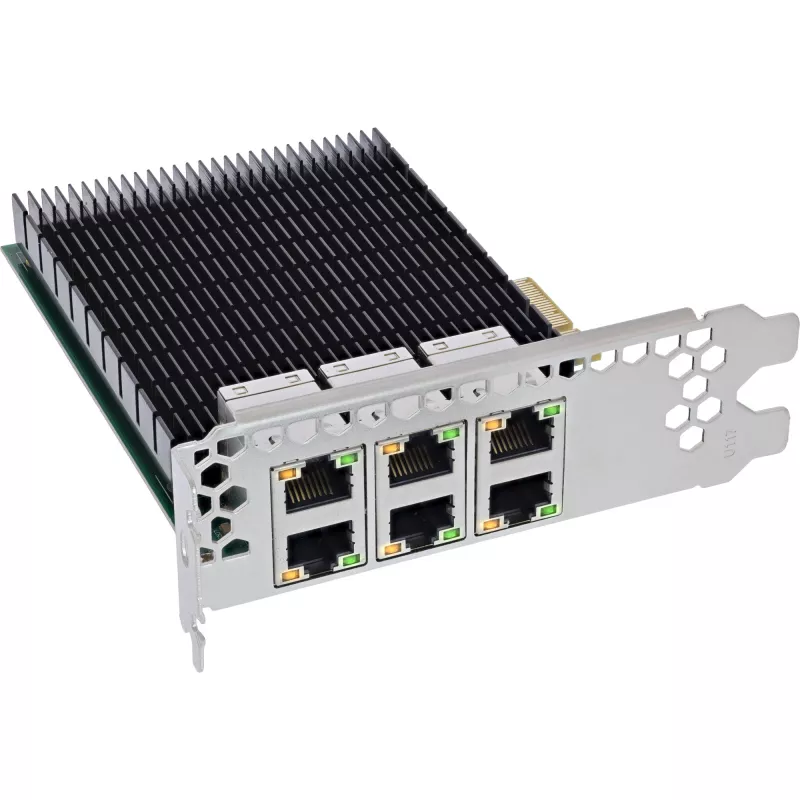

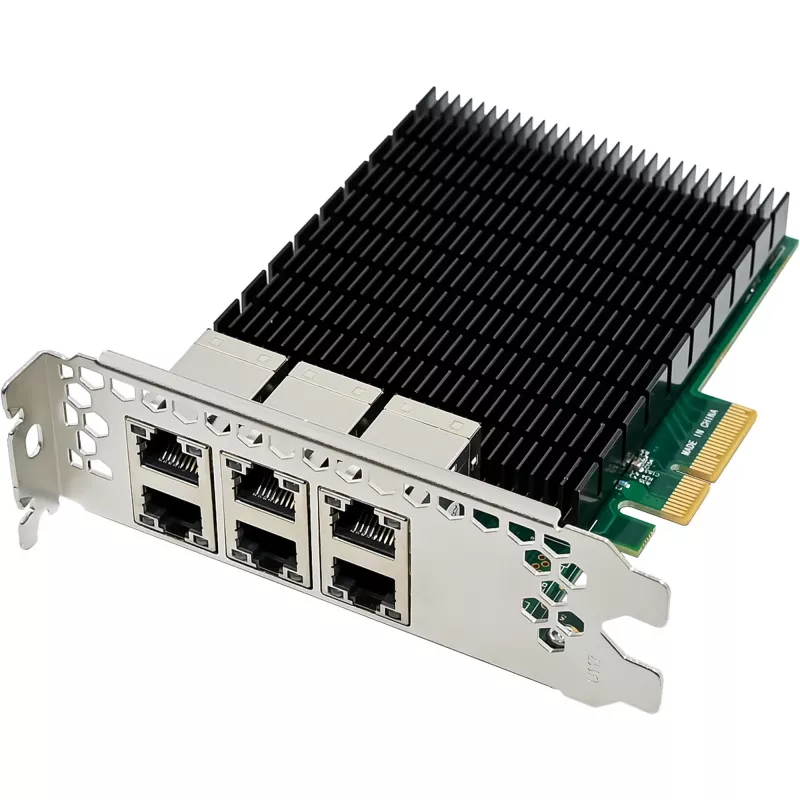

Connection: 6 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)
Supported speeds:
10/100 Mb/s in half-duplex mode
10/100/1000 Mb/s in full duplex mode

Maximum cable length:
10BASE-T: Category-3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category 5e or higher (up to 100 m)

Chipset: Intel I350AM4
Supported protocols: IPv4, IPv6

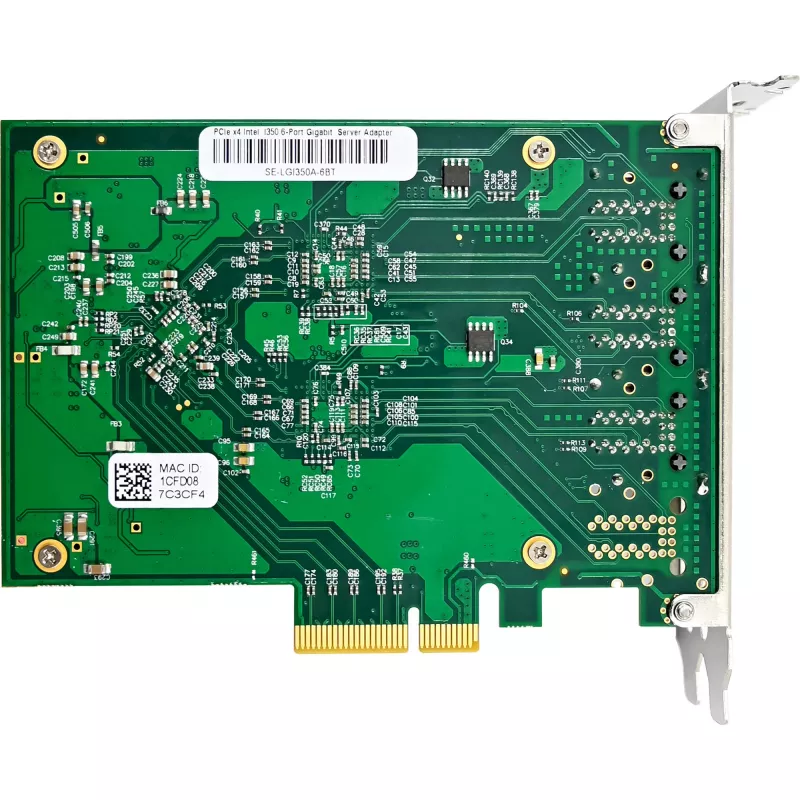

Dimensions: 132 mm x 98 mm (PCIe board)

Network & protocol support:

Supported IEEE standards:

IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control), IEEE 802.1Q (VLAN)
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 1588, 802.1AS (time synchronization)

Functions:

Auto-negotiation (10/100/1000 Mb/s)
Supports Wake-on-LAN (WOL)
Support for Jumbo Frames (up to 9K)
Virtual Machine Device Queues (VMDq, up to 8 VMs)

Operating system support:

Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30

Environmental conditions:

Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %

Scope of delivery:

1x InLine® 6-way Gigabit network card, 6x RJ45 1 Gb/s
1x driver CD
1x operating instructions (German/English)

InLine 51127C. Host interface: PCI Express. Country of origin: Taiwan. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Server operating systems supported: Windows Server 2008 R2, Windows Server 2016, Windows Server 2019. Width: 132 mm, Depth: 98 mm. Package weight: 244 g

How to use

Install the InLine 51127C into an available PCIe x4 (or larger) slot on a powered-off system, secure the card to the chassis, and connect network cables to the six RJ45 ports. Boot the system and install drivers from the provided CD or download the latest drivers from the manufacturer if required. Configure network settings, VLANs and jumbo frames in the operating system or management software according to your network design.

Recommendations

For optimal performance, use Category 5e or higher cables for Gigabit links and ensure the host BIOS and operating system support PCIe v2.1 or later. Enable jumbo frames and flow control only if supported across the network path. Refer to the driver documentation for best-practice settings when deploying virtual machines or time-sensitive AV traffic.
