Interne M.2-adapter DeLOCK 89536

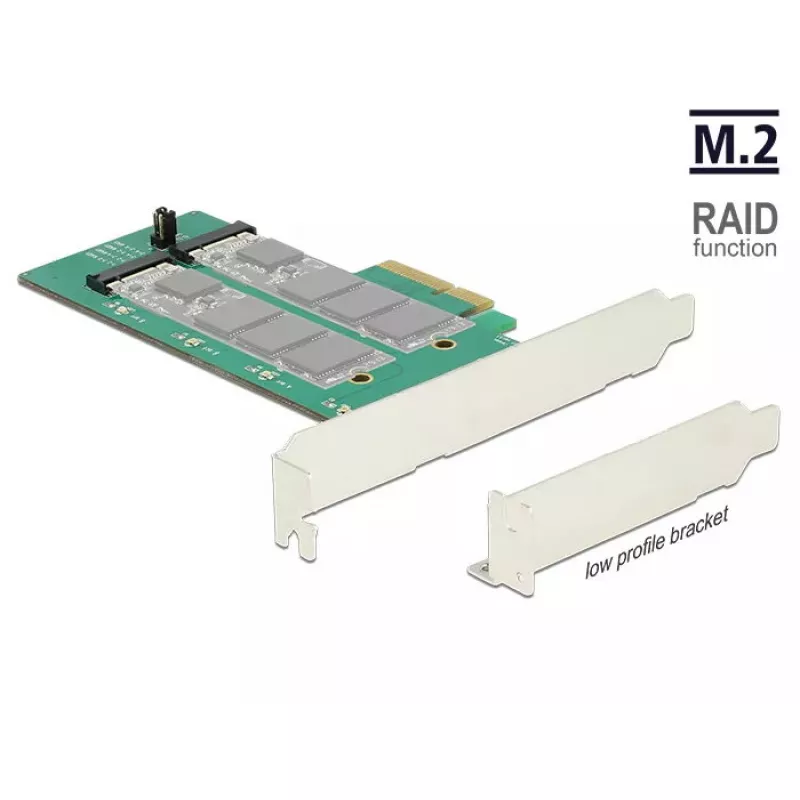

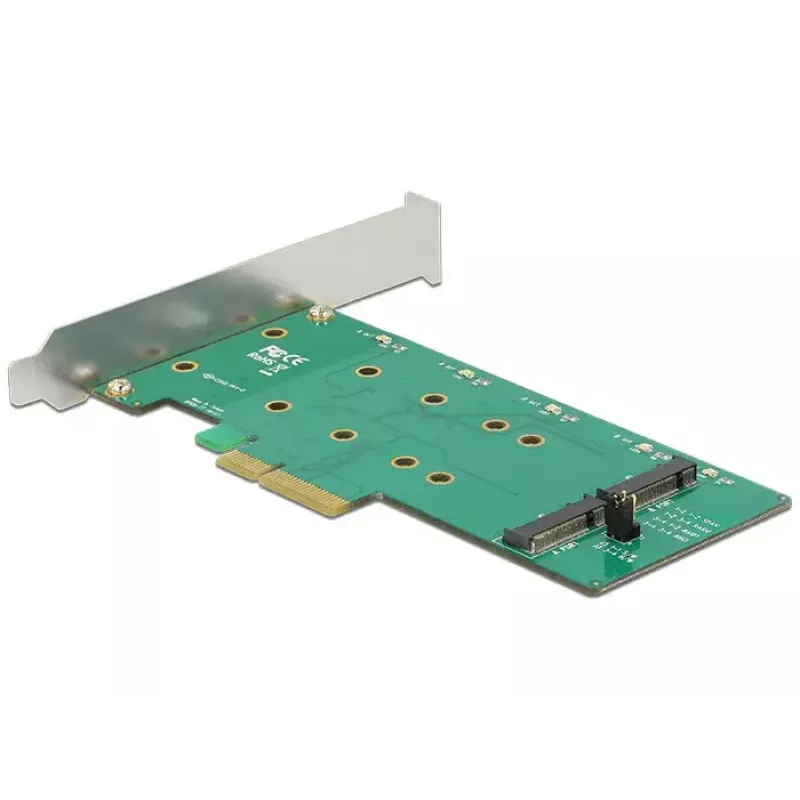

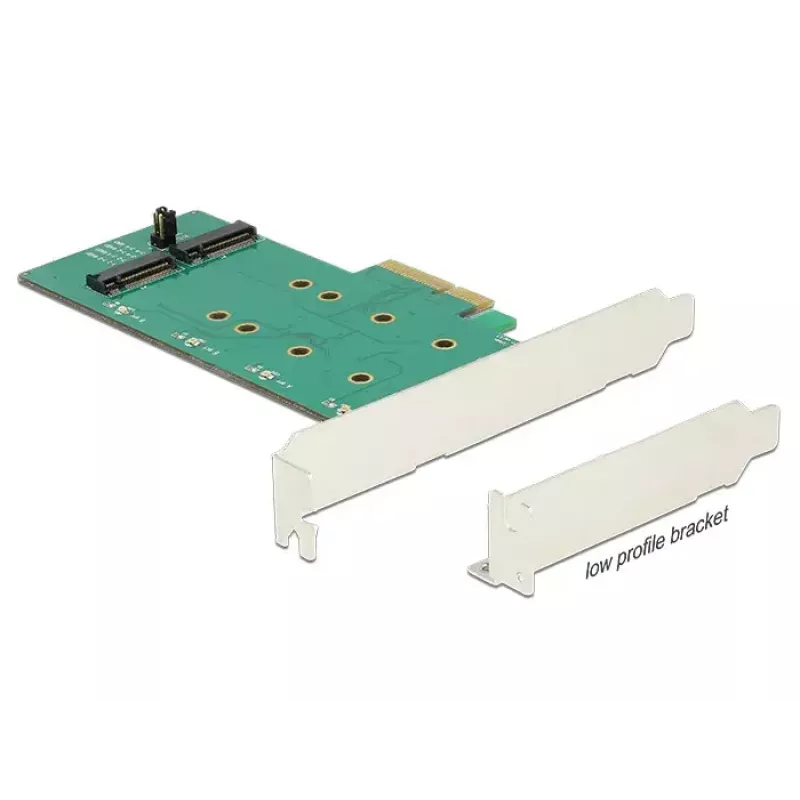

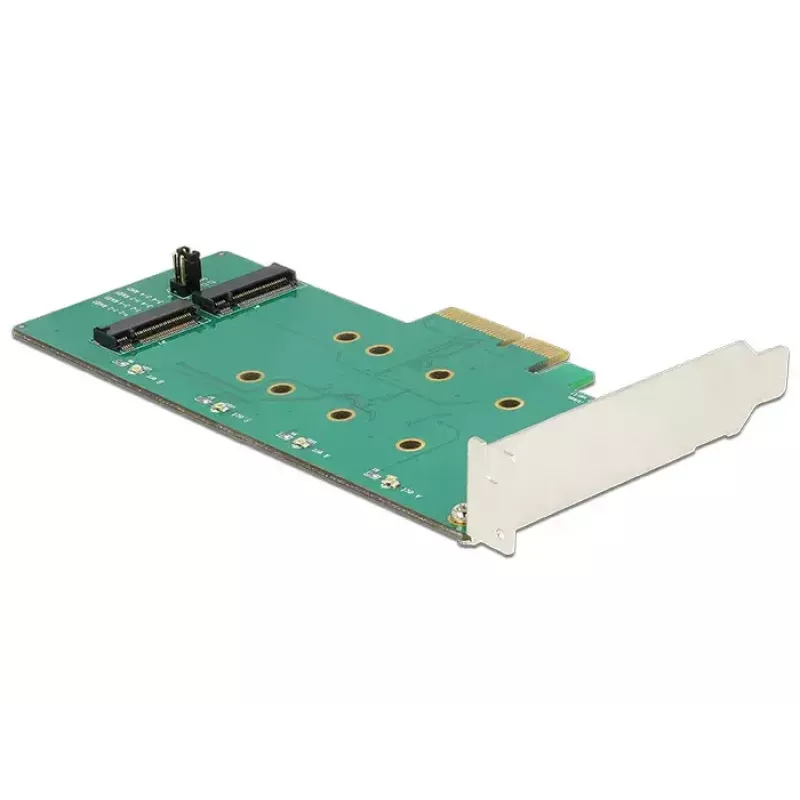

The Internal M.2 Adapter DeLOCK 89536 is a PCI Express expansion card that provides two M.2 slots for adding internal M.2 SATA SSDs. It accepts M.2 modules in sizes 22110, 2280, 2260, 2242 and 2230 and supports SATA data transfer rates up to 6 Gbit/s. The card supports RAID levels 0 and 1 and is compatible with Windows 10 Education and Enterprise editions.

Advantages

This adapter expands a PC’s internal storage options by providing two independent M.2 SATA slots on a single PCIe card. It supports multiple M.2 form factors for flexible drive selection and offers hardware RAID 0 and RAID 1 configurations to prioritize performance or data redundancy. The card uses the PCI Express interface for easy installation in standard desktop systems and supports SATA transfer speeds up to 6 Gbit/s.

Suitable for

• Adding one or two M.2 SATA SSDs to a desktop PC
• Building a RAID 0 array for increased sequential performance
• Building a RAID 1 array for data mirroring and redundancy
• Systems requiring support for M.2 sizes 22110, 2280, 2260, 2242 and 2230

Key specifications

• Brand: DELOCK
• Model: 89536
• Interface: PCI Express
• M.2 module compatibility: 22110, 2280, 2260, 2242, 2230
• Supported drives: M.2 SATA SSD (up to 6 Gbit/s)
• RAID support: 0 and 1
• Compatible OS: Windows 10 Education, Windows 10 Enterprise
• MPN: 89536
• EAN: 4043619895366

How to use

Install the adapter into a free PCI Express slot on the motherboard, secure it to the chassis, and mount up to two M.2 SATA modules of the supported lengths into the M.2 slots following the card’s standoff positions. Configure BIOS/UEFI settings if required to enable the card, then install the operating system drivers or allow Windows to detect the device automatically. If using RAID, set the desired RAID level (0 or 1) according to the motherboard or adapter management utility before formatting and using the drives.

Recommendations

Use identical-capacity and identical-specification M.2 SATA modules when configuring RAID 0 or RAID 1 to ensure optimal performance and predictable capacity. Ensure the PC chassis has sufficient airflow to cool installed SSDs and verify Windows 10 Education or Enterprise compatibility before deployment.
