Interne USB 3.2 Gen 2-adapter DeLOCK 90060

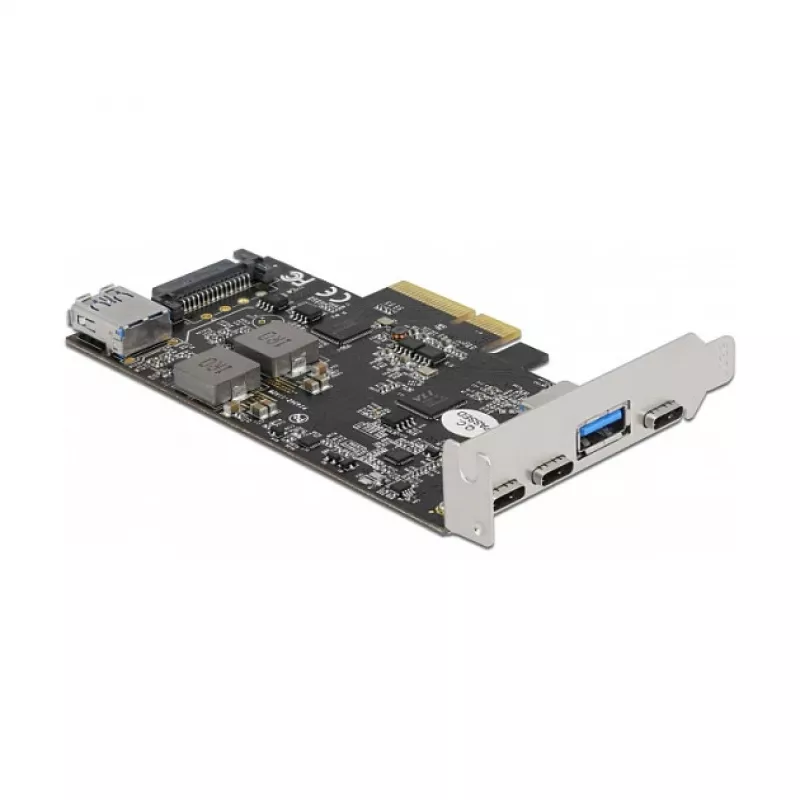

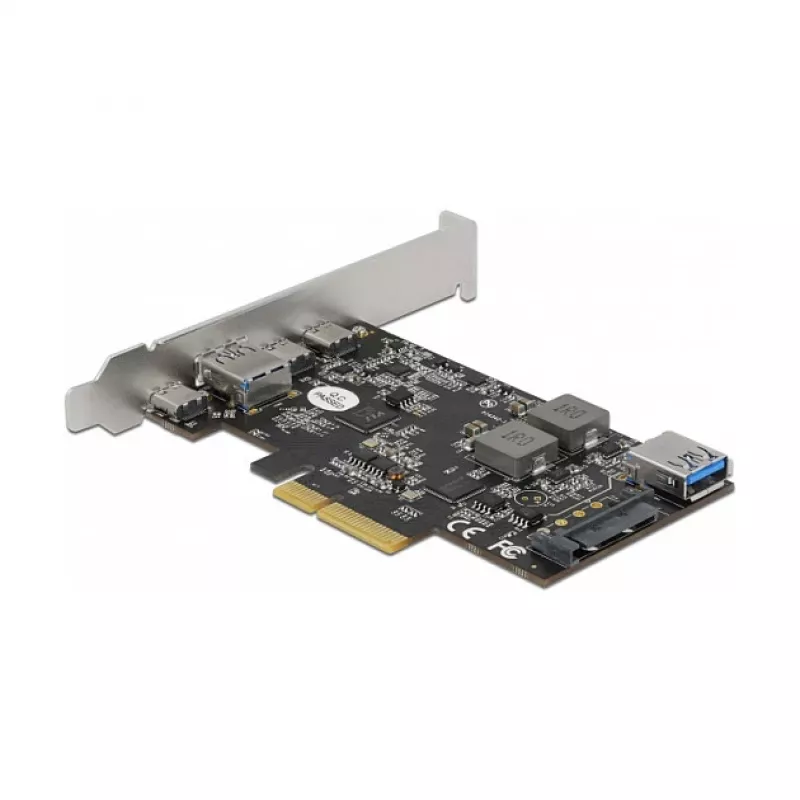

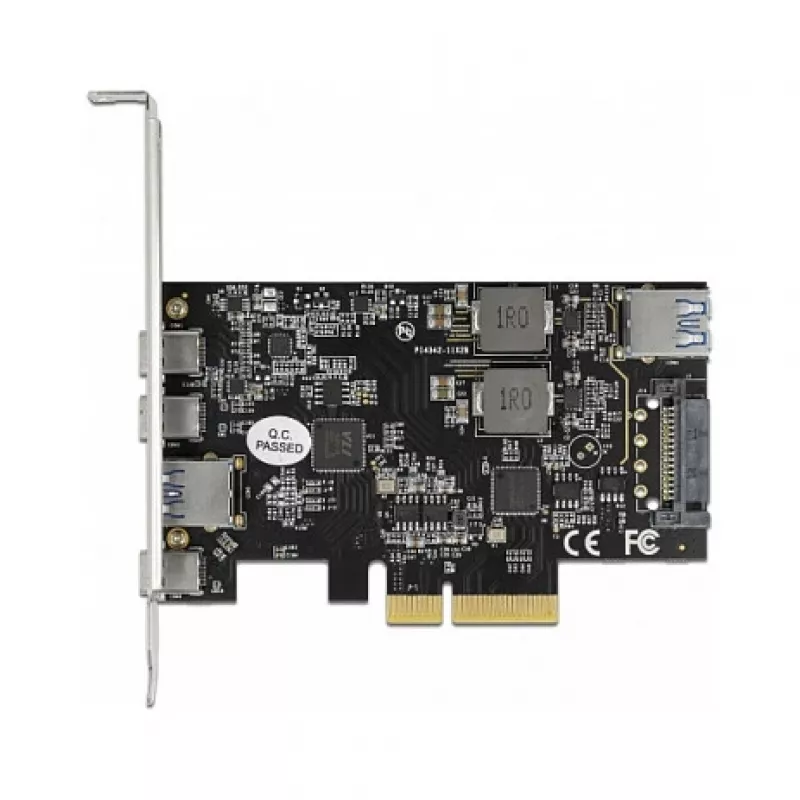

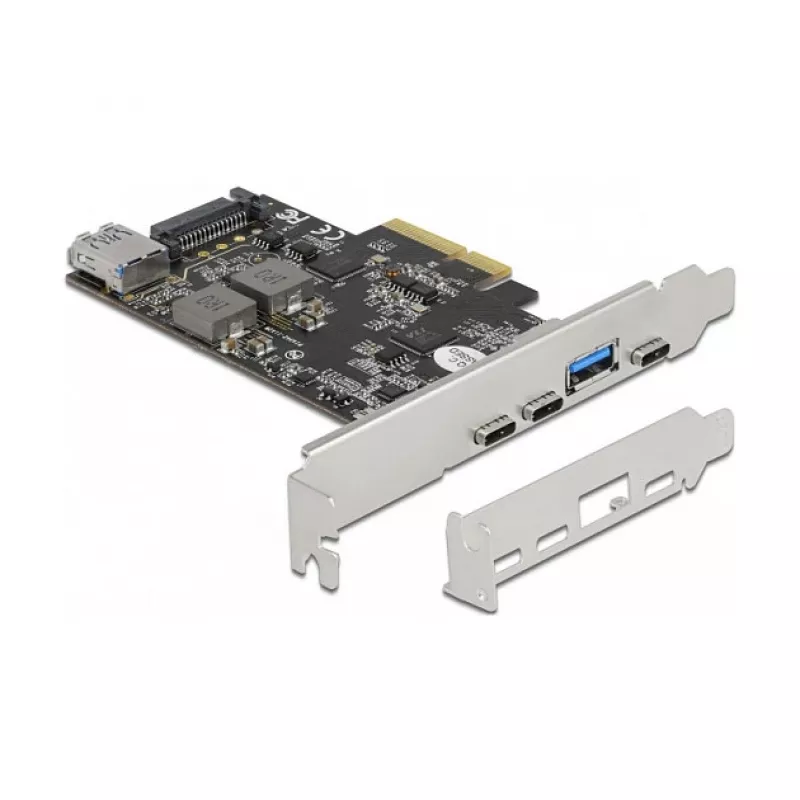

The Internal USB 3.2 Gen 2 Adapter DeLOCK 90060 is a PCIe expansion card that adds five USB 3.2 ports to a desktop PC. It provides three USB Type-C™ ports and two USB Type-A ports, each supporting data transfer rates up to 10 Gbit/s, and is available in a low-profile form factor suitable for compact systems.

Advantages

This PCI Express card increases the number of high-speed USB connections inside the PC without requiring external hubs. Each port supports USB 3.2 Gen 2 (up to 10 Gbit/s), enabling fast transfers for docking stations, card readers, external enclosures and other peripherals. The mix of three USB-C and two USB-A ports provides compatibility with both modern and legacy devices.

Suitable for

Key specifications

How to use

Install the card into an available PCI Express slot on the motherboard, secure it to the chassis and, if required, fit the low-profile bracket. After installation, boot the system and install any drivers supplied by the operating system or manufacturer. Connect USB devices to the Type-C or Type-A ports as needed; each port operates at USB 3.2 Gen 2 speeds when supported by the connected device and cable.

Recommendations

Use high-quality USB 3.2 Gen 2 compatible cables and ensure connected devices support the 10 Gbit/s rate to achieve maximum transfer speeds. Verify available PCIe slot and clearance for the low-profile card before installation.
