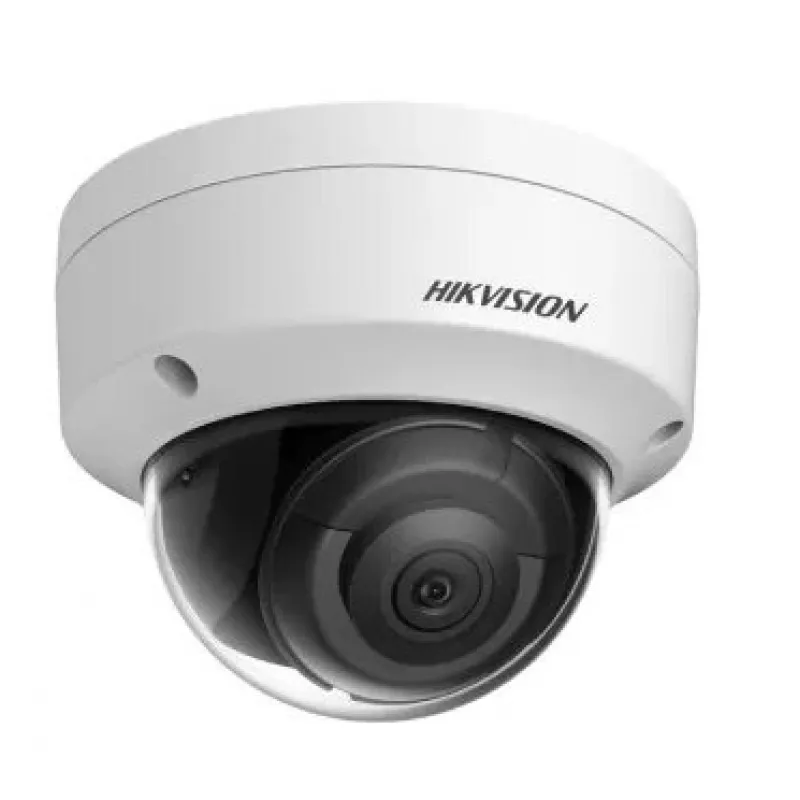

IP-beveiligingscamera Hikvision DS-2CD2183G2-I 3840 x 2160

Certification: FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 6, 2016) KC (KN 32: 2015, KN 35: 2015)UL (UL 60950-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006) | Supported graphics resolutions: 640 x 480 (VGA) | Supported graphics resolutions: 640 x 360 | Video streaming: Yes | Storage temperature (T-T): -30 - 60 °C | Supported graphics resolutions: 1920 x 1080 (HD 1080) | Harmonized System (HS) code: 85258900 | Supported graphics resolutions: 1280 x 720 (HD 720) | Mounting type: Ceiling/wall | Storage relative humidity (H-H): 0 - 95% | Housing material: Aluminium | Networking standards: IEEE 802.3af | Supported graphics resolutions: 3200 x 1800 | Pan range: 0 - 355° | Number of languages: 33 | Power source type: DC, PoE | Networking standards: IEEE 802.1x | Supported graphics resolutions: 3840 x 2160 | Ethernet interface type: Fast Ethernet | Behavior analysis: Intrusion detection, Line crossing detection | Supported graphics resolutions: 2688 x 1520 | Infrared (IR) cut-off filter: Yes | Housing material: Plastic | Type: IP security camera | Identify distance (wide): 9 m | Product colour: White | Power consumption (Power over Ethernet (PoE)): 7.5 W | Operating relative humidity (H-H): 0 - 95% | DC output current: 0.5 A | Wide Dynamic Range (WDR): Yes | Quality of Service (QoS) support: Yes | Package depth: 134 mm | Highlight Compensation (HLC): Yes | HTTPS encryption: Yes | Video compression formats: M-JPEG | IK code: IK10 | Maximum memory card size: 256 GB | Tilt angle range: 0 - 75° | IP address filtering: Yes | Maximum aperture number: 1.6 | Languages support: Multi | Built-in HDD: No | Camera shutter speed: 1/3 - 1/100000 s | Protection features: Water resistant | Form factor: Dome | Package height: 108 mm | Password protection: Yes | Video compression formats: H.265 | LED type: IR | Video compression formats: H.264+ | Gain control type: Auto | Infra-red wavelength: 850 nm | Optical sensor size: 25.4 / 2.8 mm (1 / 2.8") | Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR) | Total megapixels: 8 MP | Operating temperature (T-T): -30 - 60 °C | Weight: 520 g | Package weight: 720 g | Compatible memory cards: MicroSDHC | Image quality adjustment: Sharpness | Mirror: Yes | Compatible memory cards: MicroSD (TransFlash) | Compatible memory cards: MicroSDXC | Intelligent Video Surveillance (IVS) system features: Face detection | Image quality adjustment: Contrast | Anti-flicker: Yes | Image quality adjustment: Brightness | Heartbeat: Yes | Ethernet LAN (RJ-45) ports: 1 | Back Light Compensation (BLC): Yes | International Protection (IP) code: IP67 | Bit rate: 32 Kbps - 16 Mbps | Sensor type: CMOS | Lens viewing angle, vertical: 57° | Wi-Fi: No | Web browser: Yes | Reset button: Yes | Package width: 134 mm | Progressive scan: Yes | Angle of rotation: 355° | Ethernet LAN: Yes | Camera pan control: Yes | Maximum resolution: 3840 x 2160 pixels | Number of sensors: 1 | Signal-to-Noise Ratio (SNR): 52 dB | DC output voltage: 12 | Number of lenses: 1 | Connectivity technology: Wired | Active tampering alarm: Yes | Video motion detection: Yes | Privacy masking: Yes | Number of users: 32 user(s) | Day/night mode: Yes | Video compression formats: H.265+ | Placement supported: Indoor & outdoor | Night vision: Yes | Camera tilt control: Yes | Frame rate: 30 fps | Fixed focal length: 2.8 mm | Number of cameras: 1 | Region of Interest (ROI) encoding: Yes | Image quality adjustment: Saturation | Recognize distance (wide): 17 m | Protection features: Dust resistant | Bluetooth: No | Video compression formats: H.264 | Power consumption (max): 6 W | Lens viewing angle, diagonal: 128° | Lens viewing angle, horizontal: 107° | Night vision distance: 30 m

How to use

Mount the camera on a suitable ceiling or wall surface using appropriate anchors and align the lens to cover the desired area. Connect the device to your network via Ethernet and configure it using Hikvision configuration tools or a compatible NVR. Set recording parameters (resolution, frame rate up to 30 fps) and enable AcuSense human and vehicle classification in the camera or recorder settings to filter alarms. Adjust motion detection zones and sensitivity to match the scene and reduce unwanted alerts.

Recommendations

Place the camera at a height and angle that captures faces and vehicle plates when identification is required; ensure good lighting or complementary IR/lighting for night-time monitoring. Regularly update device firmware and review detection zones after installation to maintain optimal performance.
