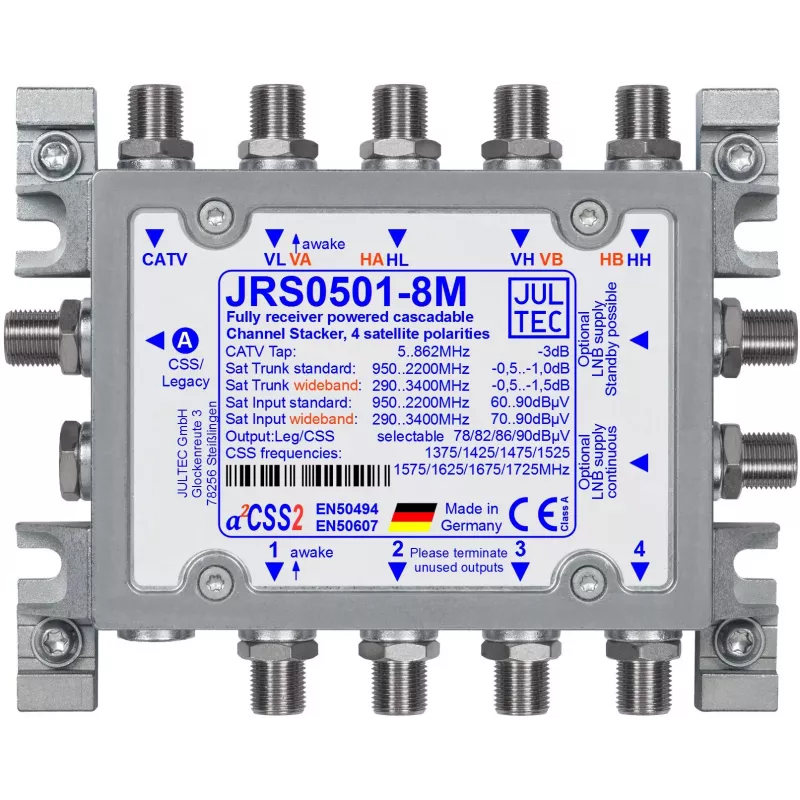

Jultec JRS0501-8M 8-voudige multiswitch 4 SAT-ingangen 1 terrestrische ingang

The Jultec JRS0501-8M is a high-performance 8-way multiswitch designed for distributing satellite and terrestrial TV signals in multi-dwelling units and small to medium-sized installations. With 4 SAT inputs and 1 terrestrial input, it supports up to 8 subscriber outputs, making it ideal for feeding multiple rooms with both satellite and terrestrial channels. The unit features a level-preserving SAT path (0 dB gain) and an active terrestrial path with 10 dB gain, ensuring optimal signal quality. It supports DiSEqC 2.0, DiSEqC 1.0, 22 kHz, and Tone Burst protocols for LNB control. The multiswitch is wall-mountable and operates with an external 19V DC power supply (e.g., JNT19-2000).

Advantages

Reliable signal distribution for up to 8 subscribers; supports both satellite and terrestrial signals; easy installation with F-connectors; low power consumption (<3 W); wide operating temperature range (-20 to +50 °C).

Suitable for

• Multi-dwelling units (apartments, condos)
• Small hotels and guesthouses
• Office buildings requiring TV distribution
• Single-family homes with multiple TV points

Key specifications

• Number of SAT Inputs: 4
• Number of Terrestrial Inputs: 1
• Number of Subscriber Outputs: 8
• SAT Frequency Range: 950 - 2200 MHz
• Terrestrial Frequency Range (Active): 47 - 862 MHz
• Terrestrial Frequency Range (Passive): 5 - 862 MHz
• Return Path Frequency Range: 5 - 65 MHz (Passive)
• SAT Path Gain: 0 dB
• Terrestrial Path Gain (Active): 10 dB
• LNB Control Protocol: DiSEqC 2.0, DiSEqC 1.0, 22 kHz, Tone Burst
• Power Supply Type: External (19V DC)
• Power Consumption (Multiswitch only): < 3 W
• Max LNB Current: 500 mA
• Input Isolation (SAT-SAT): > 30 dB
• Output Isolation (SAT-SAT): > 30 dB
• Connector Type: F-connector
• Mounting Type: Wall mountable
• Operating Temperature: -20 to +50 °C

Recommendations

For optimal performance, use with a compatible 19V DC power supply (e.g., Jultec JNT19-2000). Ensure proper grounding and surge protection. Suitable for indoor use only.
