Kaartlezermodule Hikvision DS-KD-M

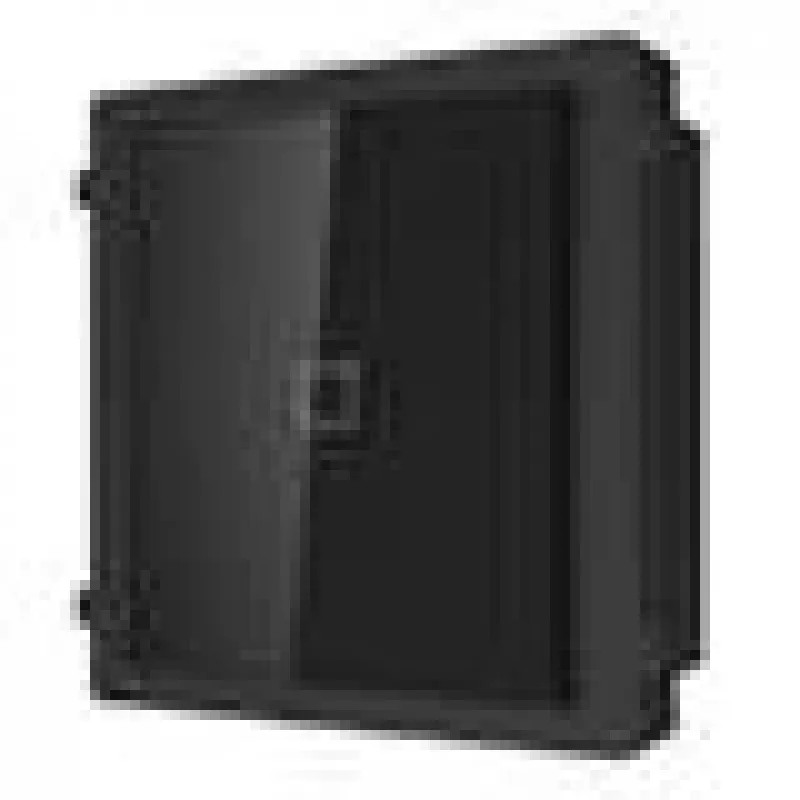

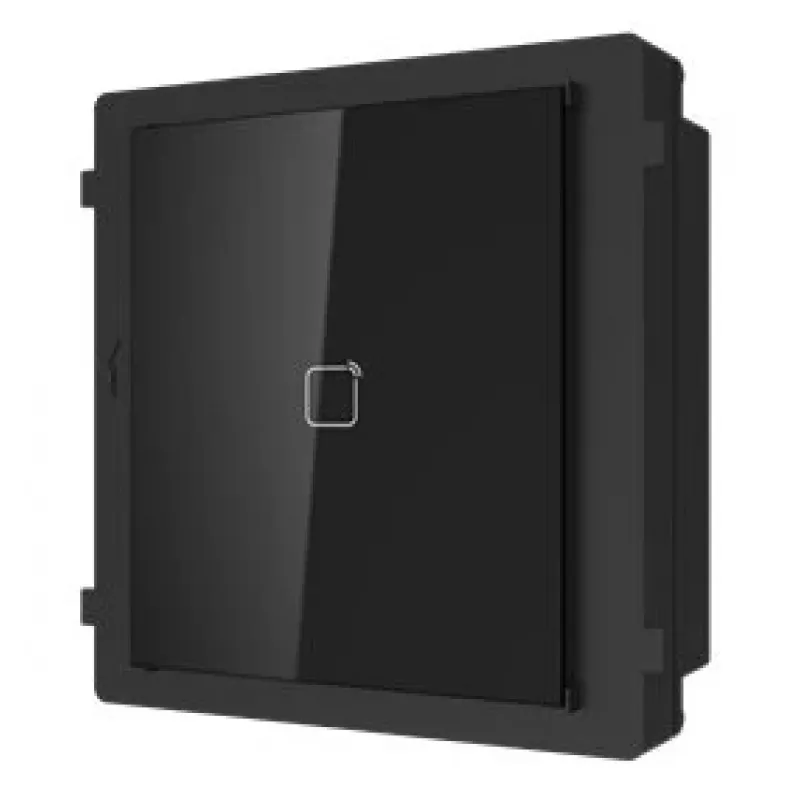

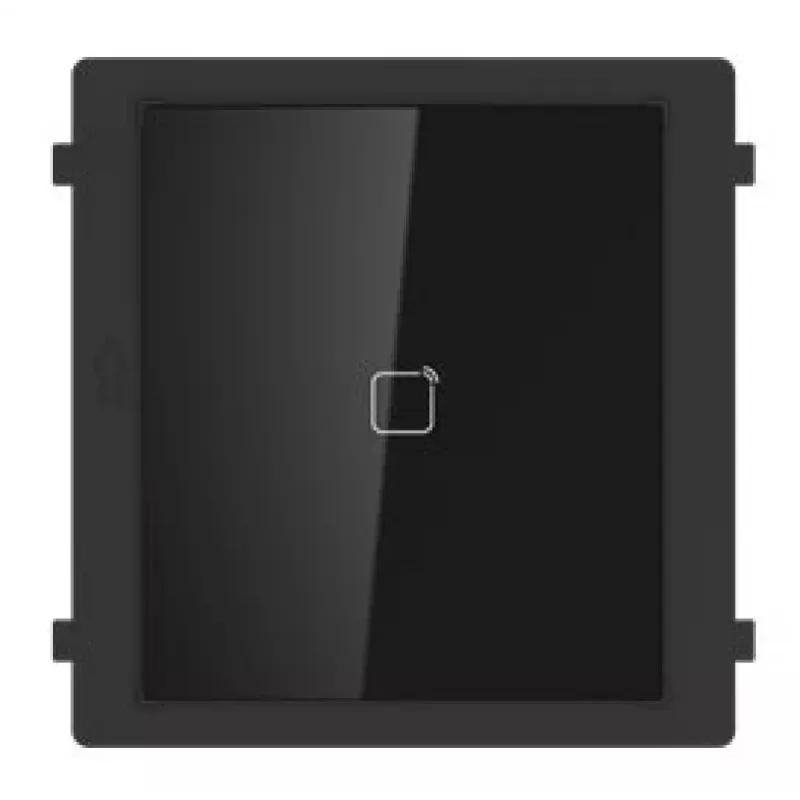

The Hikvision DS-KD-M Card Reader Module is a compact access control component designed for integration with Hikvision entry systems. Measuring 98.5 mm in width, 33.7 mm in depth and 100 mm in height, the module provides card reading capability in a slim black housing. It operates from a 12 V DC input and offers a lightweight option for installations where space is limited and compatibility with Hikvision control devices is required.

Advantages

The module’s compact dimensions and 421 g weight simplify mounting on door panels and frames while minimizing visual impact. Designed for compatibility with Hikvision systems, it accepts standard access control wiring and a 12 V DC supply, reducing the need for additional power conversion. The black enclosure provides a discreet aesthetic and durable finish suitable for indoor or sheltered outdoor locations.

Suitable for

• Residential building entry panels and intercom systems
• Small office or retail access control points
• Retrofit installations where space is constrained
• Integration with Hikvision door station and control systems

Key specifications

• Dimensions: 98.5 mm (W) × 33.7 mm (D) × 100 mm (H)
• Power input: 12 V DC
• Weight: 421 g
• Color: Black
• Form factor: Compact card reader module suitable for panel mounting

How to use

Install the DS-KD-M module into the designated slot or mounting location on the door station or panel following the system manufacturer’s mechanical and electrical guidelines. Connect the module to the access control wiring harness and supply it with a regulated 12 V DC source. After physical installation and power connection, complete any required configuration within the connected Hikvision control system to enable card recognition and assign access permissions. Test reading and access events to confirm correct operation before commissioning.

Recommendations

For reliable performance, mount the module in a location protected from direct exposure to heavy rain and extreme temperatures, and use a stable 12 V DC power source. Follow Hikvision’s installation and configuration procedures to ensure correct integration with door stations and access control systems.
