Kabel ACT CAT5E U/UTP PVC massief blauw 305 m

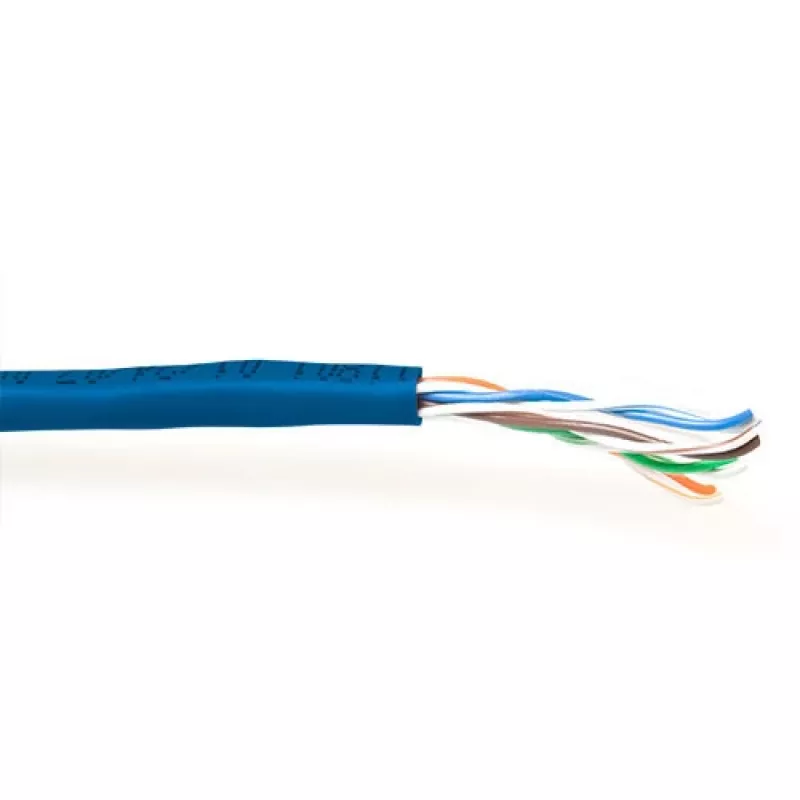

ACT CAT5E U/UTP PVC solid blue 305 m cable is a Category 5E unshielded twisted pair installation cable designed for structured cabling. The cable supports Ethernet, xDSL, ISDN, ATM up to 155/633 Mbps, 100 VG AnyLAN and serial applications. It is certified to deliver Category 5E Link and Channel performance with defined physical and electrical characteristics up to 100 MHz and is supplied on a 305 metre box for installation convenience.

Advantages

The cable uses solid copper conductors and PVC insulation for mechanical durability and consistent signal transmission. As a Category 5E U/UTP product it provides reduced crosstalk and is suitable for 10/100/1000 Mbps Ethernet. The blue outer sheath enables easy identification in cabling systems.

Suitable for

• Ethernet networks (10/100/1000 Mbps)
• xDSL and ISDN connections
• ATM up to 155/633 Mbps
• 100 VG AnyLAN and serial links
• Structured cabling installations in offices and data closets

Key specifications

• Category: Cat5E (U/UTP)
• Length: 305 m
• Conductor: Solid copper
• Insulation / Jacket: PVC
• Pairs: 4 pairs (Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown)
• Frequency: up to 100 MHz
• Colour: Blue (outer sheath)

How to use

Run the cable from the distribution point to the desired termination locations following local installation standards. Terminate each pair into appropriate RJ45 keystone jacks or patch panels according to T568A or T568B wiring scheme. Use proper cable management, maintain bend radius and avoid running parallel to high-voltage power lines to preserve signal integrity. Test the installed links with a certified cable tester to verify Cat5E Link and Channel performance.

Recommendations

For best results, store the 305 m box on a flat surface and pull cable from the box to reduce twists. Follow local building codes and use connectors and patch panels rated for Cat5E to maintain performance up to 100 MHz.
