Kabeladapter PIN-5 Satel RJ/PIN5

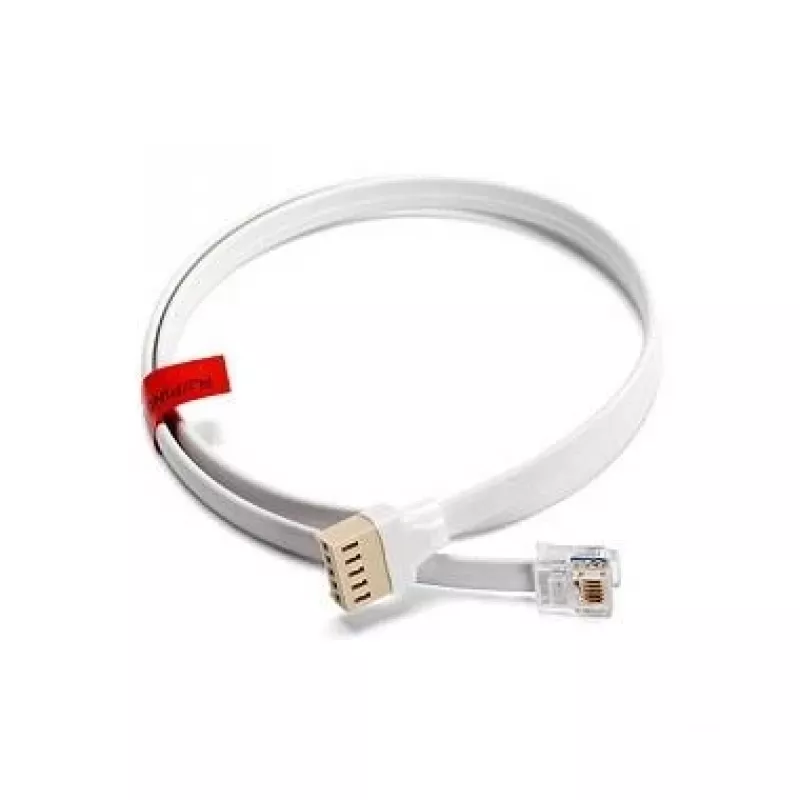

RJ/PIN5 is a gender changer cable by SATEL that connects RS ports of INTEGRA control panels fitted with an RJ socket to communication modules using a PIN-5 connector, such as GSM, ISDN-MOD, ETHM-1, ETHM-1 Plus and the MDM56 BO modem. The compact white cable provides a direct physical interface between devices with RJ and PIN-5 terminations to restore or enable communication channels without changing the original panel or module connectors.

Advantages

The SATEL Cable gender changer PIN-5 RJ/PIN5 offers a simple plug-and-play solution for matching connector types, reducing the need for adapter blocks or rewiring. Its small form factor and standard connectors allow quick installation in equipment cabinets and control panels while maintaining the original wiring layout.

Suitable for

• Connecting INTEGRA control panels with RJ socket to GSM communication modules
• Linking INTEGRA panels to ISDN-MOD modules
• Connecting to ETHM-1 and ETHM-1 Plus network modules
• Interface connection to MDM56 BO modem

Key specifications

• Connector 1: PIN-5
• Connector 2: RJ
• Product colour: White
• Brand: SATEL
• Manufacturer part number (MPN): RJ/PIN5

How to use

Plug the PIN-5 end of the cable into the communication module’s PIN-5 socket and connect the RJ end to the INTEGRA control panel’s RJ socket. Ensure both devices are powered off before making the connection. After connecting, power on the devices and verify communication through the control panel’s diagnostics or module status indicators.

Recommendations

Use the cable indoors within equipment enclosures and avoid exposing it to moisture, excessive heat or mechanical strain. If communication issues occur, check connector seating and inspect for bent pins or damaged RJ contacts before replacing the cable.
