Kabelconnector D-Sub 37-polig DeLOCK 66711

The DeLOCK 66711 wire connector is a D-Sub 37 Pin male connector designed for wiring and interface applications. Finished in black and silver, the connector is compact with a width of 17.5 mm, depth of 69.3 mm and height of 12.5 mm. The product is supplied as a pack of two connectors in a polybag and is produced in China. This connector is intended for use where a D-Sub 37 male termination is required for signal or data wiring.

Advantages

The DeLOCK D-Sub 37 Pin connector provides a standardized male D-Sub interface in a compact form factor suitable for tight installations. Its metal and plastic construction in black and silver offers a balance of durability and visual identification. Supplied in pairs, the pack facilitates parallel installations or spare-part provisioning. The documented physical dimensions allow straightforward planning for panel cutouts, cable assemblies and enclosure fits.

Suitable for

• Cable assemblies and custom wiring harnesses requiring a 37-pin male D-Sub interface
• Panel-mount or device termination where compact D-Sub connectors are needed
• Repair, replacement or prototyping of equipment with 37-pin D-Sub connections
• Low- to medium-density signal and data connections in industrial or laboratory equipment

Key specifications

• Connector type: D-Sub, 37 pins, male
• Colour: black and silver

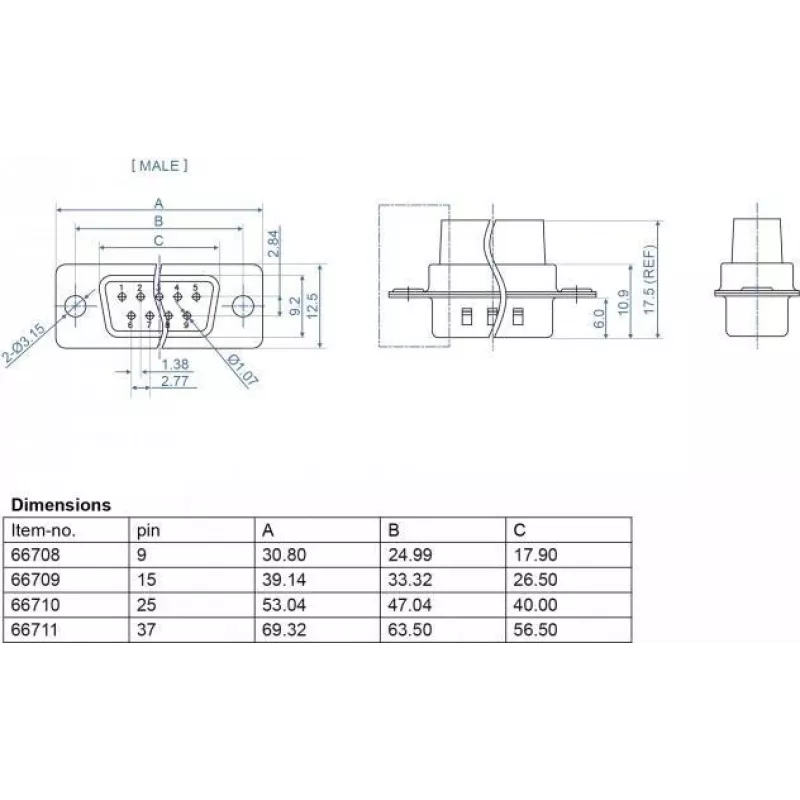

• Dimensions (W × D × H): 17.5 mm × 69.3 mm × 12.5 mm
• Quantity per pack: 2 connectors
• Packaging: polybag
• Country of manufacture: China

How to use

Prepare the cable or wiring harness following the pinout required for your application, then terminate to the D-Sub 37 male contacts according to standard soldering or crimping procedures compatible with the connector design. After wiring, secure the connector in its intended panel or mating assembly and verify mechanical fit using the listed dimensions. Perform electrical continuity and insulation tests to confirm correct pin connections before applying operational signals or power.

Recommendations

Handle and install the connectors in a clean workspace to avoid contaminating contacts. Use appropriate tools for termination and fastening to ensure reliable mechanical and electrical connections. Store spare connectors in dry conditions and protect from mechanical stress until installation.
