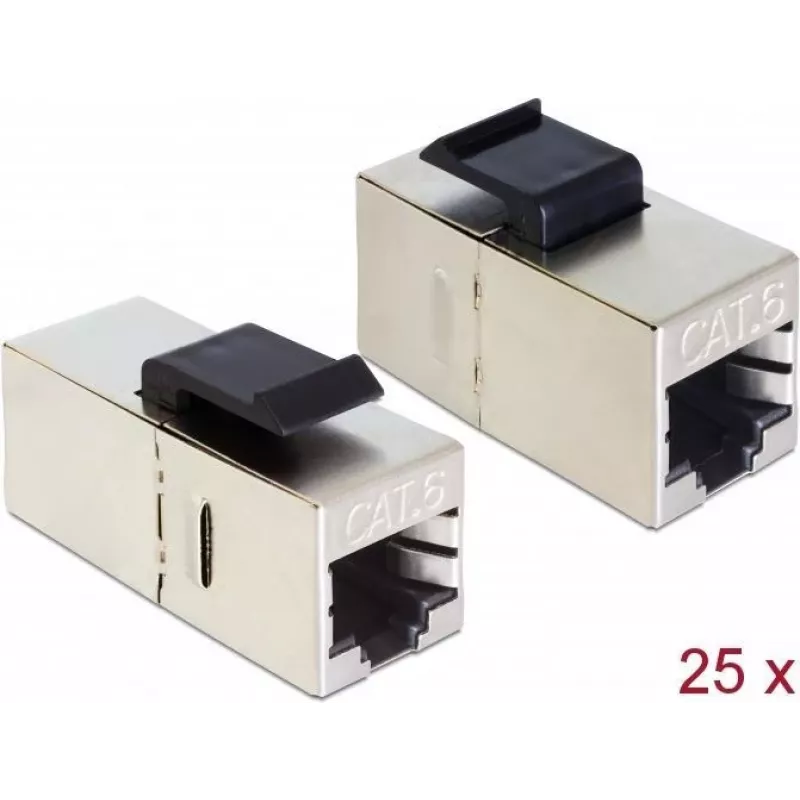

Keystone-module RJ45-bus DeLOCK 86626

The DeLOCK Keystone Module RJ45 jack is a compact Cat.6 module for extending twisted pair cables. Its standardised keystone dimensions and flat design in black and grey allow snap-in mounting into keystone patch panels, faceplates or surface-mount boxes. The module supports reliable RJ-45 connectivity and is supplied in packs of 25 pieces.

Advantages

The module is optimised for Cat.6 installations, offers a low-profile flat design for space-constrained installations and fits standard keystone openings for quick snap-in mounting. The RJ-45 interface provides a familiar connection method compatible with common network cables and connectors.

Suitable for

• Keystone patch panels
• Face plates and wall outlets
• Surface-mount boxes and small enclosures
• Cat.6 twisted-pair cable extensions and terminations

Key specifications

• Brand: DELOCK
• Model / MPN: 86626
• EAN: 4043619866267
• Connector 1: RJ-45
• Connector 2: RJ-45
• Product colour: Black, Grey
• Application: Cat.6
• Pack quantity: 25 pieces
• Dimensions (W x D x H): 16.5 mm x 33 mm x 21.8 mm

How to use

Terminate the Cat.6 twisted-pair cable to the RJ-45 contact points according to the required wiring standard (e.g., T568A or T568B). Align the keystone module with the keystone opening of the patch panel, face plate or surface-mount box and press until it snaps into place. Verify the physical connection and test the link with appropriate network testing tools.

Recommendations

The module is intended for indoor networking installations and should be used with Cat.6-rated cables and compliant tools for termination. Ensure correct wiring order and use a cable tester after installation to confirm signal integrity.
