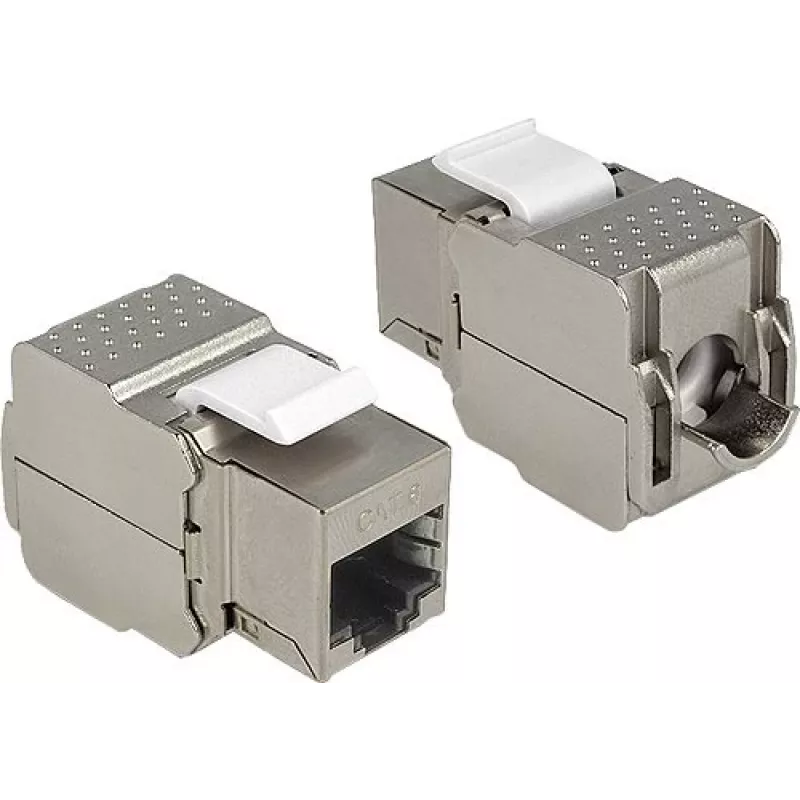

Keystone-module DeLOCK 86154

The DeLOCK 86154 keystone module provides a compact interface to connect twisted pair cable to an RJ45 female port. Designed with standardised dimensions and a silver finish, the module fits snap-in into keystone-compatible patch panels, faceplates or surface-mount boxes for straightforward installation in network accessory setups.

Advantages

The module combines an RJ45 female socket with an LSA connection on the rear, enabling reliable signal transmission and a tidy cable termination. Its standard keystone form factor ensures compatibility with common mounting frames and faceplates while its small dimensions support space-saving installations.

Suitable for (tasks / use cases)

• Terminating twisted pair cables in patch panels and keystone faceplates
• Home and small-office network wall outlets
• Surface-mount boxes and custom network enclosures

Key specifications

• Brand: DELOCK
• Model / MPN: 86154
• Connectors: RJ45 female (front) and LSA (rear)
• Color: Silver
• Dimensions (W×D×H): 37.8 mm × 16 mm × 21.9 mm
• Form factor: Keystone module

How to use

Prepare the twisted pair cable by stripping the outer sheath and arranging the conductors according to the chosen wiring standard. Terminate the conductors into the LSA contacts at the rear of the module, ensuring secure seating. Snap the keystone module into a compatible patch panel, faceplate or surface-mount box until it clicks into place, then connect an RJ45 plug to the front socket.

Recommendations

Verify the wiring scheme (T568A or T568B) before termination and test the connection with appropriate network testers after installation to ensure correct pairing and signal integrity.
