RJ45/LSA Cat.6A DeLOCK 86179

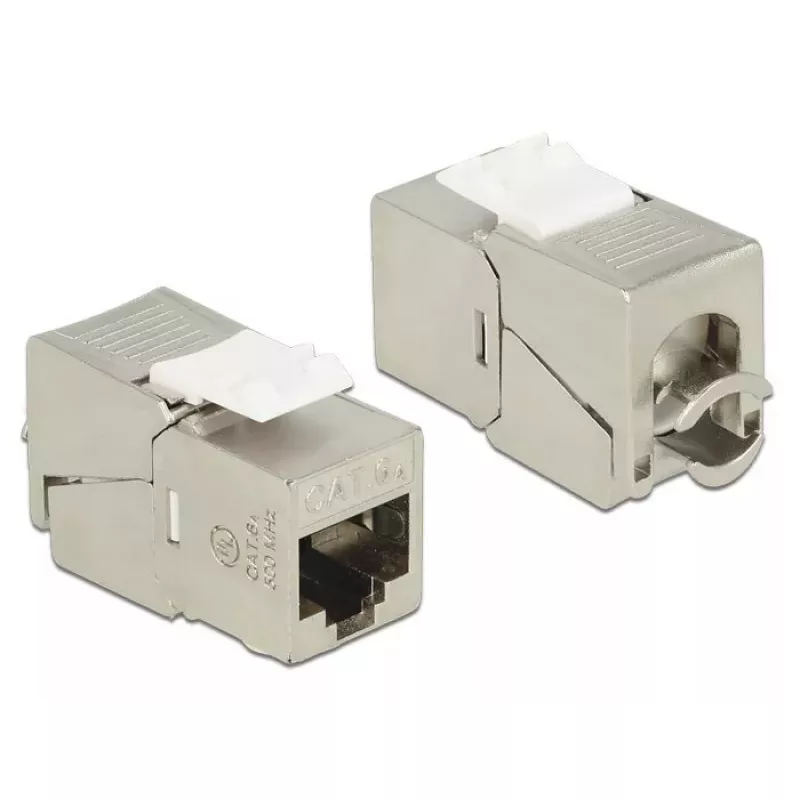

The DeLOCK RJ45/LSA Cat.6A 86179 module connects twisted pair cable to an RJ45 jack and fits standardised mounting openings. Its compact dimensions (14.5 mm width, 35.3 mm depth, 22 mm height) and metallic white housing make it suitable for snap-in installation in keystone patch panels, faceplates or surface-mount boxes while supporting Cat.6A cabling requirements for high-speed network links.

Advantages

The connector offers a standardised form factor for easy snap-in mounting and a durable metallic white housing. It supports Cat.6A LSA termination, enabling reliable high-speed Ethernet connections and broad compatibility with common network infrastructure components.

Suitable for

• Keystone patch panels
• Wall faceplates
• Surface-mount boxes
• Cat.6A network installations

Key specifications

• Connector 1: RJ45
• Connector 2: LSA Cat.6A
• Product colour: Metallic, White
• Dimensions (W×D×H): 14.5 × 35.3 × 22 mm

How to use

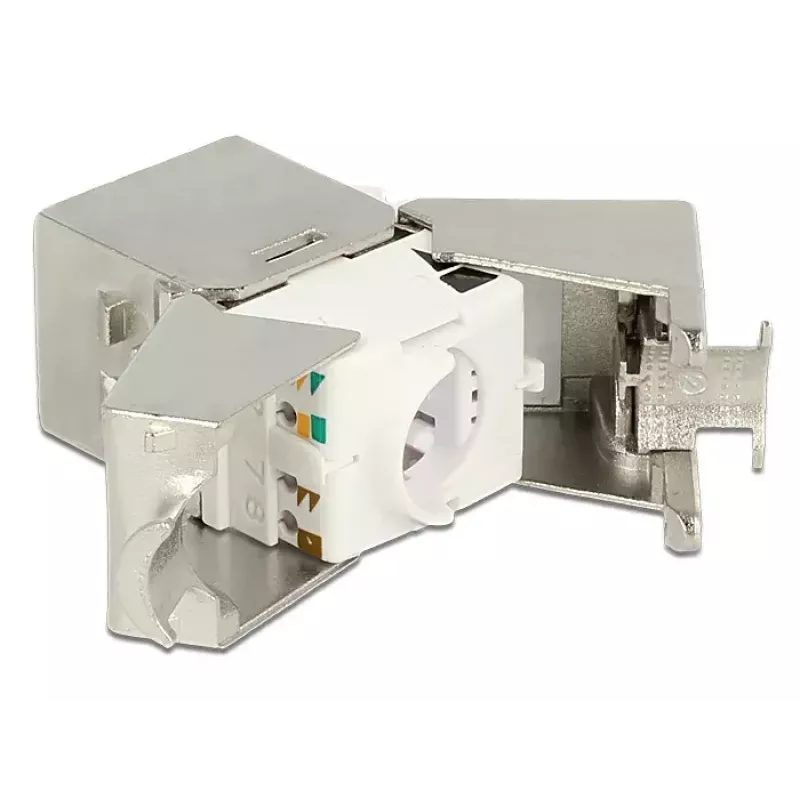

Terminate the twisted pair cable to the LSA Cat.6A contacts following standard LSA wiring procedures and verify pair alignment before cutting. Align the module with a compatible keystone slot or mounting opening and press it into place until it snaps securely. After installation, test the RJ45 connection with appropriate network testers to confirm continuity and performance.

Recommendations

For optimal performance, use certified Cat.6A cabling and ensure proper LSA termination tools are used. Verify compatibility with the target patch panel or faceplate prior to installation.
