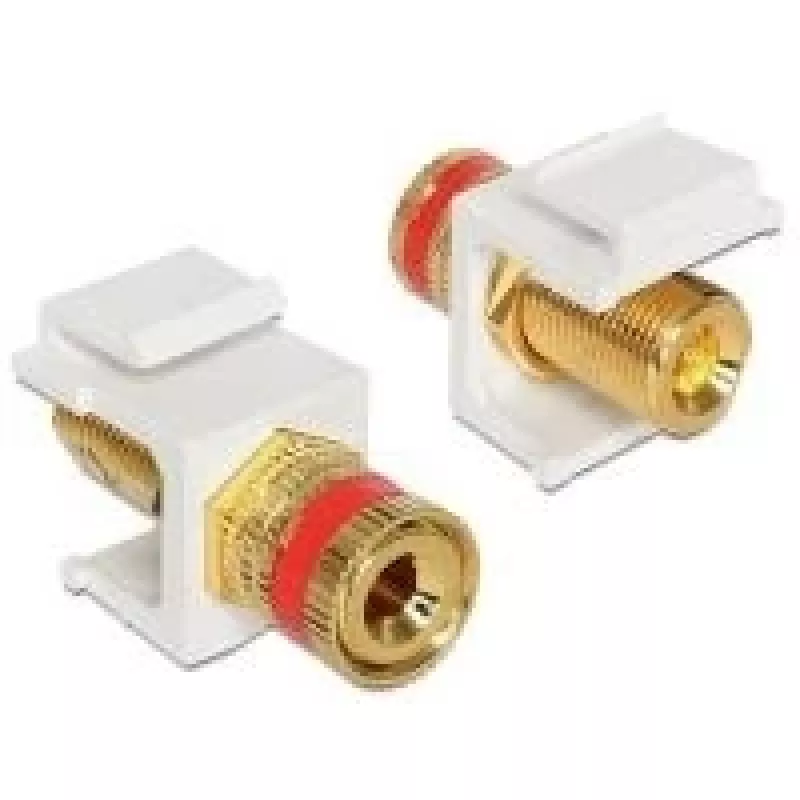

Keystone-module DeLOCK 86304

The Keystone Module DeLOCK 86304 is a compact connector module designed to extend speaker cables or similar audio connections. With standardised dimensions it snaps into keystone-compatible panels, faceplates or surface-mount boxes for a tidy and secure installation. The module is available in gold, red and white finishes and is intended for use in networking and AV setups where a modular, easily replaceable connector is required.

Advantages

The module's standard keystone form factor ensures compatibility with common keystone patch panels, face plates and surface-mount boxes. Its compact dimensions (16.3 mm × 28.8 mm × 22.3 mm) allow space-efficient installation. Available in multiple colours to match or identify connections, it provides a simple snap-in mounting for quick replacement or reconfiguration without tools.

Suitable for

• Extending speaker cables and similar audio connections
• Integration into keystone patch panels and faceplates
• Use in surface-mount boxes for wall or equipment installations
• Home and office AV or networking setups requiring modular connectors

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 86304
• EAN: 4043619863044
• Dimensions: 16.3 mm (W) × 28.8 mm (D) × 22.3 mm (H)
• Colours: gold, red, white
• Form factor: keystone module (snap-in mounting)

How to use

Insert the module into a compatible keystone opening in a patch panel, faceplate or surface-mount box until it snaps into place. Connect the speaker cable or audio conductor to the module's contacts according to the cable type and polarity required. To remove or replace the module, depress the retaining tabs and pull the module out of the keystone opening.

Recommendations

Use the DeLOCK 86304 module in keystone-compatible panels and housings to ensure a secure fit; verify cable polarity when connecting speaker wires and choose a colour variant to help identify individual lines in multi-cable installations.
