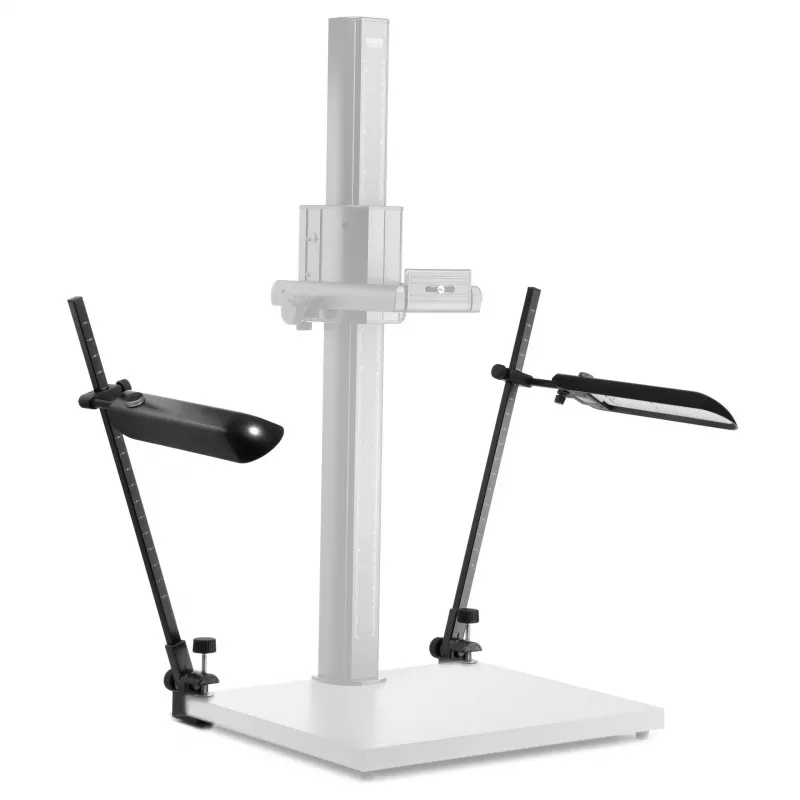

Kaiser LED-verlichtingseenheid voor reproductiestandaards RB 5020 DS2 5467

Professional LED lighting unit for copy stands, delivering flicker-free illumination with exceptional color accuracy. Two large SMD LED panels provide uniform, glare-free light, ideal for digitization, archiving, and product photography.

Advantages

High color rendering (CRI >96) and 5400 K daylight color temperature ensure true-to-life reproduction. Stepless dimming from 0-100% allows precise control of light intensity. Each panel can be adjusted independently, offering flexible lighting setups. Passive cooling guarantees silent operation, perfect for quiet studio environments.

Suitable for

• Digitization of documents, books, and artwork
• Product photography and catalog creation
• Archiving and preservation projects
• Professional studios and libraries

Key specifications

• Light source: SMD LED, 216 LEDs total (108 per panel)
• Color temperature: 5400 K, CRI >96
• Illuminance: 10000 lux per panel at 30 cm
• Power consumption: 48 W total (2 x 24 W)
• Dimming: 0-100% stepless, individual per panel
• Power supply: 100-240 V AC input, 24 V DC output
• Mounting: Adjustable arms for Kaiser RB 5000 series copy stands
• Housing: Metal, with glare-free diffusers
• Panel dimensions: approx. 450 x 250 x 50 mm each
• Cable length: approx. 2.5 m

Recommendations

For optimal results, position the panels symmetrically at a 45° angle to the subject. Use the independent dimming to balance lighting and reduce shadows. Compatible with Kaiser RB 5000 series copy stands for integrated setups.
